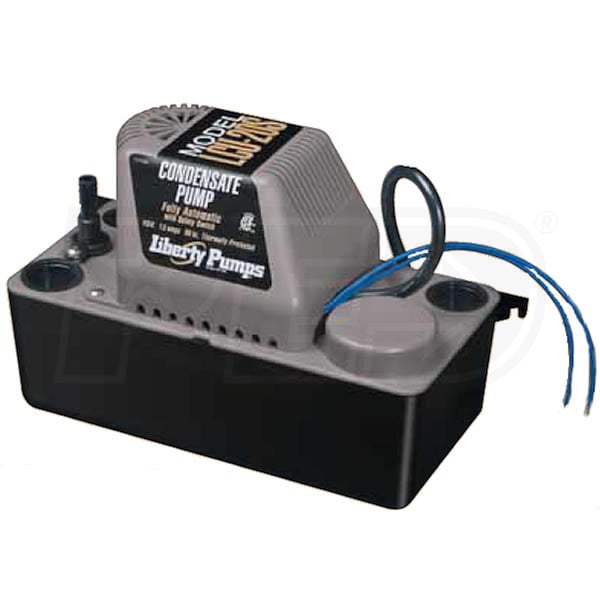

Liberty Pumps LCU-20ST - Automatic Condensate Pump w/ Safety Switch & Tubing (20' Lift)
Liberty Pumps LCU-20ST - Automatic Condensate Pump w/ Safety Switch & Tubing (20' Lift)
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features

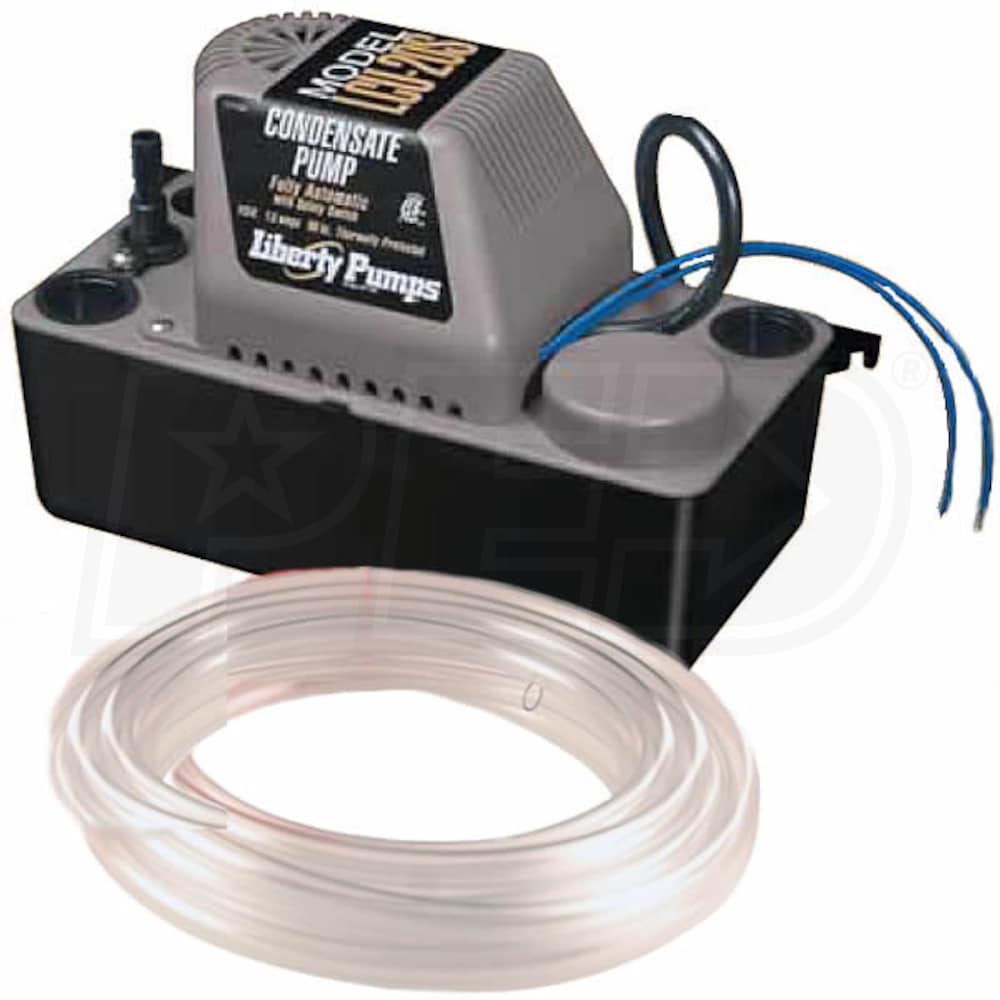

- Automatic Condensate Removal Pump w/ Discharge Tubing
- Pumps up to 20' vertically; Pump and tubing for quicker install
- 20' 3/8" Clear Poly Discharge Tubing
- Why hook your new pump to an old corroded discharge line
- Built-In Safety Switch
- Prevents overflow from a clogged discharge or pump failure
- Versatile Design
- Great for high efficiency furnaces, A/C equipment & dehumidifiers
- Thermally Protected 1/30 HP Motor
- Energy efficient 1.5A motor keep operating costs low
- 1/2 Gallon High-Impact ABS Tank
- Provides plenty of volume which prevents constant cycling
- (3) 1/2" Inlet Drain Holes & 3/8" O.D. Outlet
- Universal design for multiple applications
- Barbed and threaded discharge connection for ease of use
- Stainless Steel Shaft & Removable Check Valve
- Corrosion resistant design for easier maintenance & longer life
- 6' Power Cord
- Just the right length for HVAC applications
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
1.5
Pump
Gallons Per Minute
1.75 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
3/8"
Self Priming
Yes
Housing Material
Thermoplastic
Total Head Lift
20 Feet
Submersible
No
Engine
Horsepower
0.3 hp
Accessories
Float Switch
Yes
Overview
Weight
6 Pounds
Product Length
11.125 Inches
Product Width
5 Inches
Product Height
6.5 Inches
Consumer Warranty
3 Years
UPC
671812114133
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Condensate Removal Pump w/ Discharge Tubing
- Pumps up to 20' vertically; Pump and tubing for quicker install
- 20' 3/8" Clear Poly Discharge Tubing
- Why hook your new pump to an old corroded discharge line
- Built-In Safety Switch
- Prevents overflow from a clogged discharge or pump failure
- Versatile Design
- Great for high efficiency furnaces, A/C equipment & dehumidifiers
- Thermally Protected 1/30 HP Motor
- Energy efficient 1.5A motor keep operating costs low
- 1/2 Gallon High-Impact ABS Tank
- Provides plenty of volume which prevents constant cycling
- (3) 1/2" Inlet Drain Holes & 3/8" O.D. Outlet
- Universal design for multiple applications
- Barbed and threaded discharge connection for ease of use
- Stainless Steel Shaft & Removable Check Valve
- Corrosion resistant design for easier maintenance & longer life
- 6' Power Cord
- Just the right length for HVAC applications
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
1.5
Pump
Gallons Per Minute
1.75 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
3/8"
Self Priming
Yes
Housing Material
Thermoplastic
Total Head Lift
20 Feet
Submersible
No
Engine
Horsepower
0.3 hp
Accessories
Float Switch
Yes
Overview
Weight
6 Pounds
Product Length
11.125 Inches
Product Width
5 Inches
Product Height
6.5 Inches
Consumer Warranty
3 Years
UPC
671812114133
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
1.5
Pump
Gallons Per Minute
1.75 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
3/8"
Self Priming
Yes
Housing Material
Thermoplastic
Total Head Lift
20 Feet
Submersible
No
Engine
Horsepower
0.3 hp
Accessories
Float Switch
Yes
Overview
Weight
6 Pounds
Product Length
11.125 Inches
Product Width
5 Inches
Product Height
6.5 Inches
Consumer Warranty
3 Years
UPC
671812114133
