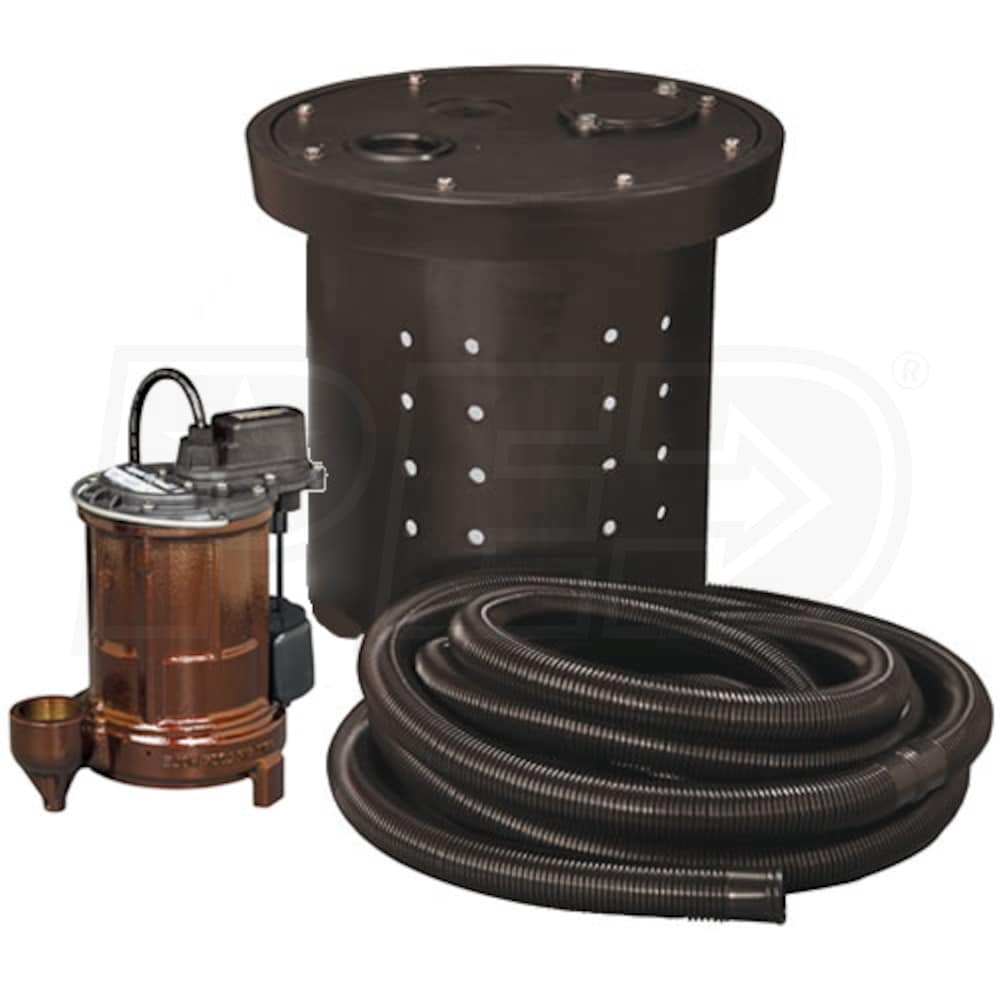

Liberty Pumps CSP-257 - 1/3 HP Cast Iron Crawl Space Sump Pump Kit

Liberty Pumps CSP-257 - 1/3 HP Cast Iron Crawl Space Sump Pump Kit
Model: CSP-257
$266.70
In-Stock
Ships Tuesday, May 29th
Free Shipping &
Tax-Free (Except IL)
In-Stock Free ShippingNo Sales Tax* (Except IL)$266.70Buy Now
In-Stock Free ShippingNo Sales Tax* (Except IL)$266.70Visit Site

(as of 06:47 CST - Details) Sales Tax Extra $261.80Visit Site
In-Stock
Ships Tuesday, May 29th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 23
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
3000
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
3000 Gallons
Switch Type
Vertical


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 1/3 HP Cast Iron Sump Pump Kit
  • Great for crawl spaces & low lying areas around foundations
  • Automatic Submersible 1/3 HP Cast Iron Sump Pump (257)
  • Rugged, energy efficient & thermally protected motor
  • Liberty's UNI-BODY Casting w/ Epoxy Powder Coat Finish
  • A solid, one-piece housing that eliminates lower motor seal
  • Magnetically Operated Vertical Float Switch
  • Provides automatic operation in sump pits as small as 10-inches
  • High-Temperature, Engineered Polymer Impeller
  • Vortex style design for superior solid handling
  • Non-Corrosive Stainless Steel Fasteners & Rotor Shaft
  • Increases the lifespan of the pump even in the harshest sump pits
  • Permanently lubricated bearings for extended pump life
  • Added Pump Features
  • High Capacity 1-1/2" Discharge & Quick-Disconnect 10' Power Cord
  • Also Includes:
  • 16.5" Wide x 15" Tall Perforated Poly Sump Basin
  • Inline Check Valve (Not Pictured)
  • 24' x 1-1/4" Flexible Discharge Hose
  • 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
16 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
GPH @ 20 feet
720
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Overview
Weight
30 Pounds
Product Length
15 Inches
Product Width
15 Inches
Product Height
16.5 Inches
Consumer Warranty
3 Years
UPC
671812119473
Style
Primary Sumps Pumps
GPH
3000
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
3000 Gallons
Switch Type
Vertical


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 1/3 HP Cast Iron Sump Pump Kit
  • Great for crawl spaces & low lying areas around foundations
  • Automatic Submersible 1/3 HP Cast Iron Sump Pump (257)
  • Rugged, energy efficient & thermally protected motor
  • Liberty's UNI-BODY Casting w/ Epoxy Powder Coat Finish
  • A solid, one-piece housing that eliminates lower motor seal
  • Magnetically Operated Vertical Float Switch
  • Provides automatic operation in sump pits as small as 10-inches
  • High-Temperature, Engineered Polymer Impeller
  • Vortex style design for superior solid handling
  • Non-Corrosive Stainless Steel Fasteners & Rotor Shaft
  • Increases the lifespan of the pump even in the harshest sump pits
  • Permanently lubricated bearings for extended pump life
  • Added Pump Features
  • High Capacity 1-1/2" Discharge & Quick-Disconnect 10' Power Cord
  • Also Includes:
  • 16.5" Wide x 15" Tall Perforated Poly Sump Basin
  • Inline Check Valve (Not Pictured)
  • 24' x 1-1/4" Flexible Discharge Hose
  • 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
16 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
GPH @ 20 feet
720
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Overview
Weight
30 Pounds
Product Length
15 Inches
Product Width
15 Inches
Product Height
16.5 Inches
Consumer Warranty
3 Years
UPC
671812119473
Product Specs
+
Specifications
Base
Min Sump Basin Size
16 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
GPH @ 20 feet
720
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Overview
Weight
30 Pounds
Product Length
15 Inches
Product Width
15 Inches
Product Height
16.5 Inches
Consumer Warranty
3 Years
UPC
671812119473
Reviews
(23)
+
Liberty Pumps CSP-257 Reviews & Ratings
100% of Reviewers Recommend This Product
Product Q&A
(2)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
It says there is an inline check valve not pictured. Is there an adapter to hook directly into the sump pump. Also, I would be using this for a window well and having the pump submerged. Would this pump be ok for that use?
Tara
from Pennsylvania
May 01, 2014
Answer
Thank you for your interest in Sump Pumps Direct. The Liberty model CSP257 only includes what is listed in the product specs, which is:

•16.5" Wide x 15" Tall Perforated Poly Sump Basin
•Inline Check Valve (Not Pictured)
•24' x 1-1/4" Flexible Discharge Hose

The actual connections to the pump, would be provided by you, the customer, just like any other sump pump that we sell. For best results, a 1-1/2” male threaded X 1-1/4” barbed hose adapter will thread into the pump discharge. The 24’ flexible hose will fit over the barbed fitting of the adapter and should be tightened down with a hose clamp.
+
I have a pedestal 10" diameter sump in a vacation home. The radon levels are marginal in the home. Would this pump kit csp-257 serve my needs for a submersible with hermetically sealed top???
John R
from Connecticut
November 30, 2012
Answer
The CSP-257 cover does have a gasket for sealing however there is not a 3” vent for the radon. You can remove the “blank” flange and add a K001392 (3” vent flange kit) which would be a special order item. You then would have to seal around the floor and basin with silicone, then mount the cover.
