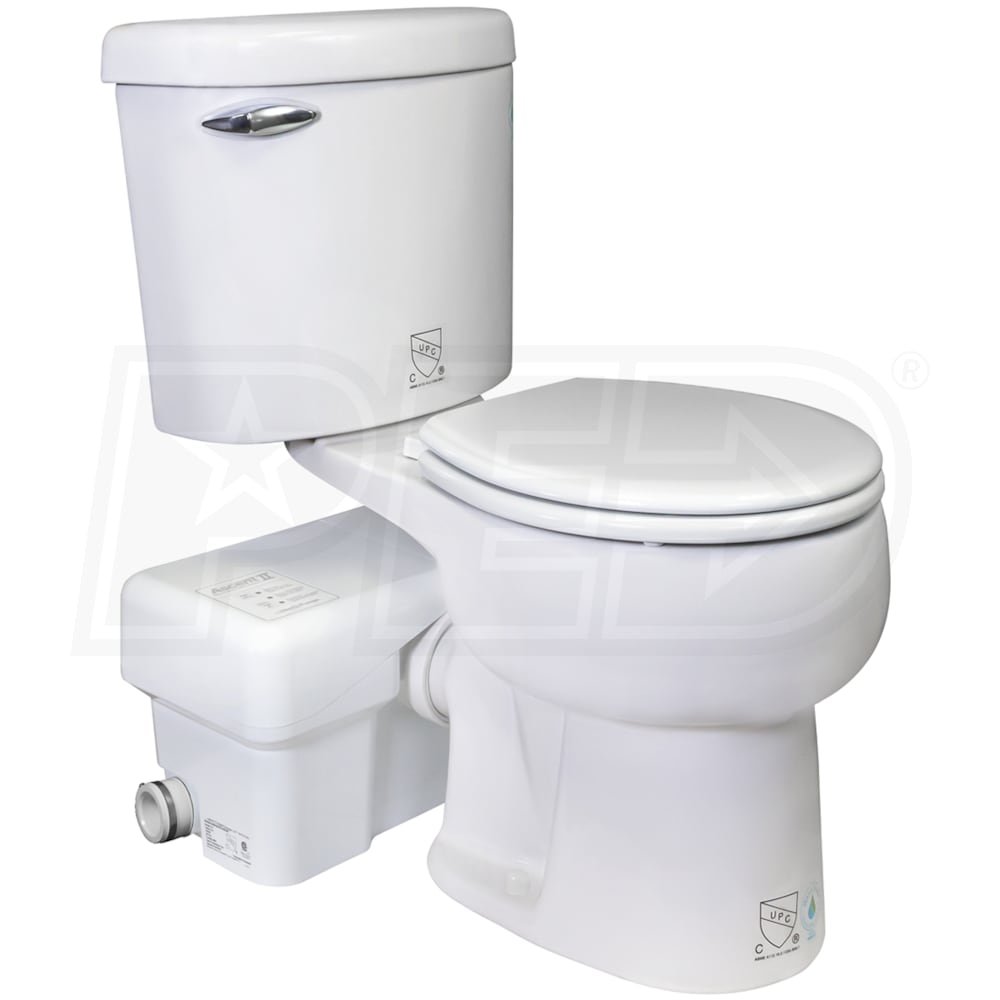

Liberty Pumps ASCENTII-RSW - 1/2 HP Complete Toilet Macerator System (Round Bowl - White)
Model: ASCENTII-RSW
+
Share This Product
-
Product Description
-
5Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
2400
Gallons
Switch Type
Style
Sewage Pump
GPH
2400 Gallons
Switch Type
Electronic
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Liberty Ascent II Macerating Toilet System (Round Bowl)
- Complete system for easier bathroom addition or remodeling
- Versatile Design
- Pumps wastewater *up to 25' lift and 150' horizontally
- Accepts additional tub/shower/sink connections for a complete bathroom
- 1/2 HP Macerator Pump w/ RazorCut™ Technology
- Powerful and quiet stainless steel blades provide exceptional cutting
- Advance run technology starts blades before debris enters cutter basket
- IST™ Intelligent Solid State Switch Technology
- Sensor based design eliminates mechanical float switches
- Easy-to-read LED display; Power On, Alarm Condition & Low Alarm Battery
- Built-In Alarm w/ 9V Battery Backup
- Plus a push-to-silence switch for easier operation
- QuickFlip™ Discharge & Vent Connectors
- Allows for horizontal or vertical pipe connections
- 1" Discharge w/ integral check valve (can be reduced to 3/4"); 1-1/2" Vent
- Contoured Tank Design w/ Auxiliary Inlets On Each Side
- Makes it easy to add a sink and/or shower; Accepts 1-1/2" or 2" pipe
- Allows for wall molding to run behind macerator for a finished look
- CleanConnect™ Seal
- No more accordion style couplers/hose clamps; Provides a clean, professional install
- Removable Access Cover & Cord Management System
- Located on top cover for easy access without the need for any tools
- Keeps extra power cord hidden under cover for a professional finish
- Round, ADA Compliant White Toilet Bowl
- HET (High Efficient Toilet) 1.28 gpf; Improved flush design for one-flush operation
- Insulated tank prevents sweating in extreme climates
- Installed flush valve kit and includes toilet seat
- *Please See Spec Sheet For Additional System Information
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
8 Feet
Pump
Handles Solids
Yes
Total Head Lift
36 Feet
Float Type
Electronic
GPH @ 0 feet
2400
GPH @ 5 feet
2250
GPH @ 10 feet
1980
GPH @ 15 feet
1620
GPH @ 20 feet
1380
Built-in check Valve
Yes
Engine
Horsepower
.5 hp
Overview
Weight
115 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
671812118728
Style
GPH
2400
Gallons
Switch Type
Style
Sewage Pump
GPH
2400 Gallons
Switch Type
Electronic
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Liberty Ascent II Macerating Toilet System (Round Bowl)
- Complete system for easier bathroom addition or remodeling
- Versatile Design
- Pumps wastewater *up to 25' lift and 150' horizontally
- Accepts additional tub/shower/sink connections for a complete bathroom
- 1/2 HP Macerator Pump w/ RazorCut™ Technology
- Powerful and quiet stainless steel blades provide exceptional cutting
- Advance run technology starts blades before debris enters cutter basket
- IST™ Intelligent Solid State Switch Technology
- Sensor based design eliminates mechanical float switches
- Easy-to-read LED display; Power On, Alarm Condition & Low Alarm Battery
- Built-In Alarm w/ 9V Battery Backup
- Plus a push-to-silence switch for easier operation
- QuickFlip™ Discharge & Vent Connectors
- Allows for horizontal or vertical pipe connections
- 1" Discharge w/ integral check valve (can be reduced to 3/4"); 1-1/2" Vent
- Contoured Tank Design w/ Auxiliary Inlets On Each Side
- Makes it easy to add a sink and/or shower; Accepts 1-1/2" or 2" pipe
- Allows for wall molding to run behind macerator for a finished look
- CleanConnect™ Seal
- No more accordion style couplers/hose clamps; Provides a clean, professional install
- Removable Access Cover & Cord Management System
- Located on top cover for easy access without the need for any tools
- Keeps extra power cord hidden under cover for a professional finish
- Round, ADA Compliant White Toilet Bowl
- HET (High Efficient Toilet) 1.28 gpf; Improved flush design for one-flush operation
- Insulated tank prevents sweating in extreme climates
- Installed flush valve kit and includes toilet seat
- *Please See Spec Sheet For Additional System Information
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
8 Feet
Pump
Handles Solids
Yes
Total Head Lift
36 Feet
Float Type
Electronic
GPH @ 0 feet
2400
GPH @ 5 feet
2250
GPH @ 10 feet
1980
GPH @ 15 feet
1620
GPH @ 20 feet
1380
Built-in check Valve
Yes
Engine
Horsepower
.5 hp
Overview
Weight
115 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
671812118728
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
8 Feet
Pump
Handles Solids
Yes
Total Head Lift
36 Feet
Float Type
Electronic
GPH @ 0 feet
2400
GPH @ 5 feet
2250
GPH @ 10 feet
1980
GPH @ 15 feet
1620
GPH @ 20 feet
1380
Built-in check Valve
Yes
Engine
Horsepower
.5 hp
Overview
Weight
115 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
671812118728
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
Would I be able to drain my shower and sink into the pump section?
allen
from New Hampshire
September 29, 2020
Answer
Yes, there is one inlet on each side of the macerator unit for the sink and the shower to drain into.
