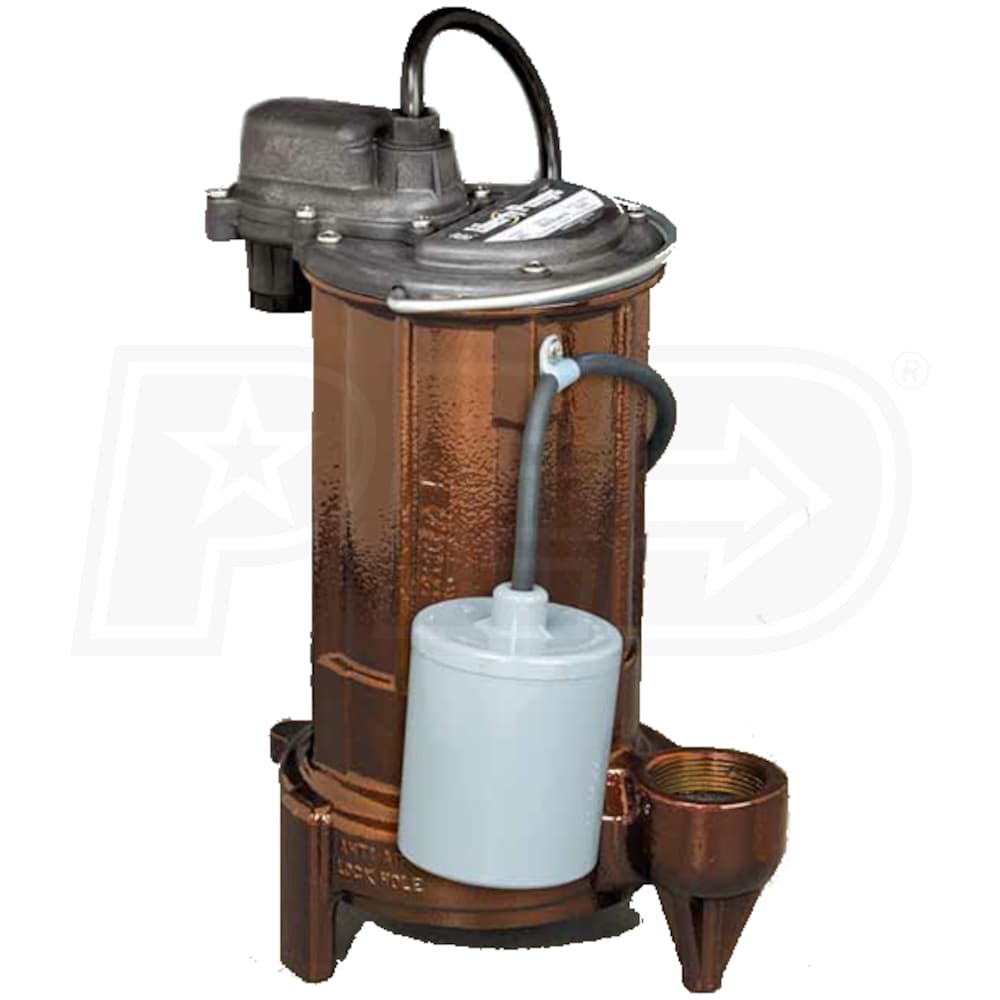

Liberty Pumps 293HV - 3/4 HP Cast Iron Submersible Sump / Effluent Pump w/ Piggyback Tether Float (208-230V)

Model:

293HV

Write A Review
$450.75
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Liberty Pumps 293HV - 3/4 HP Cast Iron Submersible Sump / Effluent Pump w/ Piggyback Tether Float (208-230V)
Liberty Pumps 293HV - 3/4 HP Cast Iron Submersible Sump / Effluent Pump w/ Piggyback Tether Float (208-230V)
Model: 293HV
$450.75
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

5040 Gallons

Switch Type

Piggy-Back Tether



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • ***208-230 Volt***
  • Automatic Submersible Cast Iron Sump Pump
  • For high head (up to 30') and/or high output applications
  • Quick-Disconnect Wide Angle Piggyback Tether Float Switch
  • Provides automatic operation in sump pits as small as 14-inches
  • Rugged, Energy Efficient & Thermally Protected 3/4 HP Motor (208-230V)
  • Hermetically sealed, permanently lubricated design
  • High-Temperature, Engineered Polymer Impeller
  • Vortex style design for superior solid handling
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 10' Standard Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest sump pits
  • 416 Stainless Steel Rotor Shaft
  • With permanently lubricated bearings for extended pump life
  • Removable Stainless Steel Bottom Screen
  • Keeps larger debris from damaging the pump
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

293HV
specs product image PID-80173
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
208/230 Volt
Running Amps
5.3
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch

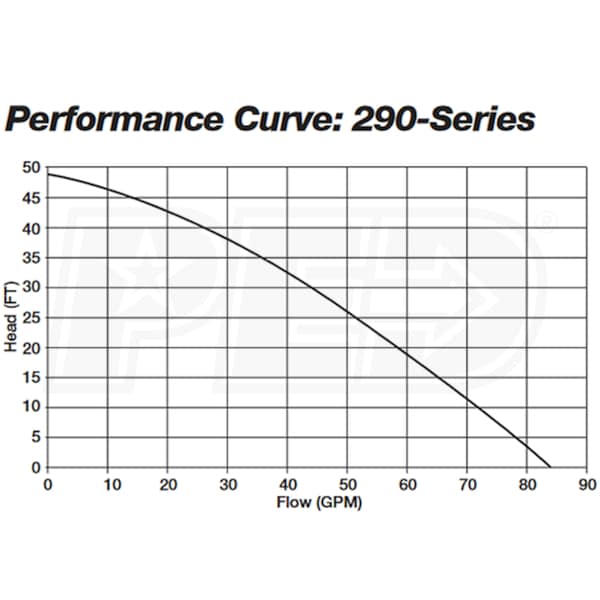

GPH @ 0 feet
5040
GPH @ 5 feet
4680
GPH @ 10 feet
4320
GPH @ 15 feet
3900
GPH @ 20 feet
3540
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
13
Float Off
7
Manual Override
Yes
Engine
Horsepower
.75 hp
Overview
Product Category
Sump Pump
Weight
31 Pounds
Consumer Warranty
3 Years
Product Length
10 Inches
Product Height
13 Inches
UPC
671812121018
