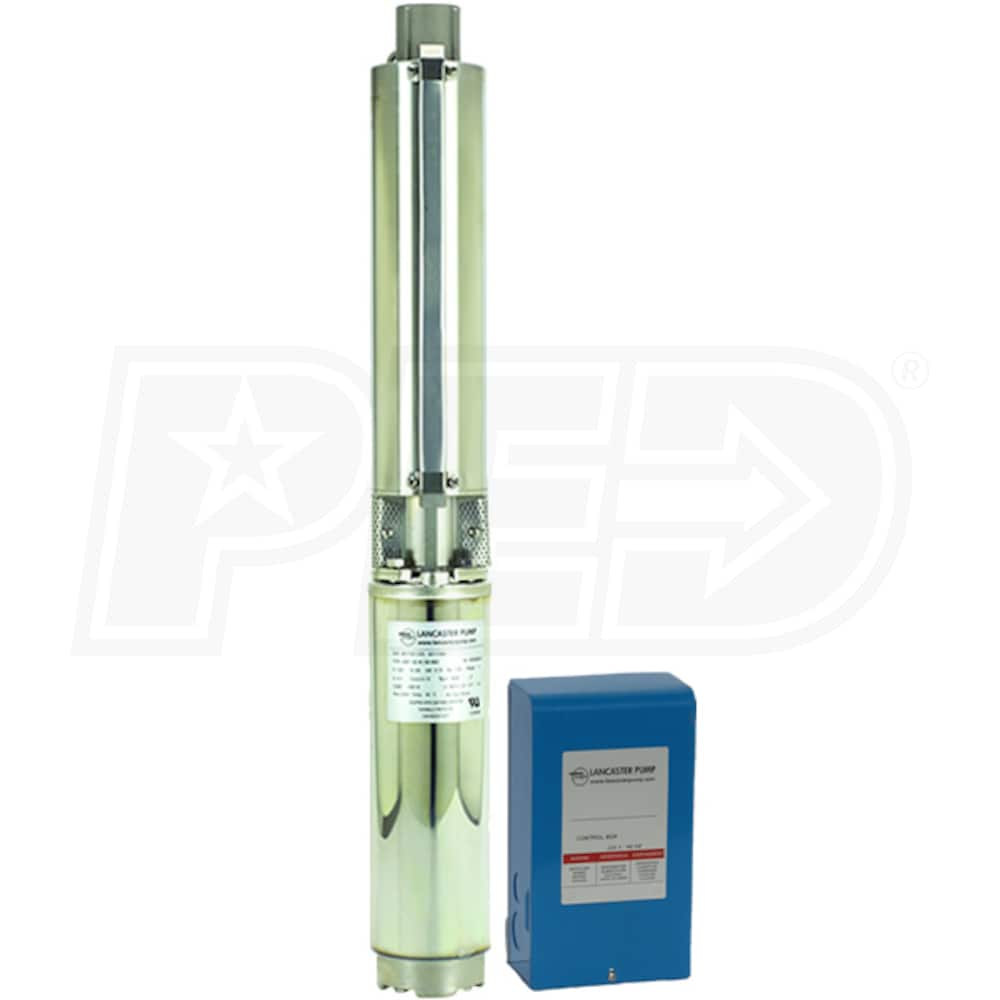

Lancaster Pump 3LST7510-2 - 3/4 HP 10 GPM Deep Well Submersible Pump w/ SS Disc & Motor Sup. (3-W 230V) & CB

Model:

2-3LST7510-2

Write a Review
$625.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping Details
*We currently CANNOT ship this product to California or any destination outside of the United States

Free Shipping$625.00Buy Now
Free Shipping$625.00Visit Site
Lancaster Pump 3LST7510-2 - 3/4 HP 10 GPM Deep Well Submersible Pump w/ SS Disc & Motor Sup. (3-W 230V) & CB
Lancaster Pump 3LST7510-2 - 3/4 HP 10 GPM Deep Well Submersible Pump w/ SS Disc & Motor Sup. (3-W 230V) & CB
Model: 2-3LST7510-2
$625.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Inlet Size

N/A

Style

Deep Well

GPM

10 Gallons

  • SURVIVOR T-Series 10 GPM 4" Sub. Well Pump (3-Wire 230V)
  • For 4" I.D. or + Wells (<320'); 3-Wire Starting - Control Box Included
  • 3/4 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
  • Continuous duty rated, Induction run design w/ built-in starter
  • Stainless Steel Motor Casing & Splined Shaft End
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25" Stainless Steel Discharge Head, Motor & Cable Support
  • Superior strength and corrosion resistance for maximum life
  • Field replaceable fluted internal check valve & molded jug handles
  • Balanced TeflonŽ Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy wall, High Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignmen; wouldn't snap off during install
  • Stainless Steel Hex Shaft w/ Slotted End For Test Turning
  • Polyurethane bearing (top/end motor shaft) for wear resistance
  • 3/4 HP HYDRO-FORCE Quick-Disconnect Control Box (230V)
  • Includes 230V relay, start capacitor & 2 ground/cable terminals
  • NEMR 3R Outdoor rated, painted steel enclosure, QD components
  • 3-Year Limited Warranty

Specifications

2-3LST7510-2
Motor
Voltage
240 Volt
Running Amps
9.3
Wire
3-Wire
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4"
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
137
Total Head Lift
320 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.75 hp
Accessories
Control Box
Yes
Overview
Weight
29 Pounds
Consumer Warranty
3 Years
Product Length
25.63 Inches
Product Width
3.81 Inches
