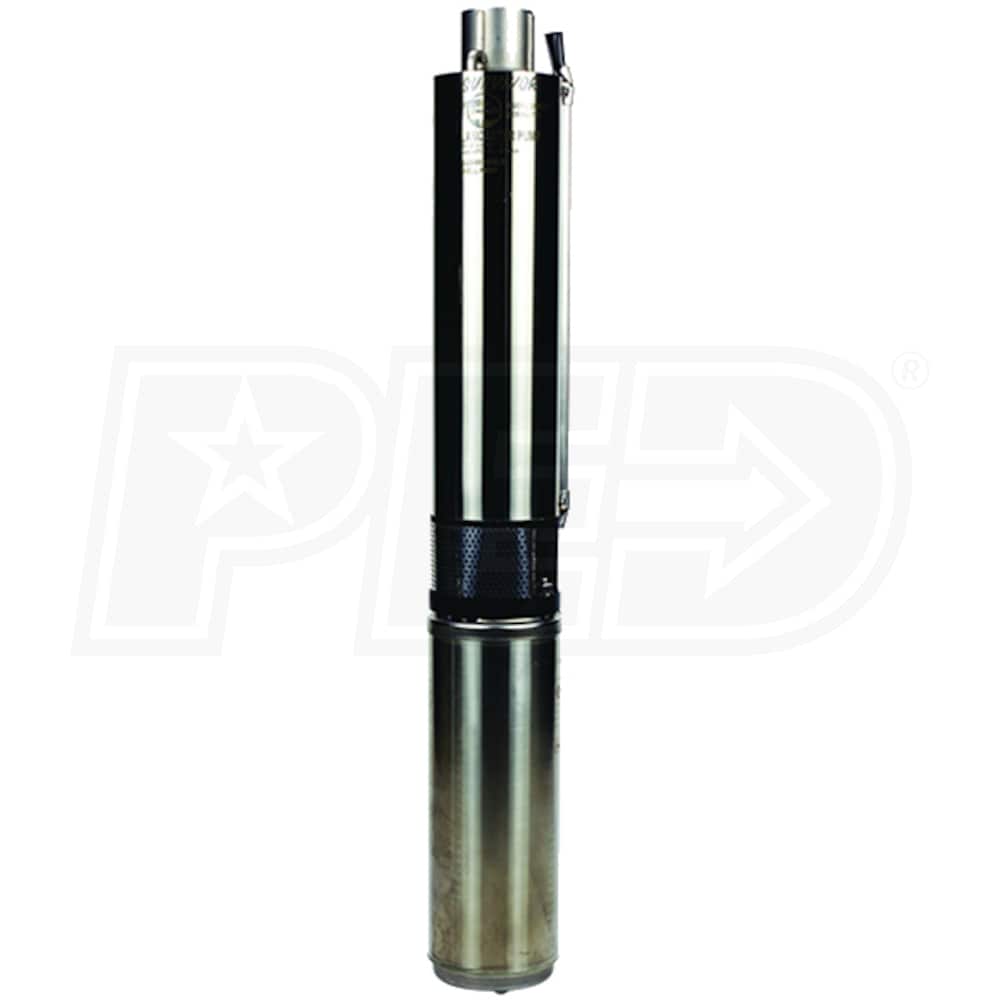

Lancaster Pump 2LSPT5007-2 - 1/2 HP 10 GPM Deep Well Submersible Pump w/ SS Discharge (2-Wire 230V)

Lancaster Pump 2LSPT5007-2 - 1/2 HP 10 GPM Deep Well Submersible Pump w/ SS Discharge (2-Wire 230V)
Model: 2-2LSPT5007-2
$385.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$385.00Buy Now
Free ShippingNo Sales Tax* (Except IL)$385.00Visit Site
No Sales Tax* (Except IL)$385.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 16
    Reviews
  • 4
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
N/A
Style
Deep Well
GPM
10
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
10 Gallons
Features
Features
  • SURVIVOR T-Series 10 GPM 4" Sub. Well Pump (2-Wire 230V)
  • For 4" I.D. or + Wells (<220'); Two-Wire Starting - No Control Box Req
  • 1/2 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
  • Continuous duty rated, Induction run design w/ built-in starter
  • Stainless Steel Motor Casing & Glass-filled Noryl« Motor Support
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25" Stainless Steel Discharge Head & Noryl« Motor Support
  • Superior strength and corrosion resistance for maximum life
  • Field replaceable fluted internal check valve & molded jug handles
  • Balanced Teflon« Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy wall, High Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignmen; wouldn't snap off during install
  • Stainless Steel Hex Shaft w/ Slotted End For Test Turning
  • Polyurethane bearing (top/end motor shaft) for wear resistance
  • 3-Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
6.4
Wire
2-Wire
Engine
Continuous Operation
Yes
Horsepower
0.5 hp
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4"
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
220 Feet
Maximum PSI
94
Submersible
Yes
Overview
Weight
25.1 Pounds
Product Length
23.47 Inches
Product Width
3.81 Inches
Consumer Warranty
3 Years

Inlet Size
N/A
Style
Deep Well
GPM
10
Gallons
Inlet Size
N/A
Style
Deep Well
GPM
10 Gallons
Features
Features
  • SURVIVOR T-Series 10 GPM 4" Sub. Well Pump (2-Wire 230V)
  • For 4" I.D. or + Wells (<220'); Two-Wire Starting - No Control Box Req
  • 1/2 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
  • Continuous duty rated, Induction run design w/ built-in starter
  • Stainless Steel Motor Casing & Glass-filled Noryl« Motor Support
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25" Stainless Steel Discharge Head & Noryl« Motor Support
  • Superior strength and corrosion resistance for maximum life
  • Field replaceable fluted internal check valve & molded jug handles
  • Balanced Teflon« Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy wall, High Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignmen; wouldn't snap off during install
  • Stainless Steel Hex Shaft w/ Slotted End For Test Turning
  • Polyurethane bearing (top/end motor shaft) for wear resistance
  • 3-Year Limited Warranty
Specifications
Motor
Voltage
240 Volt
Running Amps
6.4
Wire
2-Wire
Engine
Continuous Operation
Yes
Horsepower
0.5 hp
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4"
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
220 Feet
Maximum PSI
94
Submersible
Yes
Overview
Weight
25.1 Pounds
Product Length
23.47 Inches
Product Width
3.81 Inches
Consumer Warranty
3 Years
Product Specs
+
Specifications
Motor
Voltage
240 Volt
Running Amps
6.4
Wire
2-Wire
Engine
Continuous Operation
Yes
Horsepower
0.5 hp
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4"
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Total Head Lift
220 Feet
Maximum PSI
94
Submersible
Yes
Overview
Weight
25.1 Pounds
Product Length
23.47 Inches
Product Width
3.81 Inches
Consumer Warranty
3 Years
Reviews
(16)
+
Lancaster Pump 2-2LSPT5007-2 Reviews & Ratings
100% of Reviewers Recommend This Product
Product Q&A
(4)
+
Search Product Q&A's Answered by Jim, the Water Pump Expert
icon-social-fb1
+
Where is the motor manufactured?
John B.
from Pennsylvania
April 19, 2018
Answer
Most, if not all Lancaster deep well pumps listed on our website have the Hydro-Force motor which is built in Italy. They do also offer most of them with a Franklin motor which would be available as a special order.
+
What size wire is required for this pump?
Warren
from New York
March 22, 2017
Answer
These pumps include about 12"-15" wire leads off the pump. They do NOT include a waterproof splice kit, so this is something you would need to purchase locally. Gauge is determined based on pump HP, voltage, and total length of wire required. This will tell you, based on National Electric Code and your local code, what gauge wire you will need. Per the Installation Instructions: "determine the depth of the pump in the well in order to purchase electrical cable of sufficient gauge and length to reach from pump motor to electrical power supply. Properly sized copper wire from service to motor will avoid over-heating wire and excessive voltage drop at the motor."
+
Do I need to buy a check valve or anything else with this pump?
Jim
from Connecticut
March 03, 2017
Answer
These pumps do include a built-in check valve. If however, your total vertical head lift exceeds 100 feet, you would need to install an additional check valve at every 100 foot level. You can also check out the Pump Manual for additional accessories that you may need to purchase. Please note that we only provide the pump. Any additional accessories needed for installation should be accessible at your local hardware or big box store.
+
How do you hook up the electrical wires on the two wire 230V pump with no control box? My pump man does fine when there is a control box but seems a little confused when there isn't one. He is more a handyman and not a professional pump person. Thank you.
Clyde
from Texas
July 01, 2016
Answer
All wiring diagrams are listed in the pump installation manuals. Additionally, all 3-wire pumps (actually, 4-wire with ground) DO require a control box whereas the 2-wire (actually 3-wire with ground), do NOT require a control box.
I would suggest checking your pump manual or contacting the manufacturer of your pump for exact directions.
