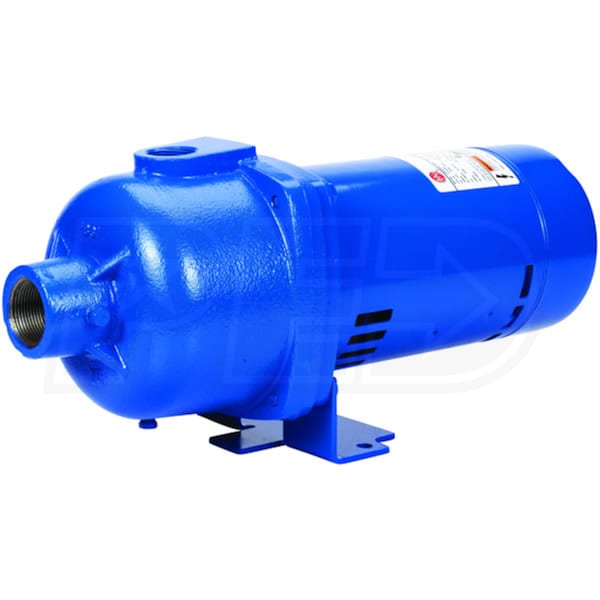

Lancaster Pump SKS50 - 10.2 GPM 1/2 HP Cast Iron Shallow Well Jet Pump
Model: SKS50
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
1-1/4"
Style

GPM
10.2
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
10.2 Gallons
Features
Features
- Keystone 1/2 HP Single-Stage Shallow Well Jet Pump
- Provides optimal pumping at lifts/depths up to 25'
- Heavy Duty Cast Iron Construction
- Gets you much longer life compared to thermoplastic pumps
- 115/230V Dual Voltage Motor
- Voltage selector switch allows for easy right under motor cover
- 1/2 HP Square Flange Motor w/ Capacitor Start
- Capacitor provides extra torque for easier motor starting
- Thermal & Overload Protection w/ Automatic Reset
- Prevents significant damage to the motor during operation
- Thermoplastic Impeller, Diffuser & In-Line Nozzle/Venturi Valve
- Engineered for increased overall output and efficiency
- Stainless Threaded Motor Shaft & Upper/Lower Ball Bearings
- Minimizes corrosion and provides smoother and cooler operation
- 1" FNPT Discharge
- Easily connect this pump to most residential plumbing apps.
- Built-In Drain Plug
- Allows for easy servicing and winterizing
- Note* Includes 20/40 Pressure Switch (Not Shown)
- 3-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
10.2 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
64
Submersible
No
Engine
Oil-Cooled
No
Horsepower
0.5 hp
Overview
Assembly Required
Yes
Weight
34 Pounds
Consumer Warranty
3 Years
Product Length
17.31 Inches
Product Width
6.75 Inches
Product Height
8.2 Inches
Additional Model Numbers
1-SKS50, SKS50
Inlet Size
1-1/4"
Style

GPM
10.2
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
10.2 Gallons
