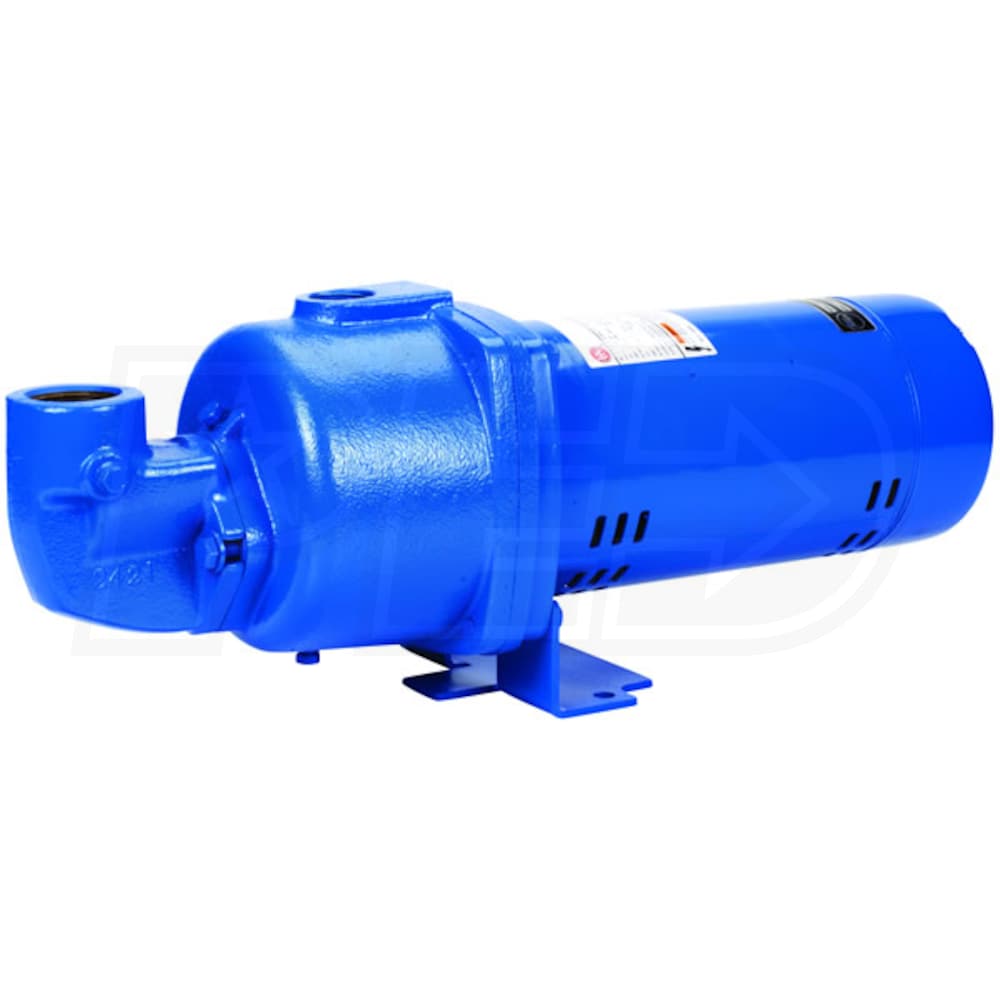

Lancaster Pump SKS100 - 24.7 GPM 1 HP Cast Iron Shallow Well Jet Pump

Lancaster Pump SKS100 - 24.7 GPM 1 HP Cast Iron Shallow Well Jet Pump
Model: 1-SKS100
$433.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$433.00Buy Now
Free ShippingNo Sales Tax* (Except IL)$433.00Visit Site
No Sales Tax* (Except IL)$433.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1-1/4"
Style
GPM
24.7
Gallons
Inlet Size
1-1/4"
GPM
24.7 Gallons
Features
Features
  • Keystone 1 HP Single-Stage Shallow Well Jet Pump
  • Provides optimal pumping at lifts/depths up to 25'
  • Heavy Duty Cast Iron Construction
  • Gets you much longer life compared to thermoplastic pumps
  • 115/230-Volt Dual Voltage Motor
  • Voltage selector switch allows for easy right under motor cover
  • 1 HP Square Flange Motor w/ Capacitor Start
  • Capacitor provides extra torque for easier motor starting
  • Thermal & Overload Protection w/ Automatic Reset
  • Prevents significant damage to the motor during operation
  • Thermoplastic Impeller, Diffuser & In-Line Nozzle/Venturi Valve
  • Engineered for increased overall output and efficiency
  • Stainless Threaded Motor Shaft & Upper/Lower Ball Bearings
  • Minimizes corrosion and provides smoother and cooler operation
  • 1" FNPT Discharge
  • Easily connect this pump to most residential plumbing apps.
  • Built-In Drain Plug
  • Allows for easy servicing and winterizing
  • Note* Includes 20/40 Pressure Switch (Not Shown)
  • 3-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Engine
Oil-Cooled
No
Horsepower
1 hp
Pump
Gallons Per Minute
24.7 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
58
Submersible
No
Overview
Assembly Required
Yes
Weight
43 Pounds
Product Length
21.25 Inches
Product Width
6.75 Inches
Product Height
8.2 Inches
Consumer Warranty
3 Years

Inlet Size
1-1/4"
Style
GPM
24.7
Gallons
Inlet Size
1-1/4"
GPM
24.7 Gallons
Features
Features
  • Keystone 1 HP Single-Stage Shallow Well Jet Pump
  • Provides optimal pumping at lifts/depths up to 25'
  • Heavy Duty Cast Iron Construction
  • Gets you much longer life compared to thermoplastic pumps
  • 115/230-Volt Dual Voltage Motor
  • Voltage selector switch allows for easy right under motor cover
  • 1 HP Square Flange Motor w/ Capacitor Start
  • Capacitor provides extra torque for easier motor starting
  • Thermal & Overload Protection w/ Automatic Reset
  • Prevents significant damage to the motor during operation
  • Thermoplastic Impeller, Diffuser & In-Line Nozzle/Venturi Valve
  • Engineered for increased overall output and efficiency
  • Stainless Threaded Motor Shaft & Upper/Lower Ball Bearings
  • Minimizes corrosion and provides smoother and cooler operation
  • 1" FNPT Discharge
  • Easily connect this pump to most residential plumbing apps.
  • Built-In Drain Plug
  • Allows for easy servicing and winterizing
  • Note* Includes 20/40 Pressure Switch (Not Shown)
  • 3-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Engine
Oil-Cooled
No
Horsepower
1 hp
Pump
Gallons Per Minute
24.7 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
58
Submersible
No
Overview
Assembly Required
Yes
Weight
43 Pounds
Product Length
21.25 Inches
Product Width
6.75 Inches
Product Height
8.2 Inches
Consumer Warranty
3 Years
Product Specs
+
Specifications
Motor
Voltage
120/240 Volt
Engine
Oil-Cooled
No
Horsepower
1 hp
Pump
Gallons Per Minute
24.7 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
1"
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
58
Submersible
No
Overview
Assembly Required
Yes
Weight
43 Pounds
Product Length
21.25 Inches
Product Width
6.75 Inches
Product Height
8.2 Inches
Consumer Warranty
3 Years
