Features
Style
Finish Cut
Surface Area
Office Building, Farm, or Parks
Terrain
Hilly
Width
40 Cutting Inches
Engine
Briggs & Stratton
- Make Short Work Of Large Parcels Of Property
- Provides an excellent manicured lawn at high mowing speeds
- Recommended mowing speed of 6 to 8 mph
- Can trail directly behind the tow vehicle or trail to the side
- Tow with your tractor, zero turn, ATV or other utility vehicle
- 10.5 HP Briggs And Stratton Powerbuilt 4-Cycle OHV Engine
- Splash style lubrication system and recoil start
- 2.8 quart fuel tank which provides about 1 hour run time
- 40" Side Discharge Cutting Deck
- 11-gauge (.120") fabricated (welded) steel design
- Deep deck design and two 20-inch blades which are inline

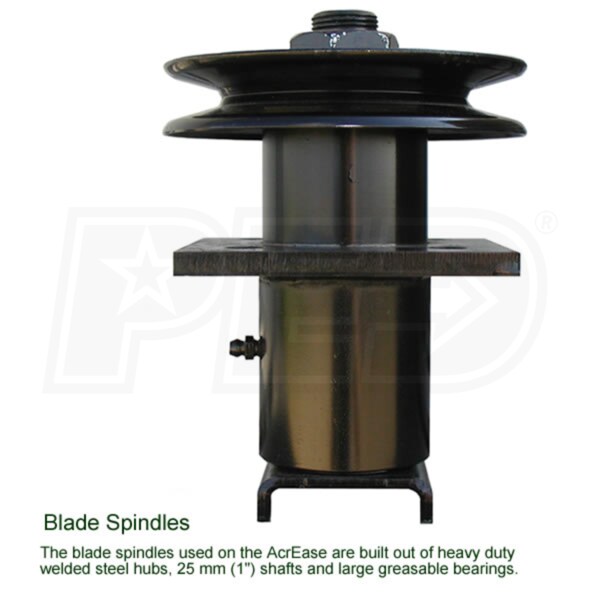

- Heavy-duty welded steel spindles with large greasable bearings
- 3 anti-scalp wheels (2 in front; 1 in the rear)

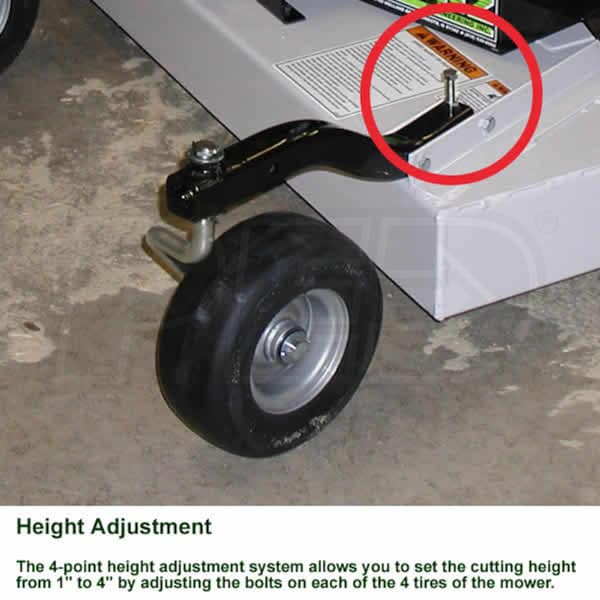

- 4-point height adjust system with cutting height range of 1" - 4"
- Low Profile Design
- Makes it very easy to mow under low branch trees

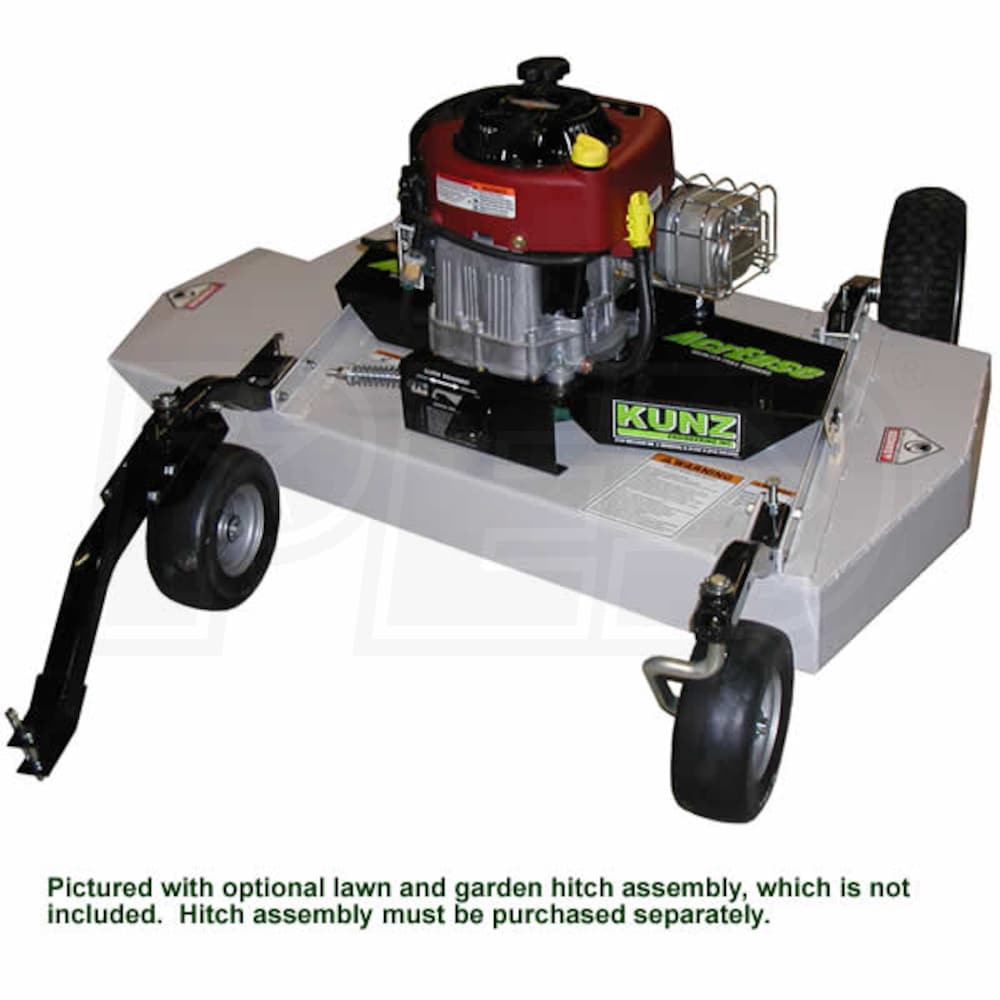

- Hitch Assembly Is NOT Included
- See "Accessories" tab for hitch assembly options
- Order #900084 for an ATV tongue and hitch assembly
- Order #L&G Finish" for a riding lawn mower hitch assembly
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
H40B
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Engine Cycle
4-Cycle
HP
10.5 HP
CC
344 CCs
Fuel Tank Size
0.68 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
No
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
90 Days
Overview
Weight
235 Pounds
Consumer Warranty
1 Year
Product Length
52.0 Inches
Product Width
51.5 Inches
Product Height
24.0 Inches
Additional Model Numbers
003729, H40B
Deck
Cutting Options
Side-Discharge
Deck Material
11-Gauge
Deck Construction
Welded
Spindle Material
Steel
Blades
2 Blades
Deck Positions
Infinite Positions
Cutting Width
40 Inches
Cutting Height
1.0-4.0 Inches
Accessories
Rear Bagger
No
Engine Guard
No
Hour Meter
No
Arm Rests
No
Front Bumper
No
Trailer Hitch
Sold Separately
Mulcher Kit
No
Headlights
No
Wheels
Front Tire Size
9 x 3.5 Inch
