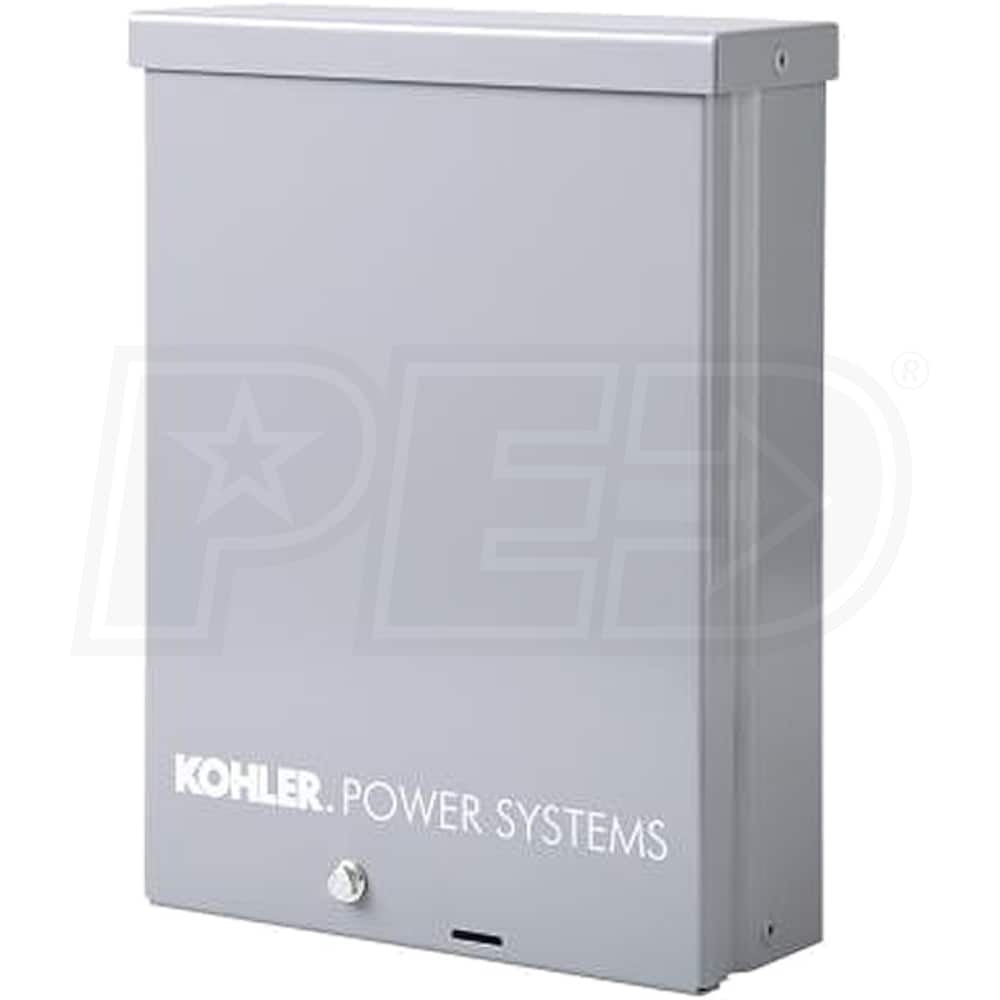

Kohler Programmable Interface Module (PIM)

Kohler Programmable Interface Module (PIM)
Model: GM81529-KP1
$200.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Tax-Free (Except IL)
No Sales Tax* (Except IL)$200.00Buy Now
No Sales Tax* (Except IL)$200.00Visit Site
No Sales Tax* (Except IL)$200.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Programmable Interface Module (PIM)
  • Allows Kohler gens to provide "smart home" capabilities w/ OnCue
  • Designed for use w/ OnCue System (Sold Separately)
  • Provides 2 Input Connections & 6 Outputs
  • Increases the versatility of your generator set
  • Versatile Design To Provide Alerts
  • Run, common fault, & not in auto outputs can be used
  • Relays have normally open or normally closed connections
  • NEMA 3R Aluminum Enclosure
  • Allows indoor or outdoor installation
  • Remote Power Management w/ OnCue
  • Customers can control those items connected to the PIM
  • Prepare the property for arrival or protect it when a storm hits
  • Remotely Monitor or Receive Email Alerts For Changes To Inputs
  • Such as security systems, fire or gas alarms, water alarms, etc.
  • Added Features
  • Can be used directly up to 10 amps or drive higher current relays
  • Inputs/outputs can be labeled w/ text for ease of use
  • Compatibility - Generator Sets w/ RDC2 or DC2 controller
  • 14RESA and 14RESAL, 20RESA and 20RESAL & 38/48RCL
Specifications
Product Specs
Frequency
60 Hertz
Overview
Weight
6 Pounds
Product Length
12.1 Inches
Product Width
9.1 Inches
Product Height
3.3 Inches
UPC
650531159885
Features
Features
  • Programmable Interface Module (PIM)
  • Allows Kohler gens to provide "smart home" capabilities w/ OnCue
  • Designed for use w/ OnCue System (Sold Separately)
  • Provides 2 Input Connections & 6 Outputs
  • Increases the versatility of your generator set
  • Versatile Design To Provide Alerts
  • Run, common fault, & not in auto outputs can be used
  • Relays have normally open or normally closed connections
  • NEMA 3R Aluminum Enclosure
  • Allows indoor or outdoor installation
  • Remote Power Management w/ OnCue
  • Customers can control those items connected to the PIM
  • Prepare the property for arrival or protect it when a storm hits
  • Remotely Monitor or Receive Email Alerts For Changes To Inputs
  • Such as security systems, fire or gas alarms, water alarms, etc.
  • Added Features
  • Can be used directly up to 10 amps or drive higher current relays
  • Inputs/outputs can be labeled w/ text for ease of use
  • Compatibility - Generator Sets w/ RDC2 or DC2 controller
  • 14RESA and 14RESAL, 20RESA and 20RESAL & 38/48RCL
Specifications
Product Specs
Frequency
60 Hertz
Overview
Weight
6 Pounds
Product Length
12.1 Inches
Product Width
9.1 Inches
Product Height
3.3 Inches
UPC
650531159885
Product Specs
+
Specifications
Product Specs
Frequency
60 Hertz
Overview
Weight
6 Pounds
Product Length
12.1 Inches
Product Width
9.1 Inches
Product Height
3.3 Inches
UPC
650531159885
Reviews
+
This product has no reviews.
Be the first to voice your opinion on this Kohler product.
Product Q&A
(1)
+
Ref Kohler Programmable Interface Module PIM. Please advise how this unit interfaces with the router via Ethernet or wireless possible?
Jeff Vercellone
from New Jersey
October 03, 2013
Read Response +
Answer
Thank you for your inquiry!

The Kohler programmable interface module, or PIM is designed to work with the OnCue platform which will be required. The PIM will utilize the read only format of the OnCue and allow for the control of up to 6 output circuits.

The system will require an Ethernet cable in order to connect to the OnCue and furthermore, the PIM. It is advised that this be installed by a Certified Kohler Technician.
