Kohler Engines PA-CV742-3023
Kohler Engines PA-CV742-3023
Hover to zoom
1 Of 5

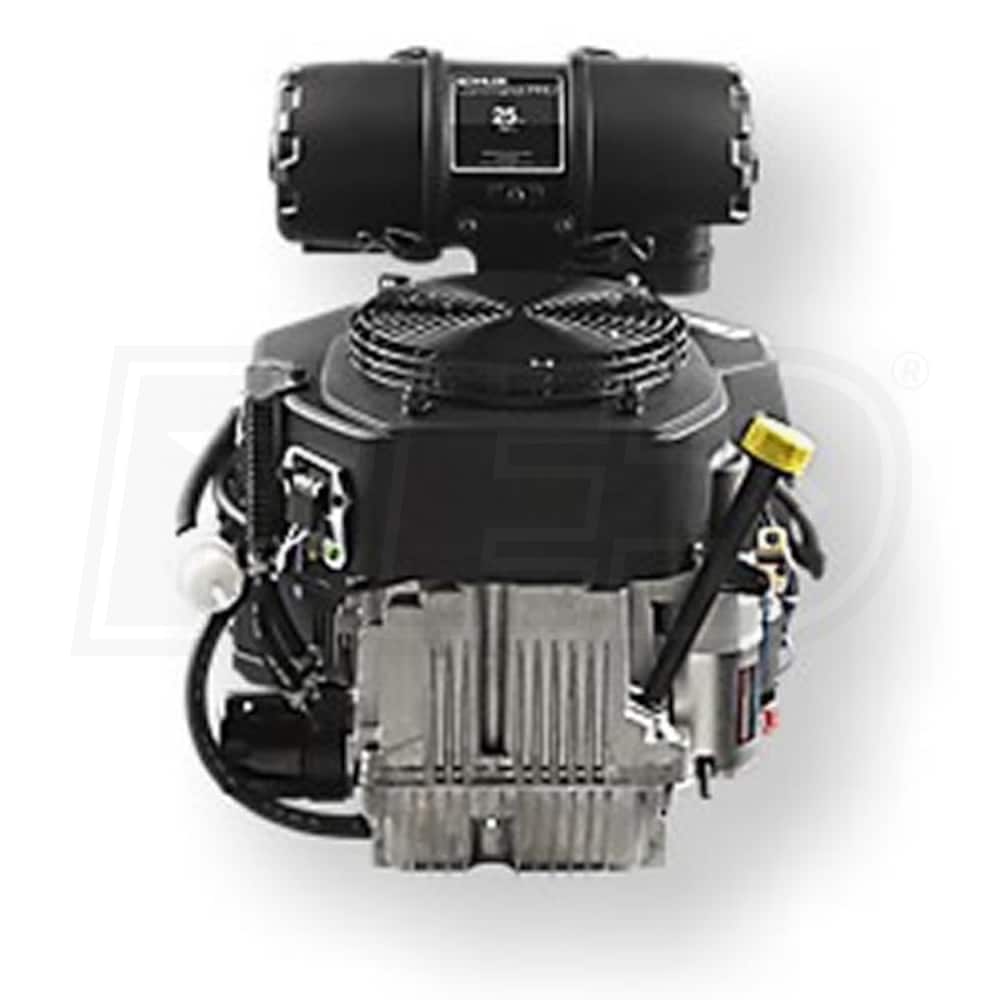

Kohler Command Pro CV742 747cc 25 Gross HP Electric Start Vertical Engine, 1-1/8" x 3.34" Crankshaft, Tapped 7/16"-20
Model: PA-CV742-3023
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews(1)
Write a Review
Ask a Question
$1,899.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+−

Features
Features
  • Model# CV742-3023, 1-1/8" x 3.34" Crankshaft, Tapped 7/16"-20
  • For use on Ariens
  • KOHLER Command PRO CV742 V-Twin Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
  • Produces 40.8 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2008
  • Top Mounted, Quick Change Oil Filter
  • Easy to reach- access to entire cylinder for thorough cleaning
  • Only one tool needed to remove cylinder cover
  • Less mess- most of oil is drained before removal
  • Overhead Valve Technology
  • Provides greater volumetric efficiency and higher compression ratio
  • Produces more power, improved fuel economy/cooling, and reduces oil consumption
  • Virtually no carbon buildup, reducing overall maintenance costs
  • Fully Oil Pressurized Hydraulic Valve Lifters
  • Push rods stay in constant contact with rocker arms
  • Valve train is maintenance free- no adjustments needed
  • Variable Speed, Mechanical Governor
  • Smooth performance, regardless of application or fluctuating demands for power
  • KOHLER Command PRO® Electronic Ignition System
  • Generates a stronger spark at low cranking speed
  • High-Efficiency Fan and Screen
  • Modulated cooling fan keeps engine cooler
  • Integrated Oil Cooler
  • Spin on, full-flow oil filter keeps debris and particles out of engine
  • 12V Electric Starter & 15A Regulated Charging System
Specifications
Engine
Engine Series
Command Pro
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
105 Lbs
CC
747 CCs
HP
25 HP
Max Torque
40.8 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.7 Inches
Compression Ratio
9.1:1
CARB
Yes
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3.34 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3.34"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
105 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
20.5 Inches
Product Width
16.2 Inches
Product Height
19.9 Inches
Dimensions
20.5 x 16.2 x 19.9
