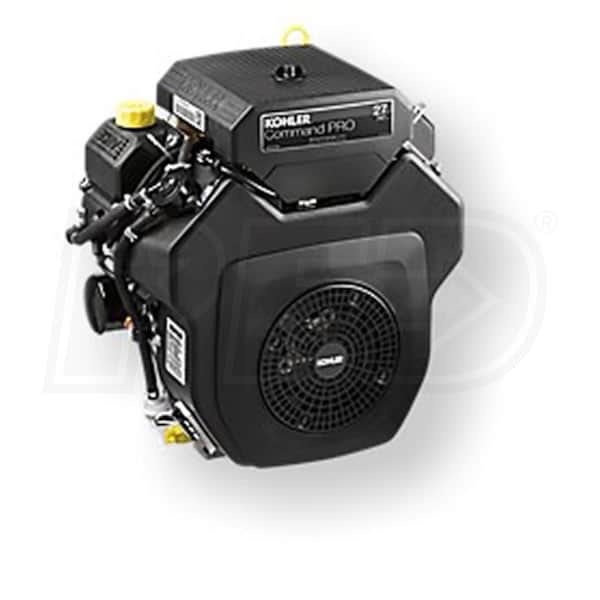

Kohler Command Pro CH740 725cc 25 Gross HP Electric Start Horizontal Engine, 1-7/16" x 4.453" Crankshaft, 5/8"-18
Model: PA-CH740-3363
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$2,019.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# CH740-3005, 1-7/16" x 4.453" Crankshaft, 5/8"-18
  • Utility / General applications like mowers, compressors & grain augers
  • KOHLER Command PRO CH730 V-Twin Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
  • Produces 39.2 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1985
  • Fully Oil Pressurized Hydraulic Valve Lifters
  • Push rods stay in constant contact with rocker arms
  • Valve train is maintenance free- no adjustments needed
  • Overhead Valve Technology
  • Provides greater volumetric efficiency and higher compression ratio
  • Produces more power, improved fuel economy/cooling, and reduces oil consumption
  • Virtually no carbon buildup, reducing overall maintenance costs
  • Variable Speed, Mechanical Governor
  • Smooth performance, regardless of application or fluctuating demands for power
  • Large Capacity In-Line Fuel Filter And Dual Element Air Filter
  • Extra protection against dirt particles that can clog fuel lines
  • Maximizes engine power and life
  • KOHLER Command PRO
  • Generates a stronger spark at low cranking speed
  • Automatic Compression Release (ACR)
  • Allows compression to escape during cranking to reduce pull force
  • 12V Electric Starter & 15A Regulated Charging System
  • Mechanical Fuel Pump- Gas Tank Not Included
Specifications
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
94 Lbs
CC
725 CCs
HP
25 HP
Max Torque
39.2 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.6 Inches
Compression Ratio
9.0:1
CARB
Yes
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-7/16 x 4.453 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-7/16"
Crankshaft Length
4.453"
Crankshaft End Tapped Size
5/8"-18
Crankshaft Keyway Width
3/8 Inches
PTO Height
6-1/8 Inches
Overview
Weight
94 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
14 Inches
Product Width
17.7 Inches
Product Height
19 Inches
Dimensions
14 x 17.7 x 19
Additional Model Numbers
PA-CH740-3006, PA-CH740-3363
