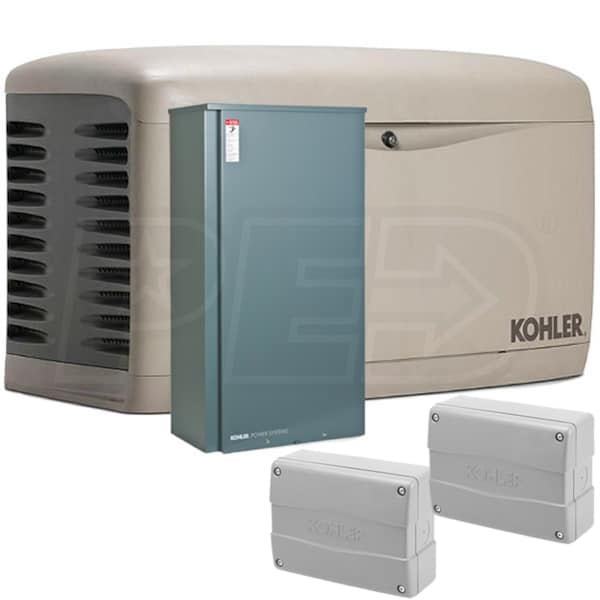

Kohler 20kW Composite Home Standby Generator Bundle (200A Standard ATS w/ Load Shedding & (2) Power Relay Mod.)

Model:

20RESC-RXT200-2PRM-KIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Kohler 20kW Composite Home Standby Generator Bundle (200A Standard ATS w/ Load Shedding & (2) Power Relay Mod.)
Kohler 20kW Composite Home Standby Generator Bundle (200A Standard ATS w/ Load Shedding & (2) Power Relay Mod.)
Model: 20RESC-RXT200-2PRM-KIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

20,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Kohler

  • Kohler 20kW Composite Home Standby Generator Kit
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • Also includes (2) Kohler 50-Amp Power Relay Modules (PRM)
  • Premium 5-Year / 2000 Hour Limited Warranty
  • Backed by Kohler's extraordinary reliability & performance
  • RXT 200-Amp Outdoor Automatic Transfer Switch (RXT-JFNC-0200A)
  • Designed For standard installation - Requires a sub-panel for overload protection
  • Load Shed Kit - Manage (2) HVAC + (4) Non-Essential loads* (Require PRM Modules)
  • Includes (2) Kohler 50-Amp Power Relay Modules (PRM)
  • Helps your generator balance additional high electrical loads (Well Pumps, HVAC, etc)
  • Runs on Clean Burning Natural Gas or LPG - Simple Field Conversion
  • While still maintaining emission regulations for U.S. EPA & California
  • Fast Response Time & Powerful Performance w/ PowerBoostâ Technology
  • Kohler® generators restore power in as little as 10 seconds
  • Greater motor-starting ability for large electrical loads
  • Premium Power Quality (+/-1% Voltage Regulation)
  • Protects sophisticated electronics with low distortion (<5%THD)
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx. 69 dB(A) at 7 m (23 ft.)
  • DC2 (6-Button) Digital Controller
  • Glare-resistant, 2-line 16-character display - No More Codes
  • ATS status via LED lights on controller; Built-In 2.5A Battery Charger
  • Exclusive 100% Corrosion-Proof Composite Enclosure
  • Will not rust - even in harsh seaside environments; Impact-resistant down to -30° F.
  • Polymer Base Engineered For Easier Installation
  • Fuel and electric connection through enclosure wall, no-more stub-ups
  • OnCue® Plus Remote Monitoring System (Included)
  • Built-in Ethernet card, no hardware needed for OnCue
  • Requires Group 51 Bat. (Not Included)
  • Please See Spec Sheet For All Certifications
  • Product Includes
    • (1) Kohler 20kW Composite Home Standby Generator (20RESC)
    • (1) Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch (RXT-JFNC-0200A)
    • (2) Kohler 50-Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches (GM92001)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Kohler 20kW Composite Home Standby Generator (20RESC)
  • (1) Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch (RXT-JFNC-0200A)
  • (2) Kohler 50-Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches (GM92001)
20RESC-RXT200-2PRM-KIT
specs product image PID-76793
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
535 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (500 CCA)
Enclosure
Composite
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
535 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
26.2 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
161 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Transfer Switch
Automatic (Not Included)
Battery
Not Included (500 CCA)
Enclosure
Composite
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
RXT-JFNC-0200A-QS7
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
15 Pounds
Consumer Warranty
5 Years
Product Depth
7.1 Inches
Product Width
13.2 Inches
Product Height
24.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
GM92001-KP1-QS
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
3 Pounds
Product Length
9.2 Inches
Product Width
6.8 Inches
Product Height
3.6 Inches
