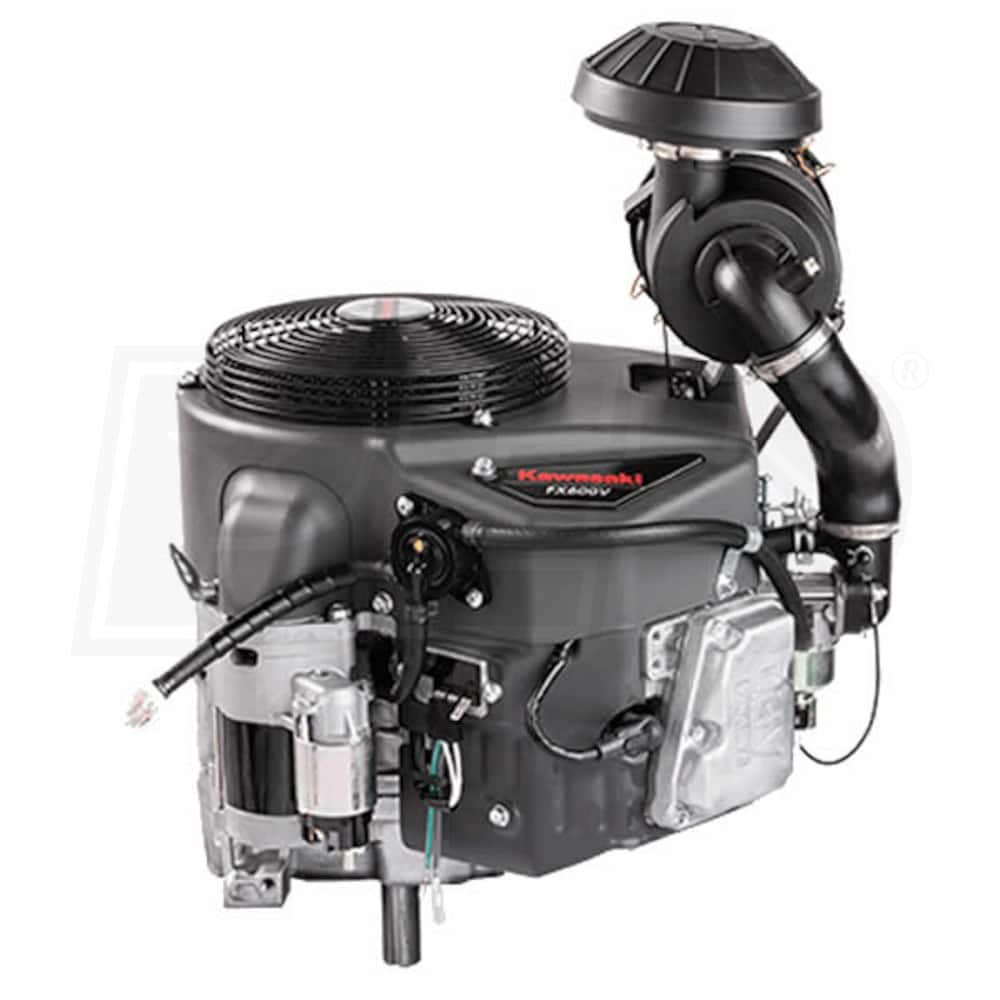

Kawasaki FX600V - 603cc 19HP V-Twin Recoil Vertical Engine, 1" x 3-5/32" Crankshaft
Model: FX600V-S01S
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$1,599.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • FX600V-ES01S - Recoil Start, Charging Coil, HD Can Air Filter
  • Supersedes FX600V-DS01S
  • 3-Year Commercial & 3-Year Residental Warranty
  • 1-1/8" x 3-5/32" (80mm) Crankshaft for commercial mowers & HD industrial/construction equipment
  • Top Of The Line Kawasaki FX600 Series Air-Cooled V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 19 HP @3600 RPM
  • 90° V-Twin Cylinder Engineering & Overhead V-Valve (OHV) Technology
  • Smooth, well-balanced power output in a compact package
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • Cast Iron cyclinder liners provide increased protection & longevity
  • FX-Series Multi-Stage Dual-Element Canister Air Filtration System
  • Never fear day-long continuous operation again
  • Two-Channel Forced Air-Cooling Design
  • Prevents overheating while boosting efficiency on even those HOT days
  • Heavy-Duty Recoil Starter w/ Auto-Compression Realease
  • Requires less force to pull, makes it easier to start, for less work fatigue
  • Internally-Vented Carbuerator w/ Fuel Shut-Off Solenoid
  • More percise air/fuel mix for efficient operation in a wide range of temps.
  • Metal Engine Cover w/ Integrated Clean-Out Ports
  • Rotating metal grass chopper screen keeps the engine breathing "freely"
  • 15-Amp Charging Coil, Separate Choke/Throttle Cables & High Capacity Fuel Pump
  • Designed to easily integrate with your current mower
  • Note - FX V-Twin Series Engines - Fuel Tank & Muffler NOT Included
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FX
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
89.7 Lbs
CC
603 CCs
HP
19 HP
Max Torque
32.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.90 Inches
Stroke
2.80 Inches
Compression Ratio
8.1:1
Systems
Starting System
Recoil Only
Ignition System
Flywheel Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Overview
Weight
89.7 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FX600V-ES01S, FX600V-S01S

Features
Features
  • FX600V-ES01S - Recoil Start, Charging Coil, HD Can Air Filter
  • Supersedes FX600V-DS01S
  • 3-Year Commercial & 3-Year Residental Warranty
  • 1-1/8" x 3-5/32" (80mm) Crankshaft for commercial mowers & HD industrial/construction equipment
  • Top Of The Line Kawasaki FX600 Series Air-Cooled V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 19 HP @3600 RPM
  • 90° V-Twin Cylinder Engineering & Overhead V-Valve (OHV) Technology
  • Smooth, well-balanced power output in a compact package
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • Cast Iron cyclinder liners provide increased protection & longevity
  • FX-Series Multi-Stage Dual-Element Canister Air Filtration System
  • Never fear day-long continuous operation again
  • Two-Channel Forced Air-Cooling Design
  • Prevents overheating while boosting efficiency on even those HOT days
  • Heavy-Duty Recoil Starter w/ Auto-Compression Realease
  • Requires less force to pull, makes it easier to start, for less work fatigue
  • Internally-Vented Carbuerator w/ Fuel Shut-Off Solenoid
  • More percise air/fuel mix for efficient operation in a wide range of temps.
  • Metal Engine Cover w/ Integrated Clean-Out Ports
  • Rotating metal grass chopper screen keeps the engine breathing "freely"
  • 15-Amp Charging Coil, Separate Choke/Throttle Cables & High Capacity Fuel Pump
  • Designed to easily integrate with your current mower
  • Note - FX V-Twin Series Engines - Fuel Tank & Muffler NOT Included
  • 50-State CARB Compliant
Specifications
Engine
Engine Series
Kawy FX
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
89.7 Lbs
CC
603 CCs
HP
19 HP
Max Torque
32.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.90 Inches
Stroke
2.80 Inches
Compression Ratio
8.1:1
Systems
Starting System
Recoil Only
Ignition System
Flywheel Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Overview
Weight
89.7 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FX600V-ES01S, FX600V-S01S
Product Specs
+
Specifications
Engine
Engine Series
Kawy FX
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
89.7 Lbs
CC
603 CCs
HP
19 HP
Max Torque
32.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.90 Inches
Stroke
2.80 Inches
Compression Ratio
8.1:1
Systems
Starting System
Recoil Only
Ignition System
Flywheel Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Overview
Weight
89.7 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FX600V-ES01S, FX600V-S01S
