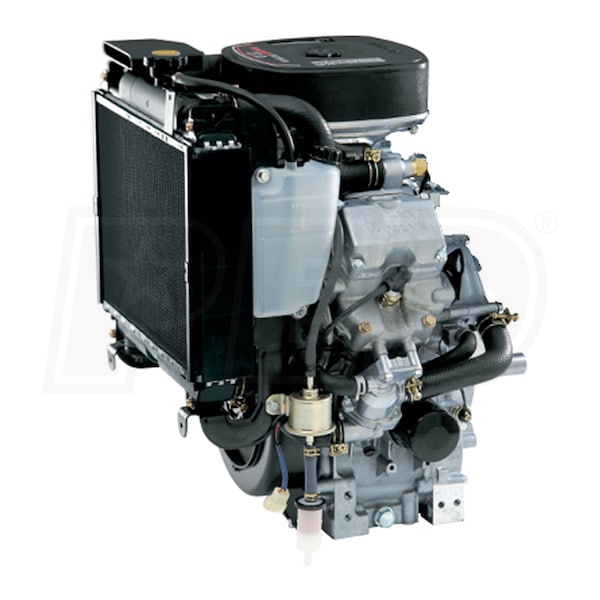

Kawasaki FD750D 745cc 25HP Liquid-Cooled Electric Start Horizontal Engine, 1-1/8" x 3-3/4" Crankshaft W/ Canister Air Filter
Model:
FD750D-S06S
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Dale, our Expert
Optional Accessories
1
Model: 08732-0800
$6.50
In-Stock
Features
- Kawasaki FD750D-NS06S 745cc 25HP Horizontal Engine, 1-1/8" x 3-3/4" Crankshaft
- Delivering power through a precision-engineered liquid-cooled horizontal shaft OHV 90° V-Twin
- For use on lawn tractors and scissor lifts, trenchers, and trash pumps
- Overhead Valve (OHV) Technology & Mechanical Governor
- For maximum power, quiet operation & ensures low emissions
- Produces maximum 41.0 ft./lbs torque @ 2,600 RPM; 25 HP @ 3,600 RPM
- Pressurized Lubrication System
- Cast-iron cylinder liner & chrome plated piston rings for increased longevity
- Liquid Cooled Engine
- High mount radiator & belt driven cooling fan keeps optimal temperature
- 20-AMP Electric Bendix Starter
- Magneto spark ignition for consistant ease in starting
- Heavy Duty Canister Air Filter
- Prevents dirt and debris from clogging essentials and causing decreased performance
- Twin Barrel Carburetor
- Fuel shut-off solenoid and oil pressure switch
- Note - Fuel-Tank & Muffler Not Included
- 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
FD750D-S06S

Engine
Engine Series
Kawy FD
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Liquid
Dry Weight
122 Lbs
CC
745 CCs
HP
25 HP
Max Torque
41 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.07 Inches
Stroke
3.07 Inches
Compression Ratio
8.6:1
Systems
Charging System
20 Amps
Starting System
12-Volt (No Key)
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
67.2 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3-3/4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3-3/4"
Overview
Weight
122 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FD750D-NS06S, FD750D-S06S
