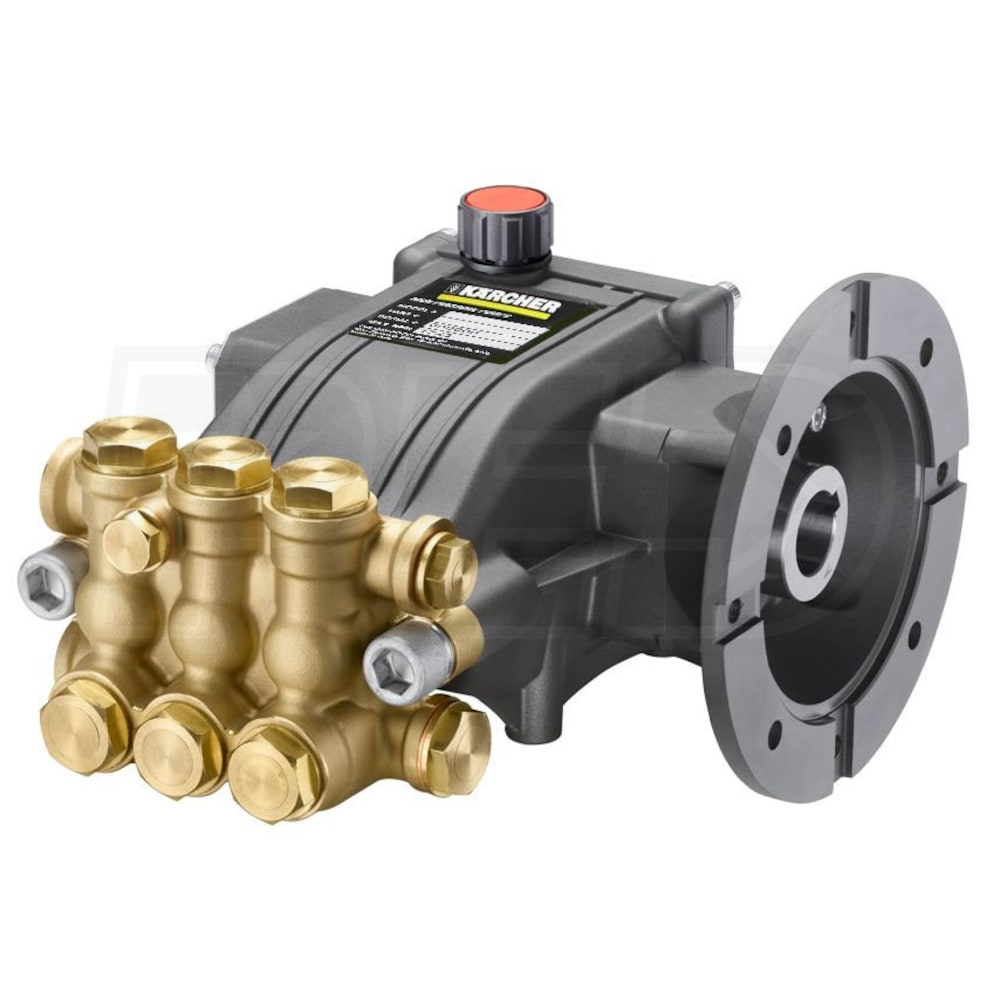

Karcher KF3530F 3000 PSI 3.5 GPM Electric Triplex Pressure Washer Pump

Model:

8.923-794.0

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Karcher KF3530F 3000 PSI 3.5 GPM Electric Triplex Pressure Washer Pump
Karcher KF3530F 3000 PSI 3.5 GPM Electric Triplex Pressure Washer Pump
Model: 8.923-794.0
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Karcher Electric

  • Karcher KF Series Replacement Triplex Plunger Pump
  • 3/4" hollow shaft diameter; flanged for coupling to an electric motor with a 56C mounting
  • Designed for 3000 PSI discharge at 3.5 GPM & 3450 RPM
  • Maximum inlet pressure: 125 PSI; max temperature: 185°F; 14mm bore; 10.6mm stroke
  • Die Cast Aluminum Crankcase
  • Extended piston rod guides for long seal life
  • Forged Brass Manifold
  • FEA computer enhanced design increases strength in critical areas
  • Die cast aluminum connecting rods with extended length and size deliver optimum performance
  • Mirror Finish Ceramic Plungers
  • Increased thickness resists thermal shock and corrosion
  • Stainless steel inlet & discharge valve assemblies, valve caps with recessed O-rings withstand leakage
  • 7 Year Factory Warranty
  • Covers defects in materials & workmanship; protects your investment
  • Be Sure To Measure The Shaft & Flange Bolt Holes Accurately!
  • Pump is shipped as shown; you will need to re-use your fittings or purchase them separately
  • There is a 25% restock fee on returned pumps
  • Please refer to the Spec Sheet PDF under the Specs tab for dimensional drawings
California residents see
Warning: This product can expose you to chemicals including Diisononyl phthalate (DINP) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

8.923-794.0
specs product image PID-77419
Overview
Weight
17 Pounds
Consumer Warranty
7 Years
Product Length
9.85 Inches
Product Width
8.75 Inches
Product Height
5.30 Inches
Accessories
Pump Brand
Karcher
Pump Type
Triplex Plunger
Shaft Size
3/4
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Consumer
Accessory Style
Karcher Electric
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
3.5
Rated PSI
3000 PSI
