Iron Horse 3.2-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)
Model:
IHD6160V1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
1
These accessories are required to properly setup/install this product.
Model: IH-SKE001
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$75.00
Factory-Direct
Optional Accessories
7
Model: 21999-0177
$109.80
Factory-Direct
$66.99
Factory-Direct
Model: TRI-GD-1100P-GL
$65.00
Factory-Direct
Model: TRI-GD-2100P-GL
$95.00
Factory-Direct
Model: DXCM024-0344
$200.99
Factory-Direct
Model: EGA-110
$122.00
Factory-Direct
Model: EA1/2X50-B
$56.00
Factory-Direct
Features
Grade
Consumer
Style
Single Stage 1-Phase
CFM
11.2
Tank Size
60
- 3.2 Horsepower Electric Motor
- Run a wide variety of tools; reaches 6.5 HP peak at startup

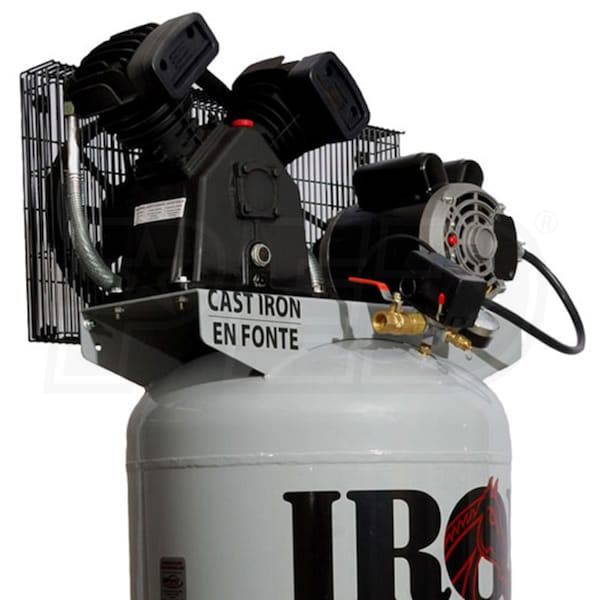

- Rugged 2 Cylinder Cast Iron Compressor
- Extremely quiet and durable
- Individual And Removable Cylinders
- Provides smoother & cooler operation, longer life
- No Magnetic Starter Required
- Everything you need in one package
- Heavy Duty Pressure Switch
- Easy, on/off control
- Thermally Protected 208/230 Volt Motor
- Versatile single phase power fits many applications
- 60 Gallon ASME Registered Tank
- Rated to 150 PSIG
- High Efficiency Reed Valves
- Provide maximum performance
- Convenient To Maintain
- Easy view oil sight gauge
- Sturdy belt guard
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
IHD6160V1
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
3
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
11.2
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
263.5 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
48 Inches
Product Width
40 Inches
Product Height
78 Inches
Power Type
Electric
UPC
777589002786
Reviews
(9)
Iron Horse IHD6160V1 Reviews & Ratings
Customer Rating
4.44
(9 Ratings)
5
(5)
(5)4(3)
(3)3(1)
(1)2(0)
(0)1(0)
(0)
Good Air
By Rick M
Pennsylvania
Purchased 07/21/2023 |
Review Posted 08/15/2023
The shipping was fast it only took about 5 days from ordering. It came ready to run and so far seems to be very reliable quiet and produces more than enough to run the small shop I've got.
Rick M Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Took2
By Michael H
Maryland
Purchased 03/10/2023 |
Review Posted 04/04/2023
Had to return the first one because of damage in shipping. Took time to work things out and do the return and then receive a replacement. Much better results the second time around. I would have been a lot more upset had I needed the compressor for a business but fortunately it was for a home shop. It's not as quiet as my old one but it's tolerable as it sits in another section of my building. I can only give it an average rating as I haven't really had it long enough to rate it otherwise.
Michael H Recommends This
Was this review helpful?
Rating Breakdown
3/5
3/5
3/5
4/5
Pros:
Easy To Use, Price
Cons:
Packaging, No other at this time.
So Far So Good
By Jason T.
Houston, Texas
Purchased 07/08/2021 |
Review Posted 08/30/2021
We've had the compressor running for about a month now. About 2 weeks into it, the cover plate on the motor started leaking oil. We simply tightened the cover and it stopped the leaking. The compressor was very quiet the first week or so and then suddenly it became noticeably louder. The oil level never got below full and the leak was more seepage than anything.
Jason T. Recommends This
Was this review helpful?
Rating Breakdown
4/5
3/5
4/5
4/5
Great Compressor
By Doug L.
Beaver, Pennsylvania
Purchased 05/19/2021 |
Review Posted 07/26/2021
This is an awesome compressor, I have a mobile repair service and have to bring the more serious work back to the shop.
Builds air quick, and holds...! Great for air tools, air cut off tools and air lifts, well made unit, price wise its right were the others are, good cfm and scfm rating. I'd buy again.
Do.....get the lift gate service!!!!!!! This delivers by way of semi truck so make sure you have room for delivery.
Builds air quick, and holds...! Great for air tools, air cut off tools and air lifts, well made unit, price wise its right were the others are, good cfm and scfm rating. I'd buy again.
Do.....get the lift gate service!!!!!!! This delivers by way of semi truck so make sure you have room for delivery.
Doug L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Exceeded Expectations, Reliable, High Quality, Id Buy It Again
Cons:
Heavy
Great Compressor
By John C.
Hoover, Alabama
Purchased 03/18/2020 |
Review Posted 04/14/2020
Purchased this for our new workshop. Very easy to use, great quality!
John C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Features, Easy To Use, Price
Great Garage Compressor
By Pete B.
London Ontario Canada, Michigan
Review Posted 02/07/2016
I bought one of a few months back. I've piped the garage with black pipe and we are off to the races. Compressor is fairly quiet and reaches capacity fairly quick. This thing is leagues above my old 30 gallon direct drive model.
I did do a little digging on the specs. From what I have found the compressor is capable of 150 PSI and the tank MAWP is 170 PSI. The pressure relief valve on the tanks is rated for 160 PSI. Mind you I see no need to push the machine past 135 PSI but I think it could be pushed a little harder if it was absolutely necessary.
I have mine set to cut in @ 95 PSI and out @ 135 PSI and it works great.
I did do a little digging on the specs. From what I have found the compressor is capable of 150 PSI and the tank MAWP is 170 PSI. The pressure relief valve on the tanks is rated for 160 PSI. Mind you I see no need to push the machine past 135 PSI but I think it could be pushed a little harder if it was absolutely necessary.
I have mine set to cut in @ 95 PSI and out @ 135 PSI and it works great.
Pete B. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
5/5
5/5
Quality Shop Compressor
By Andy H.
sturgis, South Dakota
Review Posted 09/22/2013
Bought the 3.2hp-60gal Iron Horse Compressor back in 2005 locally. I am very happy with it. The quality and durability are superb!
I've stripped and painted 2 vehicles since then. I've run it 4-5 hours straight a few times and it gets hot, but no issues. It's still on the original belt, finish is still perfect, pressure switch and shut off switch are still good. Bleed valve on the bottom still seals nicely.
I would say it is medium-loud but it doesn't sound like it's destroying itself when it's running. Some compressors you just have to leave the room when they're running, this one you don't. I run mine on 220V. I blow out the filters once in a while and change the oil just once a year.
Volume wise, I can run a Craftsman DA nonstop and it doesn't fall below 80psi while trying to keep up. I still wish it had a few more CFM, but I have no regrets.
I've had a lot of friends with Sanborns (from Menards) and Craftsman compressors that didn't last a year or were so terribly noisy that they returned them.
I expect this to still be running strong in another 10 years and would recommend it in a heartbeat.
I've stripped and painted 2 vehicles since then. I've run it 4-5 hours straight a few times and it gets hot, but no issues. It's still on the original belt, finish is still perfect, pressure switch and shut off switch are still good. Bleed valve on the bottom still seals nicely.
I would say it is medium-loud but it doesn't sound like it's destroying itself when it's running. Some compressors you just have to leave the room when they're running, this one you don't. I run mine on 220V. I blow out the filters once in a while and change the oil just once a year.
Volume wise, I can run a Craftsman DA nonstop and it doesn't fall below 80psi while trying to keep up. I still wish it had a few more CFM, but I have no regrets.
I've had a lot of friends with Sanborns (from Menards) and Craftsman compressors that didn't last a year or were so terribly noisy that they returned them.
I expect this to still be running strong in another 10 years and would recommend it in a heartbeat.
Andy H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Reliable, High Quality, I'd Buy It Again
CFM vs. Maximum pressure rating
By Matt
Jasper, Indiana
Purchased 06/11/2011 |
Review Posted 06/16/2011
The compressor works fine, however the maximum working pressure is only 135 psi, not the listed 150 psi in the specs.
Was this review helpful?
Expert Response
The “Max. Pressure” specification on air compressors is not the maximum working pressure, it is the maximum pressure the tank is rated for. It is the same for every air compressor on our site, and is based on information provided by the manufacturers.
The maximum function of each air compressor is described by the CFM (cubic feet per minute) at a specific pressure- 40 PSI, 90 PSI, and/or 100 PSI, depending on the size of the air compressor pump. For example, this air compressor is rated to produce 11.2 CFM @ 90 PSI.
This is so you can determine the air tools the compressor can run, since they are rated by the air they consume, in CFM.
The maximum function of each air compressor is described by the CFM (cubic feet per minute) at a specific pressure- 40 PSI, 90 PSI, and/or 100 PSI, depending on the size of the air compressor pump. For example, this air compressor is rated to produce 11.2 CFM @ 90 PSI.
This is so you can determine the air tools the compressor can run, since they are rated by the air they consume, in CFM.
Dale V.
Power Equipment Expert
Rating Breakdown
4/5
4/5
4/5
4/5
Very good quality
By john
vina, Alabama
Review Posted 12/10/2010
It is made in USA- in Belmont, MS.
Top notch.
Top notch.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Product Q&A
(2)
Product Questions
Answered by Melissa, the Air Compressor Expert
What is the duty cycle of this air compressor
Rusty
from Louisiana
April 15, 2016
BOUGHT A NEW IRON HORSE 60 GALLON AIR COMPRESSOR.
Hooked up 120 wiring to the compressor.
turns on for 30 sec to 1 min.and trips the breaker.
What am I doing wrong
DOnald Cohn
from Florida
February 15, 2016
