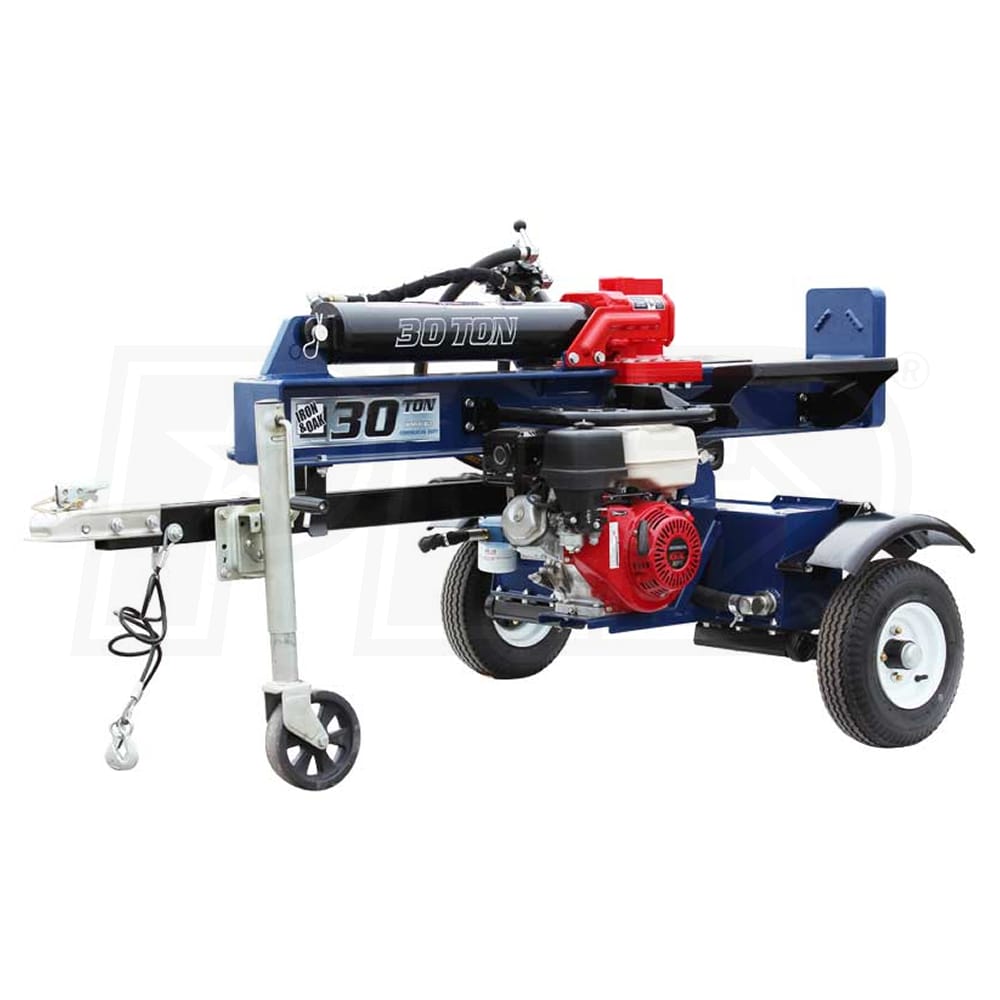

Iron & Oak 30-Ton Honda Powered Horizontal / Vertical Gas Log Splitter (Torsion Axle)

Model:

BHVH3018GXT

Write a Review
$3,899.99
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Free Shipping$3,899.99Buy Now
Free Freight$3,899.99Visit Site
Iron & Oak 30-Ton Honda Powered Horizontal / Vertical Gas Log Splitter (Torsion Axle)
Iron & Oak 30-Ton Honda Powered Horizontal / Vertical Gas Log Splitter (Torsion Axle)
Model: BHVH3018GXT
$3,899.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Force

30 Tons

Style

Gas

Type

Vertical / Horizontal

Log Length

25 Inches

  • Legendary 270cc Honda GX270 4-Cycle Gas Engine
  • OHV design for enhanced efficiency and power transfer
  • Runs cooler and cleaner while reducing carbon deposits
  • A heavy-duty recoil starter makes ignition a breeze

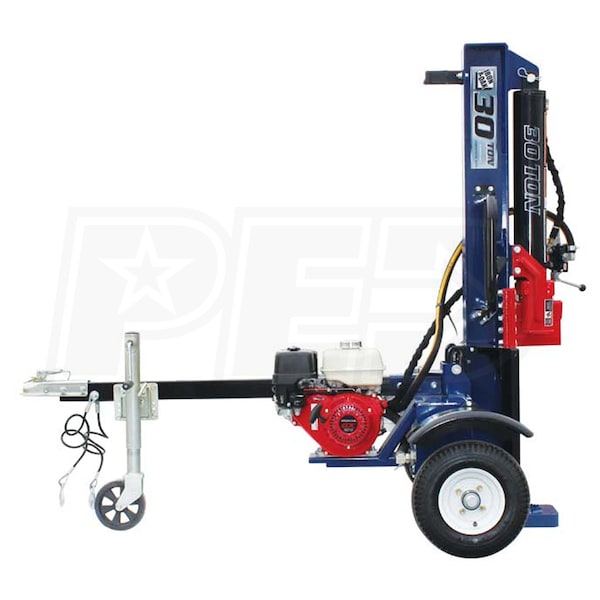

  • Vertical & Horizontal Splitting
  • Position the beam with a single hand using the E-Z lift hinge
  • Vertical: Save your back and roll larger logs into place
  • Horizontal: Split smaller logs at comfortable waist height
  • 30-Ton Splitting Force
  • Power capable of splitting through the fresh green stuff with ease
  • 25-inch log opening on a 6-inch heavy-duty formed steel beam
  • Halite® commercial cylinder seals ensure consistent pressure
  • 2-Stage HI-LO, 16 GPM Hydraulic Pump
  • Productive 12-second cycle time with auto-return
  • 9-gallon hydraulic system - hydraulic fluid NOT included
  • Dependable 4-stage filtration system enhances pump life
  • Log Dislodger & Cradle Included

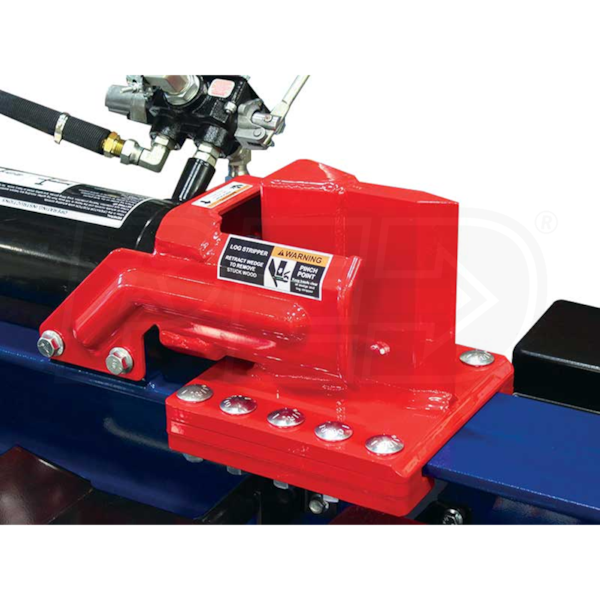

  • Dislodger keeps logs from sticking to wedge
  • Cradle catches split logs reducing the need to pick them up
  • Intuitive Design
  • The hydraulic valve is offset to keep it safe and out of your way
  • Features a wheel jack, which makes the unit easy to maneuver
  • Tow-Capable
  • Splitter sits atop two high speed 4.8" x 8" highway tires
  • Quickly and easily connect using the 2-inch hitch coupler
  • Includes tow cables and wheel fenders for added safety
  • Torsion Tension
  • Thick rubber cords are concealed inside the axle frame
  • These are designed to absorb shock and provide a smoother ride
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

BHVH3018GXT
specs product image PID-96671
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycle
4-Cycle
HP
8.5 HP
CC
270 CCs
Fuel Tank Size
1.6 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
Yes
Torque
14.1 Lbs
Idle Control
Yes
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Reservoir Size
10.6 Gallons
Max Pump PSI
3500 PSI
Cylinder Diameter
4.5 Inches
Cylinder Length
24 Inches
Cycle Time
12 Seconds
Tonnage
30 Tons
Wedge
Wedge Material
Steel
Wedge Size
8 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25 Inches
Max Log Diameter
16 Inches
Towing
Towable
Yes
Fenders
Included
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Wheels
Rear Tire Size
4.8 x 8 Inch
Tire Type
Pneumatic Wheels
Overview
Assembly Required
Yes
Weight
730 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
93 Inches
Product Width
53 Inches
Product Height
45 Inches
Power Type
