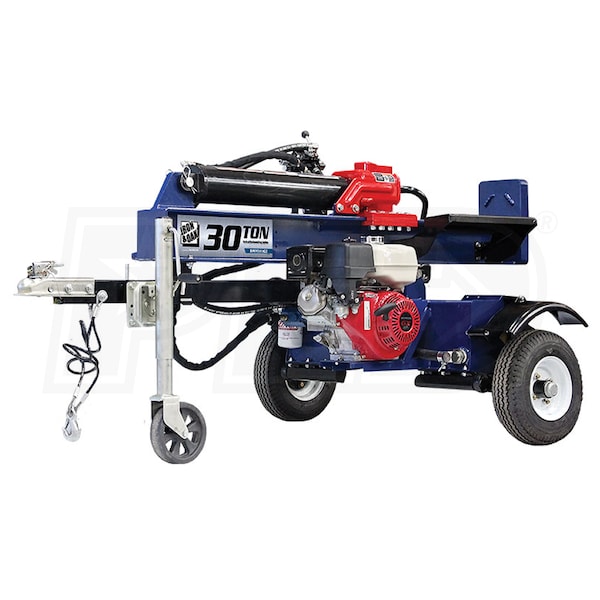

Iron & Oak 30-Ton Honda Powered Horizontal / Vertical Gas Log Splitter
Iron & Oak 30-Ton Honda Powered Horizontal / Vertical Gas Log Splitter
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Force
30
Tons
Style
Type
Log Length
25
Inches
Force
30 Tons
Style
Gas
Type
Vertical / Horizontal
Log Length
25 Inches
Features
Features
- Legendary 270cc Honda GX270 4-Cycle Gas Engine
- OHV design for enhanced efficiency and power transfer
- Runs cooler and cleaner while reducing carbon deposits
- A heavy-duty recoil starter makes ignition a breeze
- Vertical & Horizontal Splitting
- Position the beam with a single hand using the E-Z lift hinge
- Vertical: Save your back and roll larger logs into place
- Horizontal: Split smaller logs at comfortable waist height
- 30-Ton Splitting Force
- Power capable of splitting through the fresh green stuff with ease
- 25-inch log opening on a 6-inch heavy-duty formed steel beam
- Halite® commercial cylinder seals ensure consistent pressure
- 2-Stage HI-LO, 16 GPM Hydraulic Pump
- Productive 12-second cycle time with auto-return
- 9-gallon hydraulic system - hydraulic fluid NOT included
- Dependable 4-stage filtration system enhances pump life
- Log Dislodger & Cradle Included

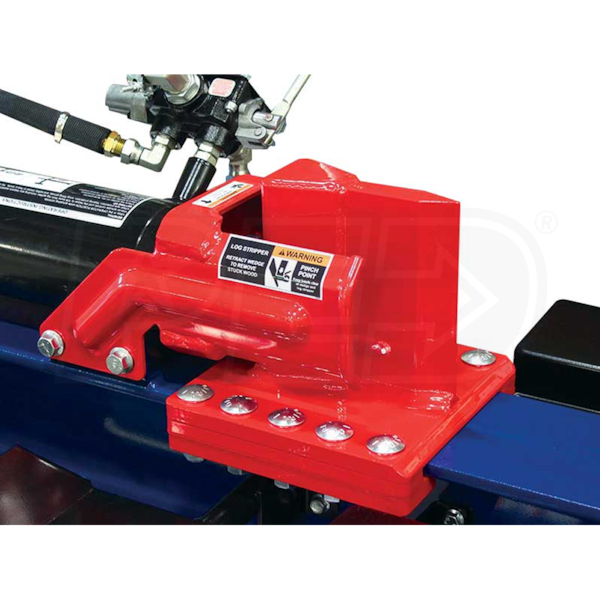

- Dislodger keeps logs from sticking to wedge
- Cradle catches split logs reducing the need to pick them up
- Intuitive Design
- The hydraulic valve is offset to keep it safe and out of your way
- Features a wheel jack, which makes the unit easy to maneuver
- Tow-Capable
- Splitter sits atop two high speed 4.8" x 8" highway tires
- Quickly and easily connect using the 2-inch hitch coupler
- Includes tow cables and wheel fenders for added safety
Specifications
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycle
4-Cycle
HP
8.5 HP
CC
270 CCs
Fuel Tank Size
1.6 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
Yes
Torque
14.1 Lbs
Idle Control
Yes
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
10.6
Max Pump PSI
3500 PSI
Cylinder Diameter
4.5 Inches
Cylinder Length
24 Inches
Cycle Time
12 Seconds
Tonnage
30 Tons
Wedge
Wedge Size
8 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25 Inches
Max Log Diameter
16 Inches
Towing
Towable
Yes
Fenders
Included
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Wheels
Rear Tire Size
4.8 x 8 Inch
Tire Type
Pneumatic Wheels
Overview
Assembly Required
Yes
Weight
705 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
93 Inches
Product Width
48 Inches
Product Height
45 Inches
Power Type
Gas
UPC
00011343001722
Force
30
Tons
Style
Type
Log Length
25
Inches
Force
30 Tons
Style
Gas
Type
Vertical / Horizontal
Log Length
25 Inches
Features
Features
- Legendary 270cc Honda GX270 4-Cycle Gas Engine
- OHV design for enhanced efficiency and power transfer
- Runs cooler and cleaner while reducing carbon deposits
- A heavy-duty recoil starter makes ignition a breeze
- Vertical & Horizontal Splitting
- Position the beam with a single hand using the E-Z lift hinge
- Vertical: Save your back and roll larger logs into place
- Horizontal: Split smaller logs at comfortable waist height
- 30-Ton Splitting Force
- Power capable of splitting through the fresh green stuff with ease
- 25-inch log opening on a 6-inch heavy-duty formed steel beam
- Halite® commercial cylinder seals ensure consistent pressure
- 2-Stage HI-LO, 16 GPM Hydraulic Pump
- Productive 12-second cycle time with auto-return
- 9-gallon hydraulic system - hydraulic fluid NOT included
- Dependable 4-stage filtration system enhances pump life
- Log Dislodger & Cradle Included
- Dislodger keeps logs from sticking to wedge
- Cradle catches split logs reducing the need to pick them up
- Intuitive Design
- The hydraulic valve is offset to keep it safe and out of your way
- Features a wheel jack, which makes the unit easy to maneuver
- Tow-Capable
- Splitter sits atop two high speed 4.8" x 8" highway tires
- Quickly and easily connect using the 2-inch hitch coupler
- Includes tow cables and wheel fenders for added safety
Specifications
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycle
4-Cycle
HP
8.5 HP
CC
270 CCs
Fuel Tank Size
1.6 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
Yes
Torque
14.1 Lbs
Idle Control
Yes
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
10.6
Max Pump PSI
3500 PSI
Cylinder Diameter
4.5 Inches
Cylinder Length
24 Inches
Cycle Time
12 Seconds
Tonnage
30 Tons
Wedge
Wedge Size
8 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25 Inches
Max Log Diameter
16 Inches
Towing
Towable
Yes
Fenders
Included
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Wheels
Rear Tire Size
4.8 x 8 Inch
Tire Type
Pneumatic Wheels
Overview
Assembly Required
Yes
Weight
705 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
93 Inches
Product Width
48 Inches
Product Height
45 Inches
Power Type
Gas
UPC
00011343001722
Product Specs
+−
Specifications
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycle
4-Cycle
HP
8.5 HP
CC
270 CCs
Fuel Tank Size
1.6 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
Yes
Torque
14.1 Lbs
Idle Control
Yes
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
10.6
Max Pump PSI
3500 PSI
Cylinder Diameter
4.5 Inches
Cylinder Length
24 Inches
Cycle Time
12 Seconds
Tonnage
30 Tons
Wedge
Wedge Size
8 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25 Inches
Max Log Diameter
16 Inches
Towing
Towable
Yes
Fenders
Included
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Wheels
Rear Tire Size
4.8 x 8 Inch
Tire Type
Pneumatic Wheels
Overview
Assembly Required
Yes
Weight
705 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
93 Inches
Product Width
48 Inches
Product Height
45 Inches
Power Type
Gas
UPC
00011343001722
