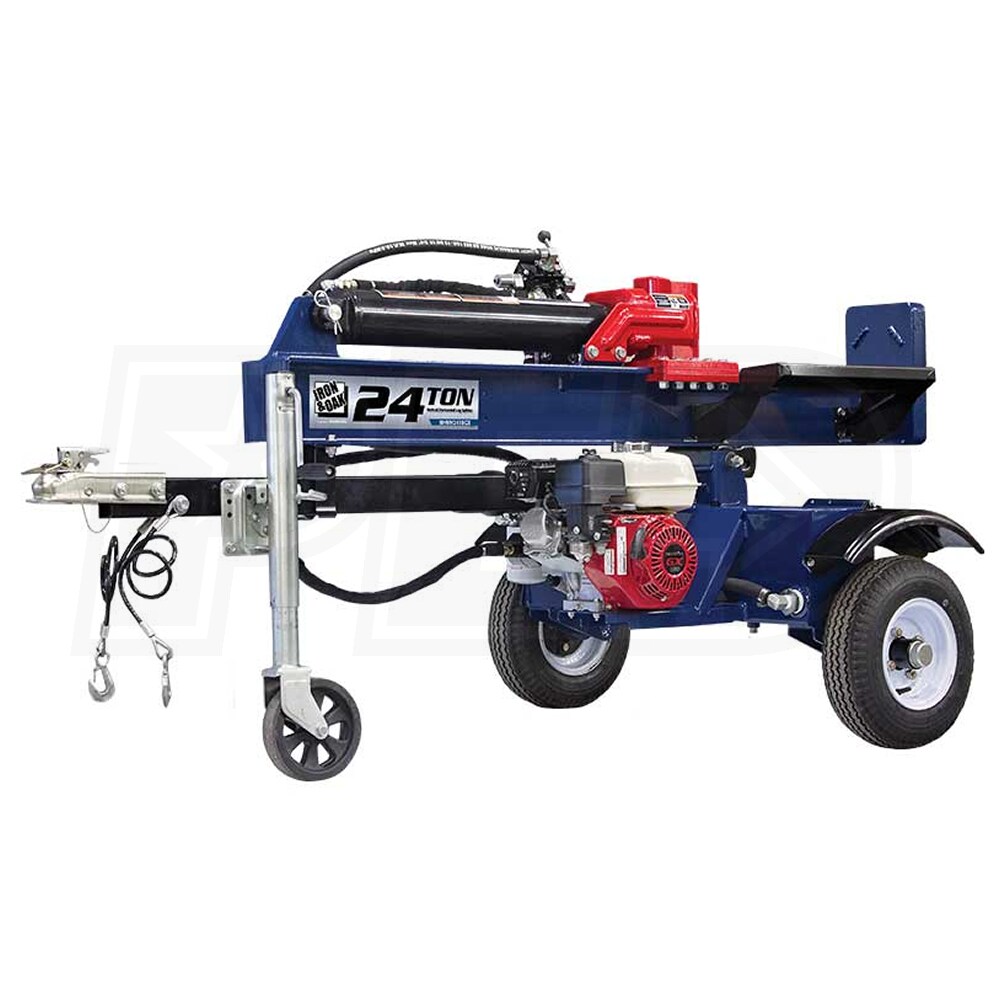

Iron & Oak 24-Ton Horizontal / Vertical Gas Log Splitter w/ Honda 163cc Engine

Model:

BHVH2418GX

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Iron & Oak 24-Ton Horizontal / Vertical Gas Log Splitter w/ Honda 163cc Engine
Iron & Oak 24-Ton Horizontal / Vertical Gas Log Splitter w/ Honda 163cc Engine
Model: BHVH2418GX
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Force

24 Tons

Style

Gas

Type

Vertical / Horizontal

Log Length

25 Inches

  • Legendary 163cc Honda GX160 4-Cycle Gas Engine
  • OHV design for enhanced efficiency and power transfer
  • Runs cooler and cleaner while reducing carbon deposits

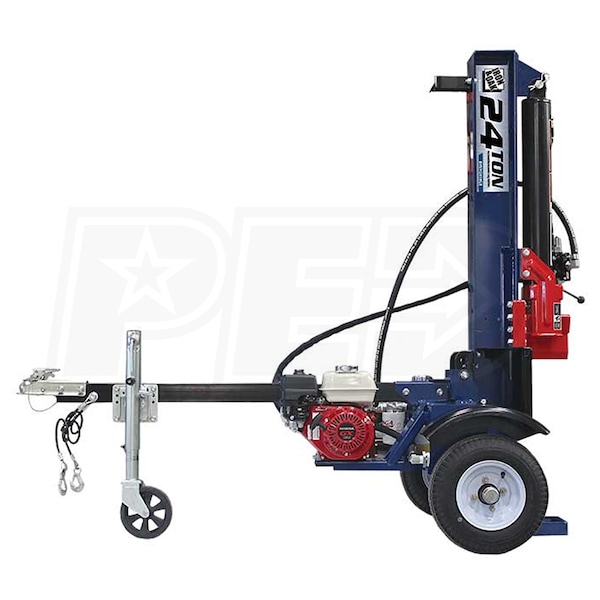

  • Vertical & Horizontal Splitting
  • Position beam with a single hand using the E-Z lift hinge
  • Horizontal: Split smaller logs at comfortable waist height
  • Vertical: Save your back and roll larger logs into place
  • 2-Stage HI-LO, 11 GPM Hydraulic Pump
  • Productive 13-second cycle time with auto-return
  • 9-gallon hydraulic system - hydraulic fluid NOT included
  • Dependable 4-stage filtration system enhances pump life
  • 24-Ton Splitting Force
  • Easily split through the toughest, knottiest logs
  • 25-inch log opening on a 6-inch heavy-duty formed steel beam
  • Halite® commercial cylinder seals ensure consistent pressure

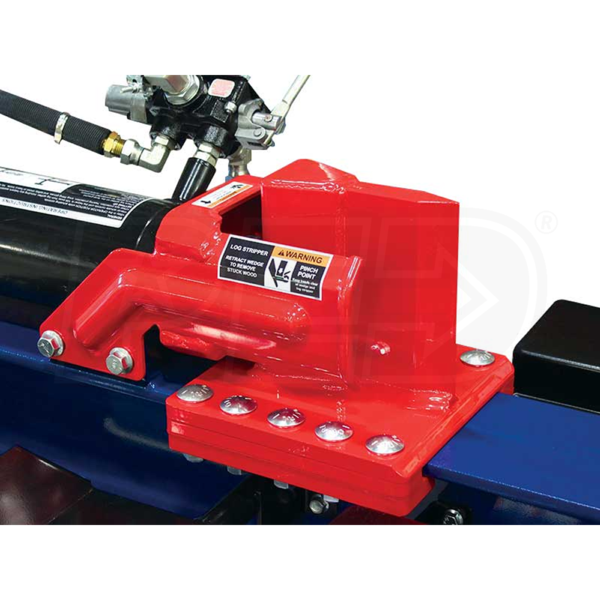

  • Log Dislodger & Cradle Included
  • Dislodger keeps you moving by ejecting logs stuck to the wedge
  • Cradle catches split logs - no more picking them up off the ground
  • Tow-Capable

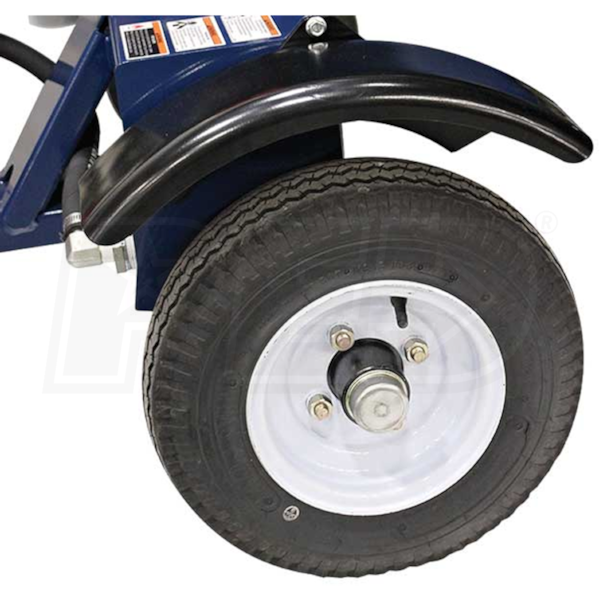

  • Splitter sits atop two high speed 4.8" x 8" highway tires
  • Quickly and easily connect using the 2-inch hitch coupler
  • 32-inch bed height and wheel jack make unit very maneuverable
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

BHVH2418GX
specs product image PID-96669
General Information
Product Category
Log Splitter
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
163 CCs
Fuel Tank Size
0.825 Gallons
Engine Cylinders
1 Cylinder
Torque
7.6 Lbs
Idle Control
Yes
Low Oil Shutdown
Yes
Hydraulics
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
10.6 Gallons
Max Pump PSI
3500 PSI
Cylinder Diameter
4 Inches
Cylinder Length
24 Inches
Cycle Time
13 Seconds
Tonnage
24 Tons
Overview
Product Category
Log Splitter
Weight
675 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
83 Inches
Product Width
48 Inches
Product Height
45 Inches
Power Type
Gas
UPC
00011343001715
Wedge
Wedge Material
Steel
Wedge Size
8 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25 Inches
Max Log Diameter
16 Inches
Towing
Towable
Yes
Fenders
Included
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Log Cradles
Included
Wheels
Rear Tire Size
4.8 x 8 Inch
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
