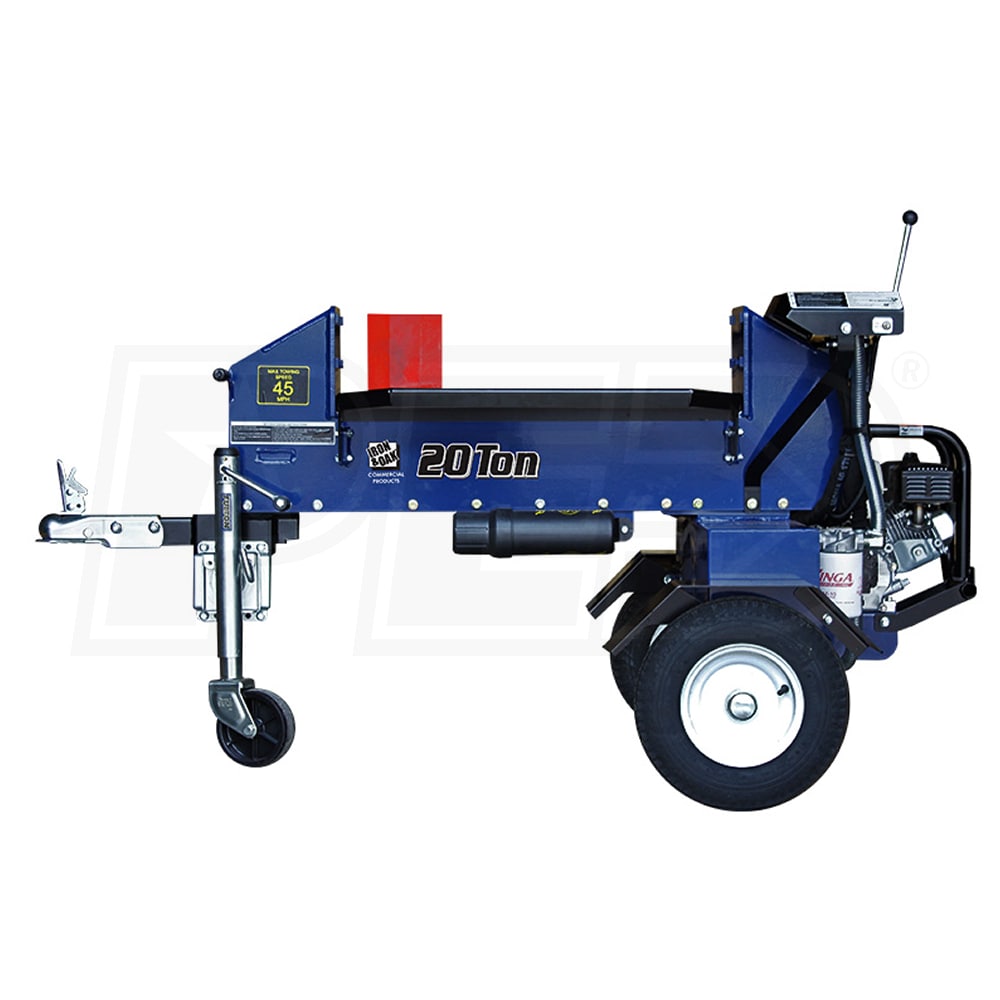

Iron & Oak 20-Ton Honda-Powered Dual-Action Horizontal Gas Log Splitter
Model:
BH2W2016GX
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Dale, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Force
20 Tons
Style
Gas
Type
Horizontal
Log Length
24 Inches
- Two-Way Splitting Action
- Utilizes forward & backward strokes to maximize your productivity
- Honda GX160 OHV 4-Cycle Engine w/ Steel Tubing Guard
- Reliable, fuel efficient engineering provides smooth & quiet operation
- 2-Stage, 11 GPM Barnes Hydraulic Pump (3000 PSI Max)
- Clevis 24" x 4" cylinder to produce 20-tons of splitting force
- 12-Gallon system capacity provides a cycle time of approx. 7 seconds
- Horizontal Operation Position
- At a 30" work height, spend more time splitting & less time bending
- 5.5" Heavy Duty Formed Steel Beam w/ Log Cradle
- Split logs up to 24" in length with ease (16" Diam. Max)
- Keeps log at working height after split, ready to be split again
- 8" Carbon Steel Double-Edged Cutting Wedge
- Unique, timesaving feature will take your splitting to the next level
- 4.8" x 8.0" Highway Rated Tires & 2-Inch Hitch Coupler
- Plus heavy-duty 4-bolt trailer hubs allow for towing speeds up to 45 MPH
- High Gloss Powder Coat Finish & Heavy-Duty Steel Fenders
- Durable, long-lasting protection during operation & transportation
- Major Components & Hydraulic Tank Factory Tested Before Shipment
- Made In U.S.A.
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
BH2W2016GX
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
163 CCs
Fuel Tank Size
0.75 Gallons
Idle Control
No
Low Oil Shutdown
Yes
Hydraulics
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
12 Gallons
Max Pump PSI
3000 PSI
Cylinder Diameter
4 Inches
Cylinder Length
24 Inches
Cycle Time
7 Seconds
Tonnage
20 Tons
Dual Action
Yes
Overview
Assembly Required
Yes
Weight
607 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
77 Inches
Product Width
39 Inches
Product Height
46 Inches
Power Type
Gas
Wedge
Wedge Material
Steel
Wedge Size
8 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
24 Inches
Max Log Diameter
16 Inches
Towing
Towable
Yes
D.O.T. Lights
Sold Separately
Fenders
Included
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Jack Stands
Included
Log Cradles
Included
| Wood Type | Hardness Rating | 6" Seasoned | 6" Green | 12" Seasoned | 12" Green | 24" Seasoned | 24" Green |
|---|---|---|---|---|---|---|---|
| Alder | 590 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Ash | 1320 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Aspen | 420 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Basswood | 410 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Beech | 1300 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Birch | 1470 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Boxelder | 720 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Buckeye | 350 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Catalpa | 550 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Cedar | 900 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cherry | 950 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cottonwood | 430 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Dogwood | 2150 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Elm | 1540 Lbs. | 10+ Tons | 13+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Fir | 710 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Hickory | 1820 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Locust | 1700 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Magnolia | 1020 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Maple | 1450 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Oak | 1620 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Pine | 860 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Poplar | 540 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Spruce | 510 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Sweet Gum | 850 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Walnut | 1010 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
