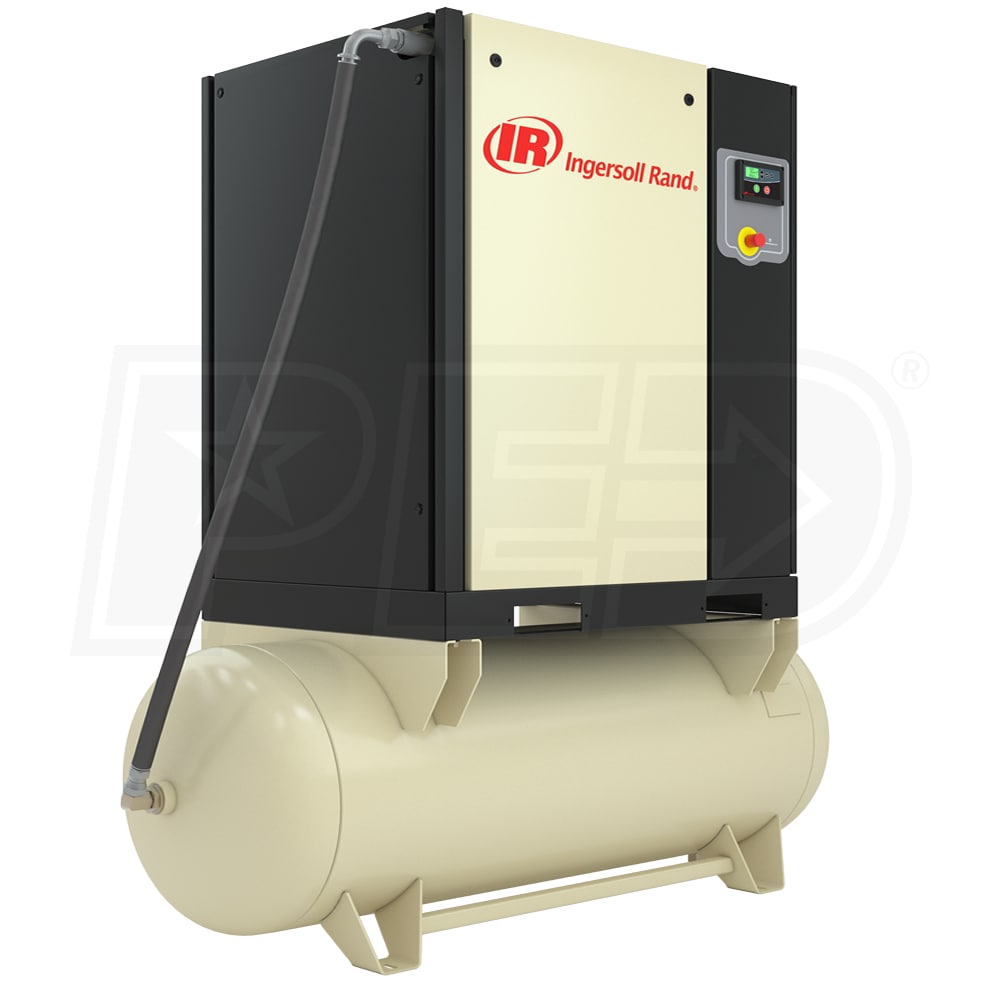

Ingersoll Rand Next Generation R-Series 25-HP 120-Gallon Rotary Screw Air Compressor (208V 3-Phase 125PSI)

Ingersoll Rand Next Generation R-Series 25-HP 120-Gallon Rotary Screw Air Compressor (208V 3-Phase 125PSI)
Our Price
Compare Prices
Shipping Info
Model: RS18I-A125.208V3
(Based on expert analysis, manufacturer ratings and customer reviews)
$13,849.99

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Add-Ons
+$50.00
Free Shipping$13,849.99Buy Now
Free Freight$13,849.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
107
CFM Rated @ 125 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
107 CFM Rated @ 125 PSI
Tank Size
120 Gallons
Features
Features
  • R-Series Next Generation Rotary Screw Air Compressor
  • Easy to install, simple to operate and reliable efficiency
  • New compact footprint design is 20% smaller than previous models
  • Boosts productivity, lowers operating expenses and extends equipment life
  • State Of The Art Airend
  • Delivers up to 17.5% improved efficiency & 18% more airflow capacity
  • Rotors are manufactured from AISI-1045 steel or EN 10083-2 C45+N steel
  • Two-Stage Filtration & Seperation Elements
  • Ensures increased uptime with and easy maintenance
  • Long-life Ultra Coolant with 8,000-hour life included
  • Premium IE3 NEMA 4 High-Efficiency TEFC Motor
  • Delivers low noise, high pressure with axial fan mounted
  • Class F insulation with B rise, Star-delta reduced voltage starter, & NEMA 4/IP55 electronics provide reliable service
  • Programmable Xe-Series Color Controller w/ Remote Connectivity
  • Features start/stop control, auto-restart & manual load/unload
  • Multiple screens of compressor information and setup data and tabbed folders for ease of navigation
  • Continuous Duty & Quiet Operation
  • Allows for installation closer to point-of-use
  • Rotary screw produces steady air flow, day in, day out
  • V-Shield Technology
  • Stainless steel air piping & metal-flex hoses have leak-free connections with superior elastometric seals
  • Free-Floating Cooling System Rated For 115F (46C) Ambient
  • Optimized, energy-efficient & low-noise centrifugal blower with electronic no-loss condensate drain
Specifications
Engine
HP
25
Motor
Voltage
208 Volt AC
Phase
3-Phase
Amp Draw
94
Recommended Breaker
150 Amp Breaker
dBA
74
Pump
CFM
107
CFM Rated @
125 PSI
Pump Type
Rotary
Max PSI
125 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Certification
ASME
Weight
1463 Pounds
Product Length
87 Inches
Product Width
46 Inches
Product Height
84.5 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
107
CFM Rated @ 125 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
107 CFM Rated @ 125 PSI
Tank Size
120 Gallons
Features
Features
  • R-Series Next Generation Rotary Screw Air Compressor
  • Easy to install, simple to operate and reliable efficiency
  • New compact footprint design is 20% smaller than previous models
  • Boosts productivity, lowers operating expenses and extends equipment life
  • State Of The Art Airend
  • Delivers up to 17.5% improved efficiency & 18% more airflow capacity
  • Rotors are manufactured from AISI-1045 steel or EN 10083-2 C45+N steel
  • Two-Stage Filtration & Seperation Elements
  • Ensures increased uptime with and easy maintenance
  • Long-life Ultra Coolant with 8,000-hour life included
  • Premium IE3 NEMA 4 High-Efficiency TEFC Motor
  • Delivers low noise, high pressure with axial fan mounted
  • Class F insulation with B rise, Star-delta reduced voltage starter, & NEMA 4/IP55 electronics provide reliable service
  • Programmable Xe-Series Color Controller w/ Remote Connectivity
  • Features start/stop control, auto-restart & manual load/unload
  • Multiple screens of compressor information and setup data and tabbed folders for ease of navigation
  • Continuous Duty & Quiet Operation
  • Allows for installation closer to point-of-use
  • Rotary screw produces steady air flow, day in, day out
  • V-Shield Technology
  • Stainless steel air piping & metal-flex hoses have leak-free connections with superior elastometric seals
  • Free-Floating Cooling System Rated For 115F (46C) Ambient
  • Optimized, energy-efficient & low-noise centrifugal blower with electronic no-loss condensate drain
Specifications
Engine
HP
25
Motor
Voltage
208 Volt AC
Phase
3-Phase
Amp Draw
94
Recommended Breaker
150 Amp Breaker
dBA
74
Pump
CFM
107
CFM Rated @
125 PSI
Pump Type
Rotary
Max PSI
125 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Certification
ASME
Weight
1463 Pounds
Product Length
87 Inches
Product Width
46 Inches
Product Height
84.5 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Product Specs
+
Specifications
Engine
HP
25
Motor
Voltage
208 Volt AC
Phase
3-Phase
Amp Draw
94
Recommended Breaker
150 Amp Breaker
dBA
74
Pump
CFM
107
CFM Rated @
125 PSI
Pump Type
Rotary
Max PSI
125 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Certification
ASME
Weight
1463 Pounds
Product Length
87 Inches
Product Width
46 Inches
Product Height
84.5 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
