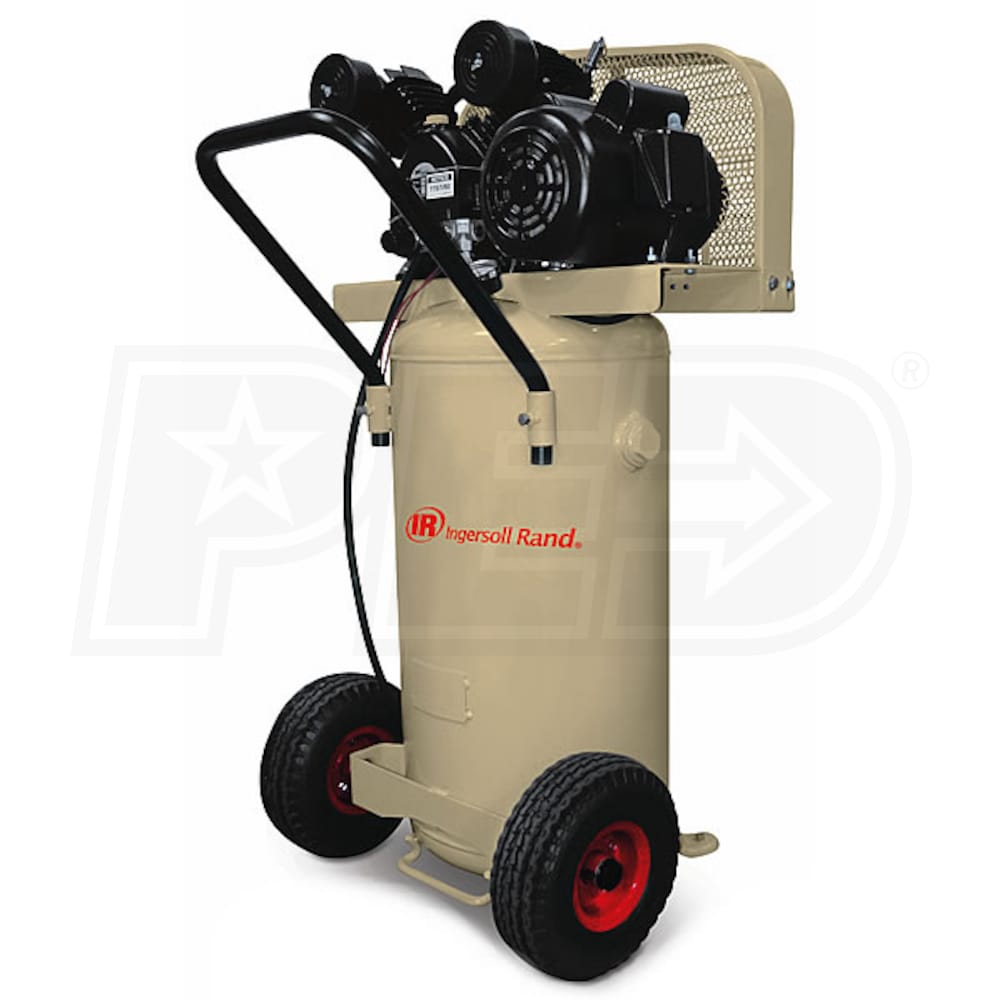

Ingersoll Rand Garage Mate 2-HP 20-Gallon (Belt Drive) Cast-Iron Air Compressor
Model:
42663401
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Portable - Vertical
CFM
5.2
Tank Size
20
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- IR Garage Mate Portable Air Compressor
- Delivers maximum air for home, shop or job site
- Designed for professionals and serious do-it-yourselfers
- Splash Lubricated Cast-Iron Pump
- Produces 5.2 CFM @ 135 PSI; Max 135 PSI
- Power impact guns, ratchets, grinders, drills, nailers and more
- Cast-Iron Construction
- 100% continuous duty, reliable performance that's built to last

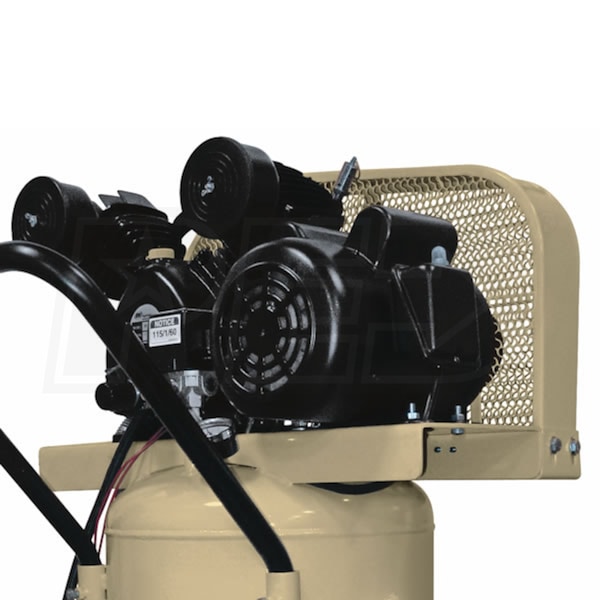

- Enclosed belt guard shields flywheel and motor sheave for extra protection
- Quiet Operation
- At 80dBA, this air compressor is quieter than other brands
- Plugs into standard 120-volt household outlet; 15 amps
- Manual Thermal Overload Motor Protection
- No starter required
- Automatic start / stop pressure switch with manual on / off lever
- 20-Gallon Air Tank
- Easily accessible side drain valve for routine draining
- Includes a pressure gauge, discharge-mounted check valve, service & relief valve

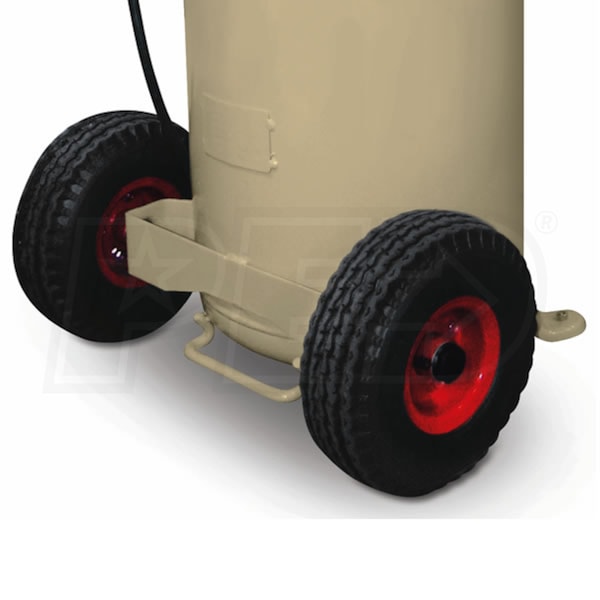

- Large Pneumatic & Ergonomic Handle
- Handles rough terrain or obstacles
- Makes it easy to load and maneuver around
- Oil is included; no startup kit needed
- Meets OSHA standards and compliant with UL / CSA
- All units are pre-wired and thoroughly tested before shipment
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
42663401
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
80
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15
Engine
HP
2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.2
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI

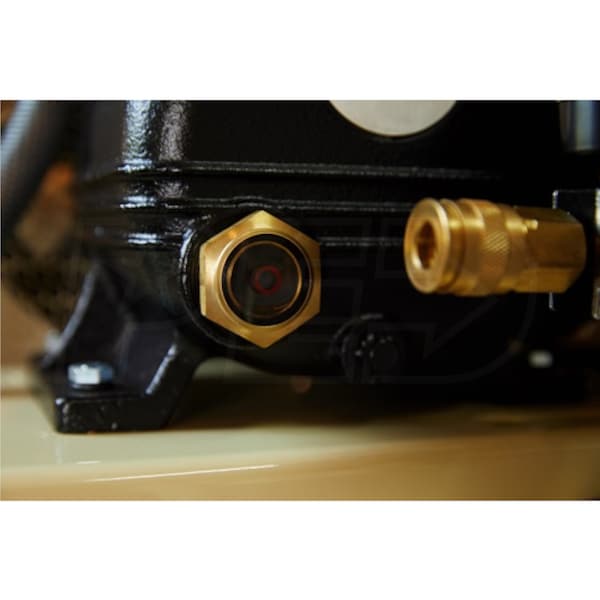

Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Duty Cycle
100%
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
200 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
22 Inches
Product Width
23 Inches
Product Height
43 Inches
Power Type
Electric
Additional Model Numbers
P1.5IU-A9, 42663401
Reviews
(18)
Ingersoll Rand 42663401 Reviews & Ratings
Product Q&A
(3)
Product Questions
Answered by Melissa, the Air Compressor Expert
Is this a constant run compressor? I need 40 lbs of air for 24 hours a day for usually 3 days at a time
John W.
from North Carolina
July 07, 2019
Is there any place to find replacement air filters. IR product number in the owners Manuel is wrong. I've tried using product dimensions via silvery. It seems like there isn't anyone that can give you a part number. Thank you for your help. It's hard to believe the owners Manuel part numbers don't exist.
Patrick Gillespie
from Oregon
June 30, 2016
We are requiring air compressor with 2.5 cfm @101 psi so we bumped up our requirement to 5 cfm and 150 psi. Our querry is whether this is a good option to go with it.
Kush
from Illinois
July 30, 2015
