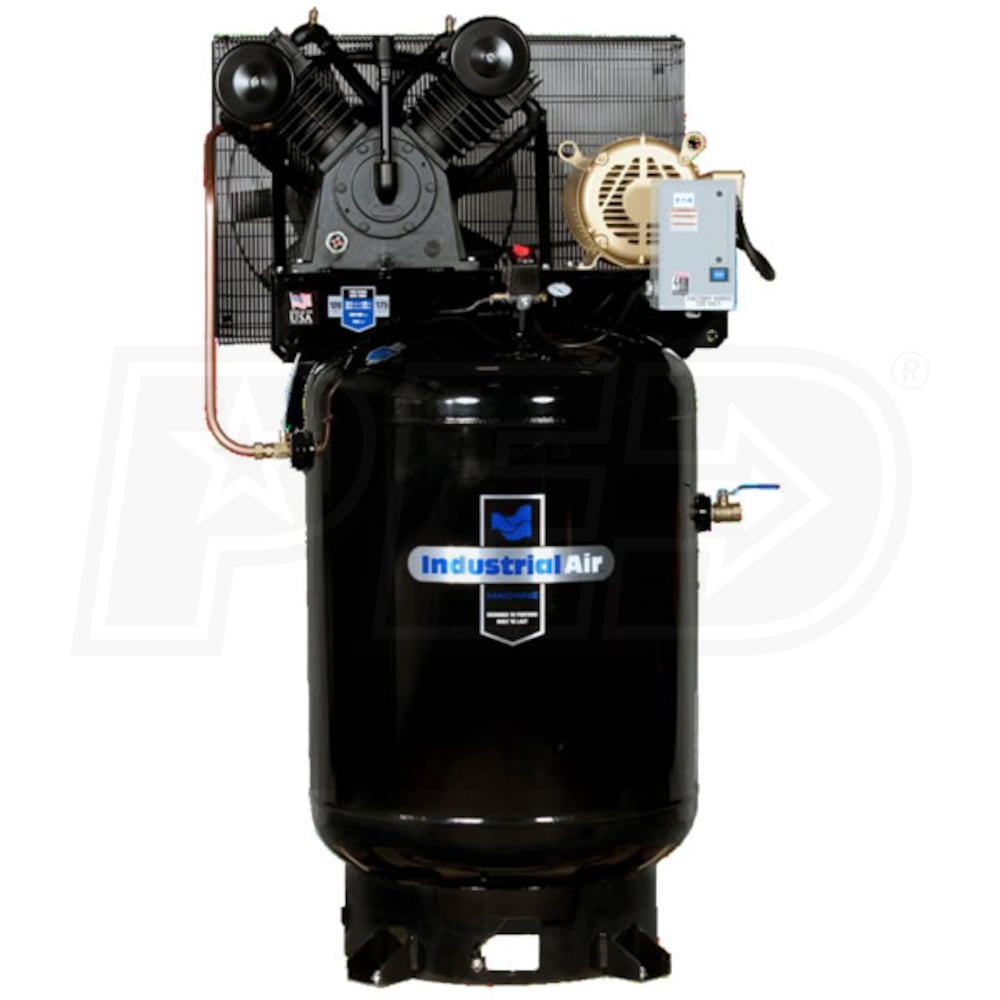

Industrial Air 10-HP 120-Gallon Two-Stage Air Compressor (460V-3 Phase)

Industrial Air 10-HP 120-Gallon Two-Stage Air Compressor (460V-3 Phase)
Model: IV9969910
$2,958.00
$2,662.20
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$75.00
Free ShippingNo Sales Tax* (Except IL)$2,958.00$2,662.20Buy Now
Free FreightNo Sales Tax* (Except IL)$2,662.20Visit Site
No Sales Tax* (Except IL)$2,737.20Visit Site

(as of 07:52 CST - Details) Sales Tax Extra $2,917.77Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
35
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
35 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Features
Features
  • Patented 2-Stage Pump Design
  • Runs cooler, lasts longer
  • Patented Piston Design
  • Improved compression efficiency
  • Patented Asymmetrical Cooling Fins
  • Draws heat away from the precision bored cylinders
  • Patented Cast Iron Flywheel
  • Large, extended fins improve pump cooling & lower RPMs
  • Baldor Industrial Class Electric Motor
  • High quality 4 pole, 1725 RPM, NEMA rated
  • Wires easily into your 230 volt, 3-phase system
  • Pre-Wired Magnetic Starter
  • Saves time and money
  • 120 Gallon Vertical ASME Tank
  • Saves space over horizontal designs
  • 35 CFM at 100 PSI; 33.6 CFM at 175 PSI; 3/4" air outlet
  • Unique Metal Belt Guard Design
  • Improves pump cooling by as much as 60% over other designs
  • 2 Year Limited Factory Warranty
  • Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
12.5
Recommended Breaker
15 Amp Breaker
Engine
HP
10
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
896 Pounds
Product Length
38.8 Inches
Product Width
42 Inches
Product Height
76.7 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
UPC
846212024102
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
35
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
35 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Features
Features
  • Patented 2-Stage Pump Design
  • Runs cooler, lasts longer
  • Patented Piston Design
  • Improved compression efficiency
  • Patented Asymmetrical Cooling Fins
  • Draws heat away from the precision bored cylinders
  • Patented Cast Iron Flywheel
  • Large, extended fins improve pump cooling & lower RPMs
  • Baldor Industrial Class Electric Motor
  • High quality 4 pole, 1725 RPM, NEMA rated
  • Wires easily into your 230 volt, 3-phase system
  • Pre-Wired Magnetic Starter
  • Saves time and money
  • 120 Gallon Vertical ASME Tank
  • Saves space over horizontal designs
  • 35 CFM at 100 PSI; 33.6 CFM at 175 PSI; 3/4" air outlet
  • Unique Metal Belt Guard Design
  • Improves pump cooling by as much as 60% over other designs
  • 2 Year Limited Factory Warranty
  • Purchase & use of maintenance kit doubles the pump warranty
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
12.5
Recommended Breaker
15 Amp Breaker
Engine
HP
10
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
896 Pounds
Product Length
38.8 Inches
Product Width
42 Inches
Product Height
76.7 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
UPC
846212024102
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
12.5
Recommended Breaker
15 Amp Breaker
Engine
HP
10
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
896 Pounds
Product Length
38.8 Inches
Product Width
42 Inches
Product Height
76.7 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
UPC
846212024102
