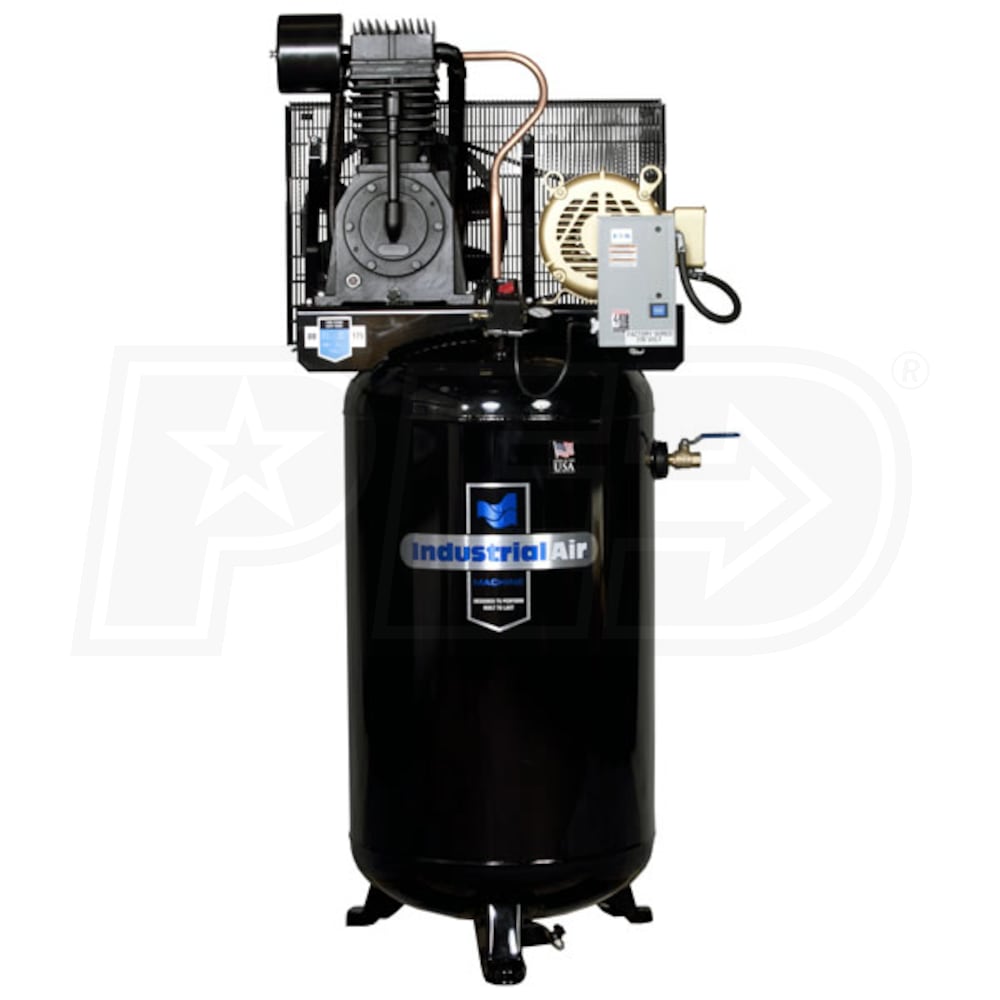

Industrial Air 7.5-HP 80-Gallon Two Stage Air Compressor (460V 3-Phase)

Model:

IV7568075

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Industrial Air 7.5-HP 80-Gallon Two Stage Air Compressor (460V 3-Phase)
Industrial Air 7.5-HP 80-Gallon Two Stage Air Compressor (460V 3-Phase)
Model: IV7568075
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

460 Volt AC

Phase

3-Phase

CFM

22.1

Tank Size

80



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Patented 2-Stage Pump Design
  • Runs cooler, lasts longer
  • Patented Piston Design
  • Improved compression efficiency
  • Patented Asymmetrical Cooling Fins
  • Draws heat away from the precision bored cylinders
  • Patented Cast Iron Flywheel
  • Large, extended fins improve pump cooling & lower RPMs
  • Baldor Industrial Class 10-HP Electric Motor
  • High quality 4 pole, 1725 RPM, NEMA rated
  • Wires easily into your 460 volt, three phase system
  • Pre-Wired Magnetic Starter
  • Saves time and money
  • 80 Gallon ASME Tank
  • Enough power to operate more than 1 tool at a time
  • 22.1 CFM at 100 PSI; 21.2 CFM at 175 PSI; 3/4" air outlet
  • Unique Metal Belt Guard Design
  • Improves pump cooling by as much as 60% over other designs
  • 2 Year Limited Factory Warranty
  • Purchase & use of maintenance kit doubles the pump warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

IV7568075
specs product image PID-13370
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
9.7
Engine
HP
7.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
22.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
623 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
40.25 Inches
Product Width
32.25 Inches
Product Height
80 Inches
Power Type
Electric
UPC
846212024041
