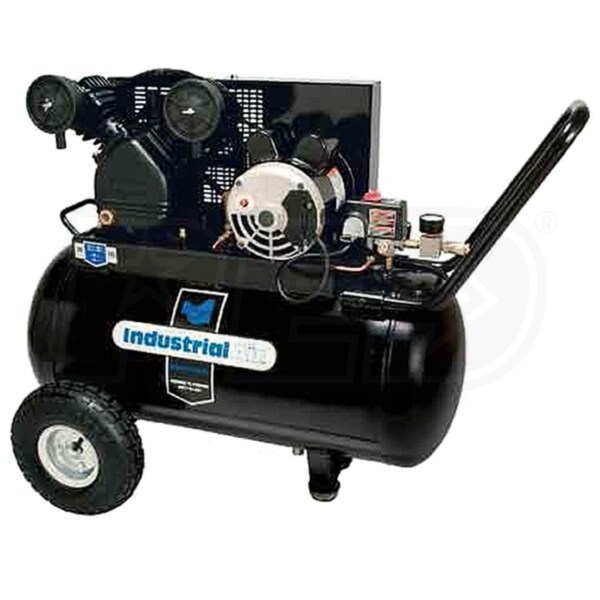

Industrial Air 1.6-HP 20-Gallon (Belt Drive) Dual Voltage Air Compressor
Model: IP1682066.MN
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$625.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States

Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Free Shipping$625.99Buy Now
Free Freight$625.99Visit Site
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Consumer
Style
Portable - Horizontal
CFM
5.3
CFM Rated @ 90 PSI
Tank Size
20
Gallons
Grade
Consumer
CFM
5.3 CFM Rated @ 90 PSI
Tank Size
20 Gallons
Features
Features
  • Cast Iron V-Twin Cylinder Pump
  • Durable & dependable performance drives many air tools
  • Produces 6.2 CFM at 40 PSI; 5.3 CFM at 90 PSI
  • Operating pressure 105-135 PSI with 135 PSI max
  • Belt Driven & Oil Lubricated
  • Less noise than direct drive compressors
  • 10" cast iron balanced flywheel for smooth, powerful operation
  • Heavy Duty Dual Voltage 1.6-HP Induction Motor
  • Wired for standard 120V outlet; may be converted to 240V use
  • Quick-Set Regulator, Tank & Tool Pressure Gauges
  • Monitor compressor performance at a glance
  • Quick Connect Air Outlet
  • Switch tools quickly & easily
  • Horizontal Frame With Handle
  • Pneumatic tires for maximum portability; quiets vibration
  • Factory Warranty
  • 1 year residential use; 90 days commercial use
  • CSA & UL Approved
Specifications
Motor
Voltage
120/240 Volt AC
Magnetic Starter
No
Amp Draw
15
Engine
HP
1.6
Pump
CFM
5.3
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
20 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
159 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
34.25 Inches
Product Width
23.25 Inches
Product Height
35.5 Inches
Power Type
Electric
UPC
846212003435
Grade
Consumer
Style
Portable - Horizontal
CFM
5.3
CFM Rated @ 90 PSI
Tank Size
20
Gallons
Grade
Consumer
CFM
5.3 CFM Rated @ 90 PSI
Tank Size
20 Gallons
Features
Features
  • Cast Iron V-Twin Cylinder Pump
  • Durable & dependable performance drives many air tools
  • Produces 6.2 CFM at 40 PSI; 5.3 CFM at 90 PSI
  • Operating pressure 105-135 PSI with 135 PSI max
  • Belt Driven & Oil Lubricated
  • Less noise than direct drive compressors
  • 10" cast iron balanced flywheel for smooth, powerful operation
  • Heavy Duty Dual Voltage 1.6-HP Induction Motor
  • Wired for standard 120V outlet; may be converted to 240V use
  • Quick-Set Regulator, Tank & Tool Pressure Gauges
  • Monitor compressor performance at a glance
  • Quick Connect Air Outlet
  • Switch tools quickly & easily
  • Horizontal Frame With Handle
  • Pneumatic tires for maximum portability; quiets vibration
  • Factory Warranty
  • 1 year residential use; 90 days commercial use
  • CSA & UL Approved
Specifications
Motor
Voltage
120/240 Volt AC
Magnetic Starter
No
Amp Draw
15
Engine
HP
1.6
Pump
CFM
5.3
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
20 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
159 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
34.25 Inches
Product Width
23.25 Inches
Product Height
35.5 Inches
Power Type
Electric
UPC
846212003435
Product Specs
+
Specifications
Motor
Voltage
120/240 Volt AC
Magnetic Starter
No
Amp Draw
15
Engine
HP
1.6
Pump
CFM
5.3
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
20 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
159 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
34.25 Inches
Product Width
23.25 Inches
Product Height
35.5 Inches
Power Type
Electric
UPC
846212003435
