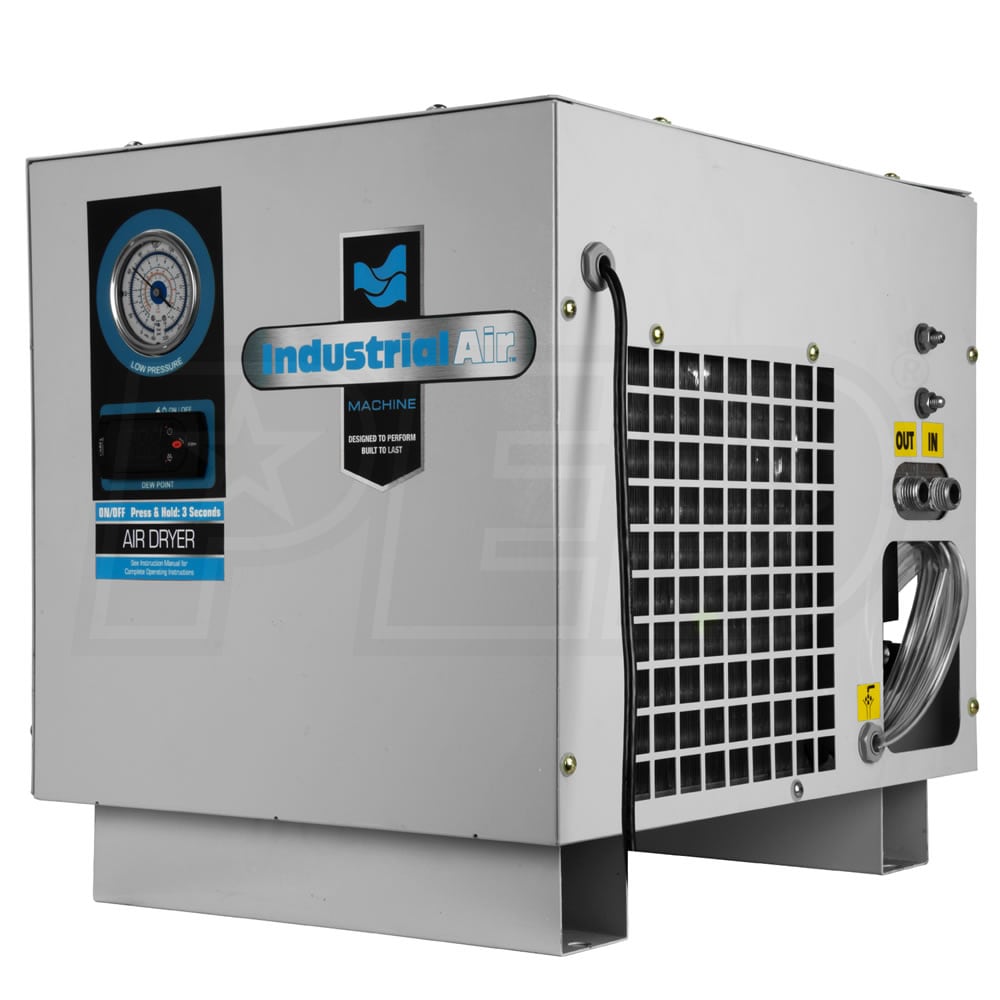

Industrial Air 43-CFM Non-Cycling Refrigerated Compressed Air Dryer (10-HP)

Model:

IAD45

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Industrial Air 43-CFM Non-Cycling Refrigerated Compressed Air Dryer (10-HP)
Industrial Air 43-CFM Non-Cycling Refrigerated Compressed Air Dryer (10-HP)
Model: IAD45
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Air Dryer CFM

43
  • Designed For Reciprocating Air Compressors Up To 43 CFM / 10-HP
  • Cool, dry air helps your tools last longer & prevents flaws in paint finishes
  • 1/2" NPT inlet & outlet are easy to reach and connect
  • Capacity is based on CAGI Standard ADF100: inlet temp 100°F, inlet pressure 100°F, ambient temp 100°F
  • (If your application is other than 100/100/100 conditions, you must apply correction factors to properly size your dryer)
  • Requires 115-Volt, Single Phase Power
  • Plugs into a regular outlet
  • Compact & Effective
  • Weighs only 70 pounds; measures 15.04" x 17.72" x 16.93"
  • Maximum inlet temperature is 158°F, and the Class 6 PDP is 50°F
  • Automatic Moisture Drain
  • Simplifies maintenance
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

IAD45
specs product image PID-79435
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
43
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
232
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
158
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
110
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
Yes
Overview
Weight
77 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
15.04 Inches
Product Width
17.72 Inches
Product Height
16.93 Inches
Power Type
Electric
