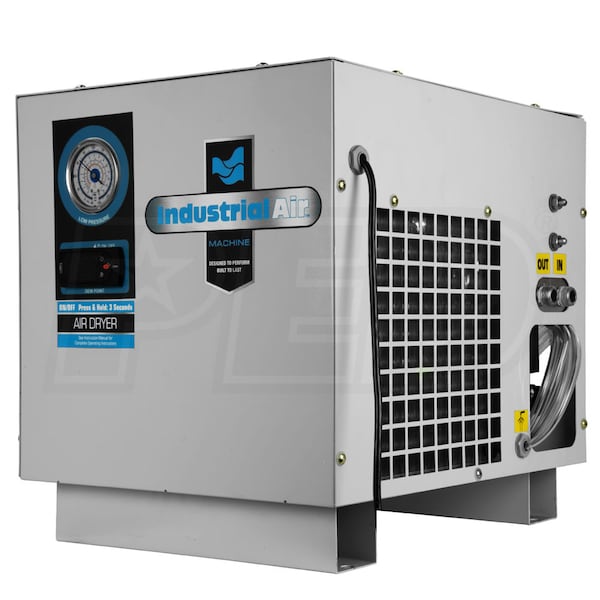

Industrial Air 27-CFM Non-Cycling Refrigerated Compressed Air Dryer (7.5-HP)
Model: IAD30
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
Air Dryer CFM
27
Style
Refrigerated
Air Dryer CFM
27
Features
Features
- Designed For Reciprocating Air Compressors Up To 27 CFM / 7.5-HP
- Cool, dry air helps your tools last longer & prevents flaws in paint finishes
- 1/2" NPT inlet & outlet are easy to reach and connect
- Capacity is based on CAGI Standard ADF100: inlet temp 100°F, inlet pressure 100°F, ambient temp 100°F
- (If your application is other than 100/100/100 conditions, you must apply correction factors to properly size your dryer)
- Requires 115-Volt, Single Phase Power
- Plugs into a regular outlet
- Compact & Effective
- Weighs only 70 pounds; measures 15.04" x 17.72" x 16.93"
- Maximum inlet temperature is 158°F, and the Class 6 PDP is 50°F
- Automatic Moisture Drain
- Simplifies maintenance
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
27
Max PSI
232
Max Inlet Temp. Rating
158
Max Ambient Temp. Rating
110
Non-Cycling
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
70 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
15.04 Inches
Product Width
17.72 Inches
Product Height
16.93 Inches
Power Type
Electric
Style
Air Dryer CFM
27
Style
Refrigerated
Air Dryer CFM
27
Features
Features
- Designed For Reciprocating Air Compressors Up To 27 CFM / 7.5-HP
- Cool, dry air helps your tools last longer & prevents flaws in paint finishes
- 1/2" NPT inlet & outlet are easy to reach and connect
- Capacity is based on CAGI Standard ADF100: inlet temp 100°F, inlet pressure 100°F, ambient temp 100°F
- (If your application is other than 100/100/100 conditions, you must apply correction factors to properly size your dryer)
- Requires 115-Volt, Single Phase Power
- Plugs into a regular outlet
- Compact & Effective
- Weighs only 70 pounds; measures 15.04" x 17.72" x 16.93"
- Maximum inlet temperature is 158°F, and the Class 6 PDP is 50°F
- Automatic Moisture Drain
- Simplifies maintenance
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
27
Max PSI
232
Max Inlet Temp. Rating
158
Max Ambient Temp. Rating
110
Non-Cycling
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
70 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
15.04 Inches
Product Width
17.72 Inches
Product Height
16.93 Inches
Power Type
Electric
