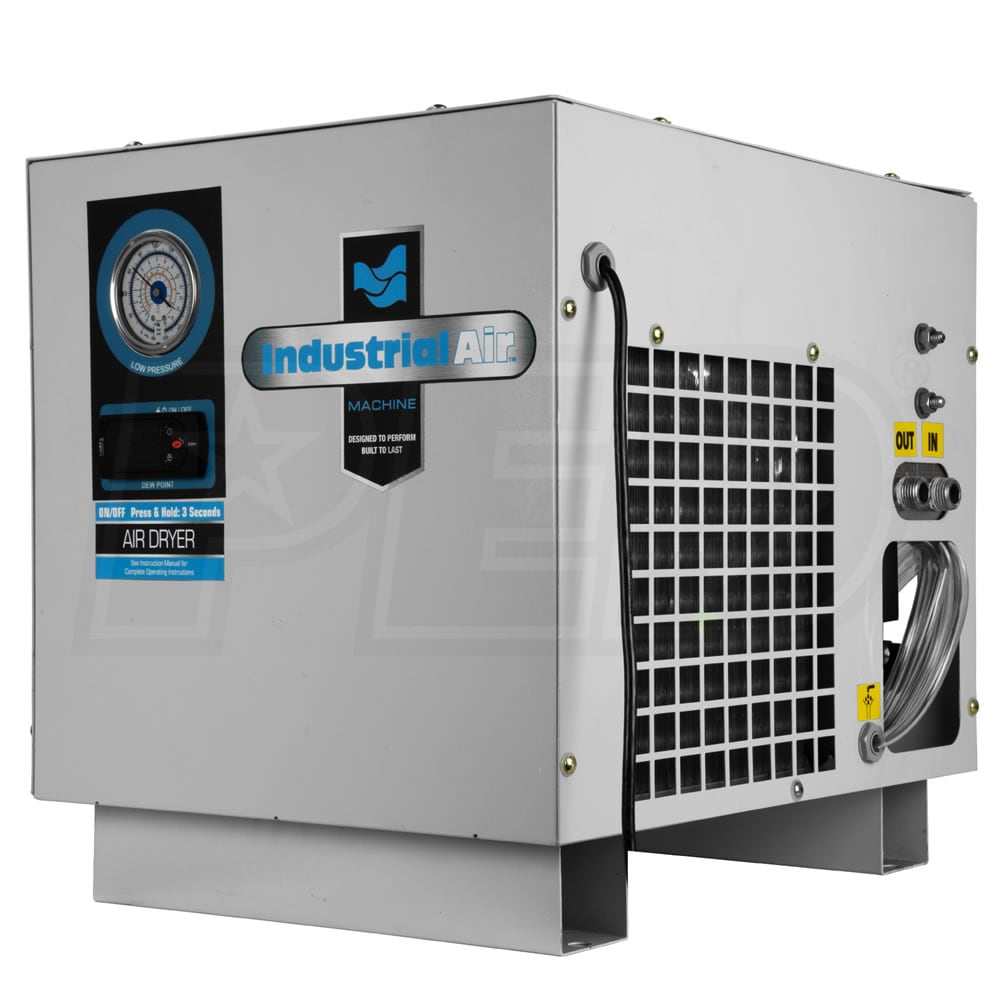

Industrial Air 15-CFM Non-Cycling Refrigerated Compressed Air Dryer (5-HP)
Model:
IAD15
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Refrigerated
Air Dryer CFM
13
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Designed For Reciprocating Air Compressors Up To 13 CFM / 5-HP
- Cool, dry air helps your tools last longer & prevents flaws in paint finishes
- Use with reciprocating air compressors that generate high heat
- Low 2.9 PSI pressure drop has minimal effect on system operation
- 1/2" NPT inlet & outlet are easy to reach and connect
- Requires 115-Volt, Single Phase Power
- Plugs into a regular outlet
- Compact & Effective
- Weighs only 60 pounds; measures 15.04" x 17.72" x 16.93"
- Maximum inlet temperature is 158°F
- Electronic Automatic Drain Valve
- Simplifies maintenance
- Easily accessible and includes drain tube
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
IAD15
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
13
Max PSI
Max PSI
The most amount of PSI that be passed through a dryer
232
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
158
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
110
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
Yes
Overview
Weight
60 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
15.04 Inches
Product Width
17.72 Inches
Product Height
16.93 Inches
Power Type
Electric
