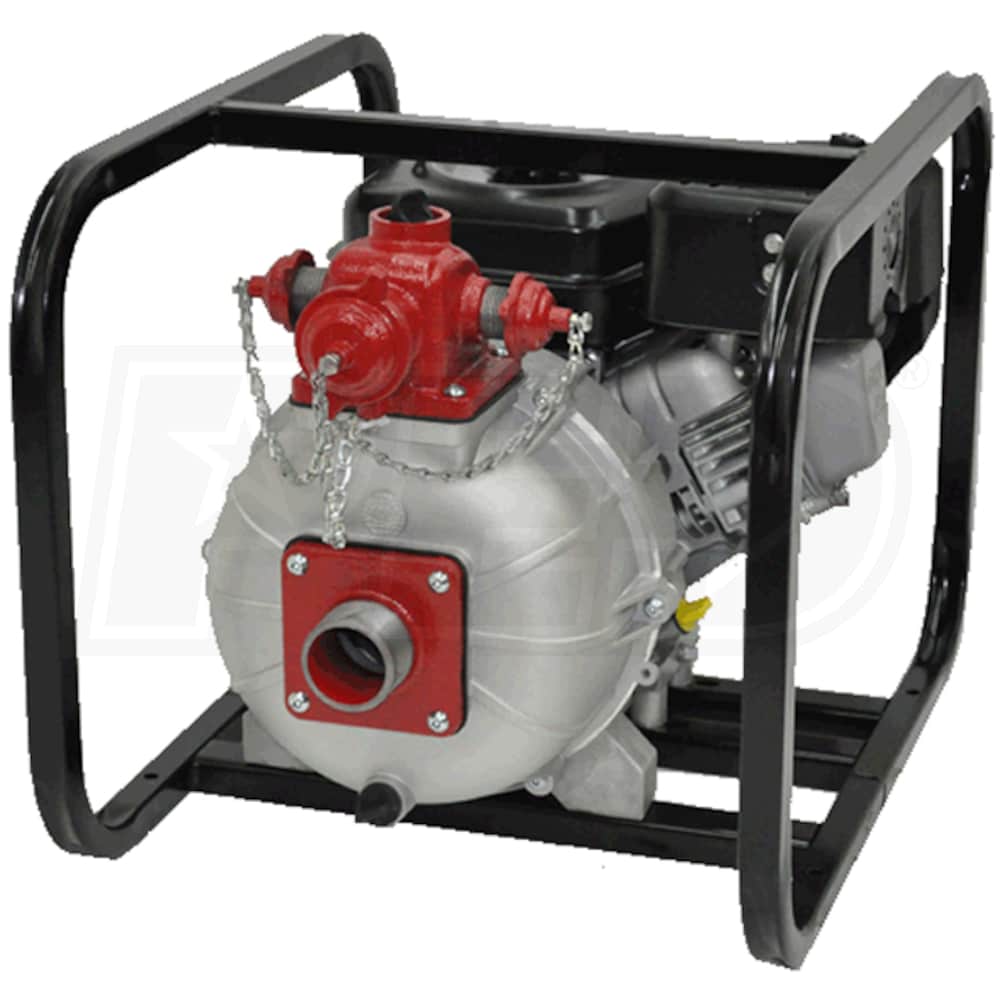

IPT Pumps 2MP13ZR - 140 GPM (2") Electric Start Diesel High Pressure 2-Stage Water Pump w/ HATZ 1B50 Engine

IPT Pumps 2MP13ZR - 140 GPM (2") Electric Start Diesel High Pressure 2-Stage Water Pump w/ HATZ 1B50 Engine
Model: 2MP13ZR
$5,185.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$50.00
Free ShippingNo Sales Tax* (Except IL)$5,185.00Buy Now
Free FreightNo Sales Tax* (Except IL)$5,185.00Visit Site
No Sales Tax* (Except IL)$5,235.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
2"
Style
Dewatering Pumps
GPM
140
Gallons
Engine
Features
Features
  • IPT 2-Inch Portable, Diesel-Powered Two-Stage High-Pressure Water Pump
  • Designed for sprinkler, irrigation and firefighting applications; Provides up to 139 PSI
  • Commercial Grade HATZ 1B50 517cc 4-Stroke Diesel Engine w/ Electric Start
  • Compact, lightweight design provides long service life & easy starting (Battery Not Included)
  • Fuel efficient, provides longer runtime compared to gasoline engines
  • Low Oil Alert
  • Provides added protection against engine damage
  • Large, Cast Aluminum Pump Casing w/ Cast Iron Diffusers
  • Increases pump capacity & helps resist abrasion for maximum pump life
  • High Efficiency, Two-Stage Precision Cast Aluminum Impellers
  • Allows for increase head-lift and pressure (PSI)
  • Built-in check valve helps provide quick pump priming
  • 2-Inch Heavy-Duty Male NPT Suction Port
  • Removable design allows ports to be replaced if damaged/stripped
  • Multi-Discharge Manifold
  • (1) 1.5" and (2) 1" Ports to suit your application
  • Viton Mechanical Seal w/ Silicon Carbide & Carbon Faces
  • Combined with EPDM/EPR O-rings for maximum longevity
  • Heavy Duty Steel Roll Frame w/ Vibration Dampening Feet
  • Protects the pump/engine during transportation & operation
  • Helps prevent "pump-walk" when pump is running
  • 1-Year Limited Warranty
Specifications
Motor
Battery Included
No
Engine
Engine Brand
Hatz
Starting System
12-Volt Button Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
13 hp
Fuel Tank Size
1.32 Gallons
Run Time
1.8 Hours
Pump
Gallons Per Minute
140 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
20 Feet
Total Head Lift
310 Feet
Maximum PSI
139
Accessories
Tool Kit
Yes
Strainer
No
Overview
Weight
270 Pounds
Product Length
31 Inches
Product Width
22.5 Inches
Product Height
23.6 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
UPC
726846540325

Inlet Size
2"
Style
Dewatering Pumps
GPM
140
Gallons
Engine
Features
Features
  • IPT 2-Inch Portable, Diesel-Powered Two-Stage High-Pressure Water Pump
  • Designed for sprinkler, irrigation and firefighting applications; Provides up to 139 PSI
  • Commercial Grade HATZ 1B50 517cc 4-Stroke Diesel Engine w/ Electric Start
  • Compact, lightweight design provides long service life & easy starting (Battery Not Included)
  • Fuel efficient, provides longer runtime compared to gasoline engines
  • Low Oil Alert
  • Provides added protection against engine damage
  • Large, Cast Aluminum Pump Casing w/ Cast Iron Diffusers
  • Increases pump capacity & helps resist abrasion for maximum pump life
  • High Efficiency, Two-Stage Precision Cast Aluminum Impellers
  • Allows for increase head-lift and pressure (PSI)
  • Built-in check valve helps provide quick pump priming
  • 2-Inch Heavy-Duty Male NPT Suction Port
  • Removable design allows ports to be replaced if damaged/stripped
  • Multi-Discharge Manifold
  • (1) 1.5" and (2) 1" Ports to suit your application
  • Viton Mechanical Seal w/ Silicon Carbide & Carbon Faces
  • Combined with EPDM/EPR O-rings for maximum longevity
  • Heavy Duty Steel Roll Frame w/ Vibration Dampening Feet
  • Protects the pump/engine during transportation & operation
  • Helps prevent "pump-walk" when pump is running
  • 1-Year Limited Warranty
Specifications
Motor
Battery Included
No
Engine
Engine Brand
Hatz
Starting System
12-Volt Button Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
13 hp
Fuel Tank Size
1.32 Gallons
Run Time
1.8 Hours
Pump
Gallons Per Minute
140 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
20 Feet
Total Head Lift
310 Feet
Maximum PSI
139
Accessories
Tool Kit
Yes
Strainer
No
Overview
Weight
270 Pounds
Product Length
31 Inches
Product Width
22.5 Inches
Product Height
23.6 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
UPC
726846540325
Product Specs
+
Specifications
Motor
Battery Included
No
Engine
Engine Brand
Hatz
Starting System
12-Volt Button Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
13 hp
Fuel Tank Size
1.32 Gallons
Run Time
1.8 Hours
Pump
Gallons Per Minute
140 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
20 Feet
Total Head Lift
310 Feet
Maximum PSI
139
Accessories
Tool Kit
Yes
Strainer
No
Overview
Weight
270 Pounds
Product Length
31 Inches
Product Width
22.5 Inches
Product Height
23.6 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
UPC
726846540325
