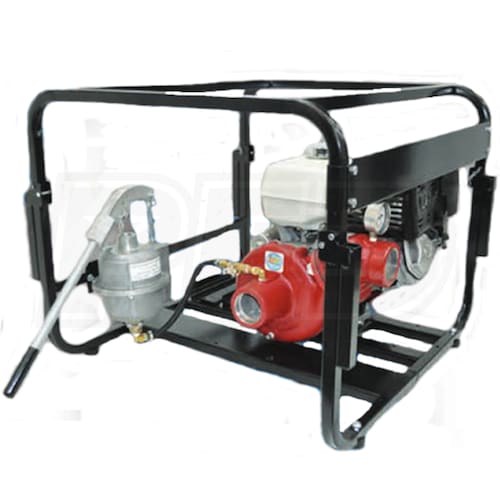

IPT Pumps 25FP13ZR - 195 GPM (2-1/2") Electric Start Diesel High Pressure Fire Pump w/ Manual Hand Prime

Model:

25FP13ZR

Write A Review
$7,588.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 6-8 Weeks

IPT Pumps 25FP13ZR - 195 GPM (2-1/2
IPT Pumps 25FP13ZR - 195 GPM (2-1/2") Electric Start Diesel High Pressure Fire Pump w/ Manual Hand Prime
Model: 25FP13ZR
$7,588.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

2-1/2 Inch

Style

Dewatering

GPM

195 Gallons

Engine

Hatz

  • IPT 2-1/2-Inch Portable, Diesel-Powered High-Pressure / Fire Water Pump
  • Designed for high pressure/ fire fighting applications; Provides up to 100 PSI
  • Commercial Grade HATZ 1B50 517cc 4-Stroke Diesel Engine w/ Electric Start
  • Compact, lightweight design provides long service life & easy starting (Battery Not Included)
  • Fuel efficient, provides longer runtime compared to gasoline engines
  • Low Oil Alert & 1.32-Gallon Fuel Tank
  • Provides added protection against engine damage
  • Allows for up to 1.8-hours of run time
  • Cast Aluminum Pump Casing w/ Replaceable Hard Coat Anodized Wear Ring
  • Robust construction allows for increased pump longevity
  • Hand Prime Design - Prime Assist to 19-Feet
  • Allows for fast deployment in emergency situations
  • Viton Mechanical Seal w/ Silicon Carbide & Carbon Faces
  • Provides maximum seal live in the most demanding applications
  • 2-1/2" NPT Suction & Discharge Ports
  • Built-in discharge check valve provides more efficient pumping
  • Discharge-Mounted Pressure Gauge
  • Makes it easy to see discharge pressure during operation
  • Heavy Duty Steel Roll Frame w/ Vibration Dampening Feet
  • Protects the pump/engine during transportation & operation
  • Helps prevent "pump-walk" when pump is running
  • Heavy Duty Steel Roll Frame w/ Vibration Dampening Feet
  • Protects the pump/engine during transportation & operation
  • Helps prevent "pump-walk" when pump is running
  • Also Includes 2-1/2" Suction Strainer, Nipples & Battery Tray
  • 1-Year Limited Warranty
  • ***Please Note - Requires 12V Battery at least 18AH (Not Included)***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

25FP13ZR
specs product image PID-76554
General Information
Product Category
Water Pump
Motor
Battery Included
No
Pump
Gallons Per Minute
195 Gallons
Inlet Diameter
2-1/2 Inch
Outlet Diameter
2-1/2 Inch
Self Priming
No
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Aluminum
Handles Solids
No
Suction Head
19 Feet
Maximum PSI
100
Total Head Lift
230 Feet
Submersible
No
Engine
Engine Brand
Hatz
Starting System
12-Volt Button Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
517 cc
Fuel Tank Size
1.32 Gallons
Run Time
1.8 Hours
Overview
Product Category
Water Pump
Weight
295 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
31.8 Inches
Product Width
31.6 Inches
Product Height
25.1 Inches
UPC
726846540318
Accessories
Tool Kit
Yes
Strainer
Yes
Float Switch
No
Hose Couplings
No
Hose
Yes
Hose Bands
No
Transport Handle
No
Wheel Kit
No
