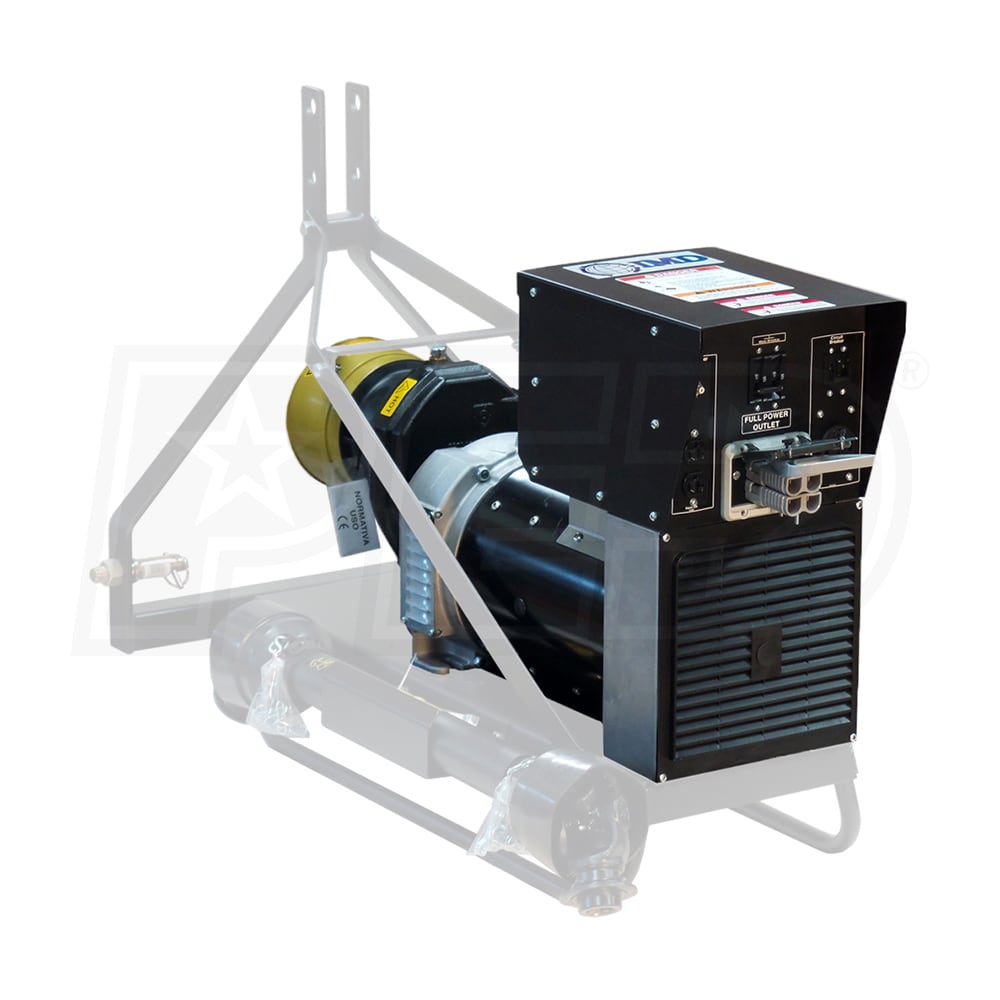

IMD PTO31-2S - 31kW Tractor-Driven PTO Generator (540 RPM)
Model: 31004
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
31,000
Rated Watts
Surge Watts
60,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
31,000
Surge Watts
60,000 Starting Watts
Features
Features
- ***Please Note - 3-Point Hitch (Sold Separately)
- Convert Your Tractor Into a Generator
- Use your tractor engine to generate electricity
- Requires at least 63 PTO HP to operate properly
- Multiple Applications
- Generate electricity to power tools on the farm or ranch
- Backup your home, barn or buildings during a power outage
- 3600 RPM Brushless Alternator w/ Capacitor
- Designed for maintenance-free performance
- 100% Copper Winding, Low Distortion Alternator
- Provides THD <5%, for high quality power output
- Aluminum & Steel Housing
- Lightweight design for maximum durability
- Heavy Duty Cast Iron Single Stage Gearbox
- Lifetime pre-sealed maintenance-free bearings
- 4” Three Bar LED Meter
- Provides accurate display of Hertz, Volts, and Amps output
- Added Features (Full Power Plug Not Included)
- Magnetic circuit breaker w/ individual circuit protection
- Simultaneous 120V & 240V output w/ Full power outlet
- Standard 1-3/8", 6-spline input shaft (Sold Separately)
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
31000 Watts
Surge Watts
60000 Watts
Rated Amps
129 Amps
Voltage Meter
Yes
Tractors HP
63 HP
PTO RPMs
540 RPM
Grade Type
Professional
Overview
Weight
372 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
PTO Generator
Product Length
39 Inches
Product Width
19 Inches
Product Height
29 Inches
Additional Model Numbers
PTO 31-2S, 31004
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-50R
1
Full Power Receptacle
1
Grade
Style
Run Watts
31,000
Rated Watts
Surge Watts
60,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
31,000
Surge Watts
60,000 Starting Watts
Features
Features
- ***Please Note - 3-Point Hitch (Sold Separately)
- Convert Your Tractor Into a Generator
- Use your tractor engine to generate electricity
- Requires at least 63 PTO HP to operate properly
- Multiple Applications
- Generate electricity to power tools on the farm or ranch
- Backup your home, barn or buildings during a power outage
- 3600 RPM Brushless Alternator w/ Capacitor
- Designed for maintenance-free performance
- 100% Copper Winding, Low Distortion Alternator
- Provides THD <5%, for high quality power output
- Aluminum & Steel Housing
- Lightweight design for maximum durability
- Heavy Duty Cast Iron Single Stage Gearbox
- Lifetime pre-sealed maintenance-free bearings
- 4” Three Bar LED Meter
- Provides accurate display of Hertz, Volts, and Amps output
- Added Features (Full Power Plug Not Included)
- Magnetic circuit breaker w/ individual circuit protection
- Simultaneous 120V & 240V output w/ Full power outlet
- Standard 1-3/8", 6-spline input shaft (Sold Separately)
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
31000 Watts
Surge Watts
60000 Watts
Rated Amps
129 Amps
Voltage Meter
Yes
Tractors HP
63 HP
PTO RPMs
540 RPM
Grade Type
Professional
Overview
Weight
372 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
PTO Generator
Product Length
39 Inches
Product Width
19 Inches
Product Height
29 Inches
Additional Model Numbers
PTO 31-2S, 31004
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-50R
1
Full Power Receptacle
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
31000 Watts
Surge Watts
60000 Watts
Rated Amps
129 Amps
Voltage Meter
Yes
Tractors HP
63 HP
PTO RPMs
540 RPM
Grade Type
Professional
Overview
Weight
372 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
PTO Generator
Product Length
39 Inches
Product Width
19 Inches
Product Height
29 Inches
Additional Model Numbers
PTO 31-2S, 31004
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-50R
1
Full Power Receptacle
1
