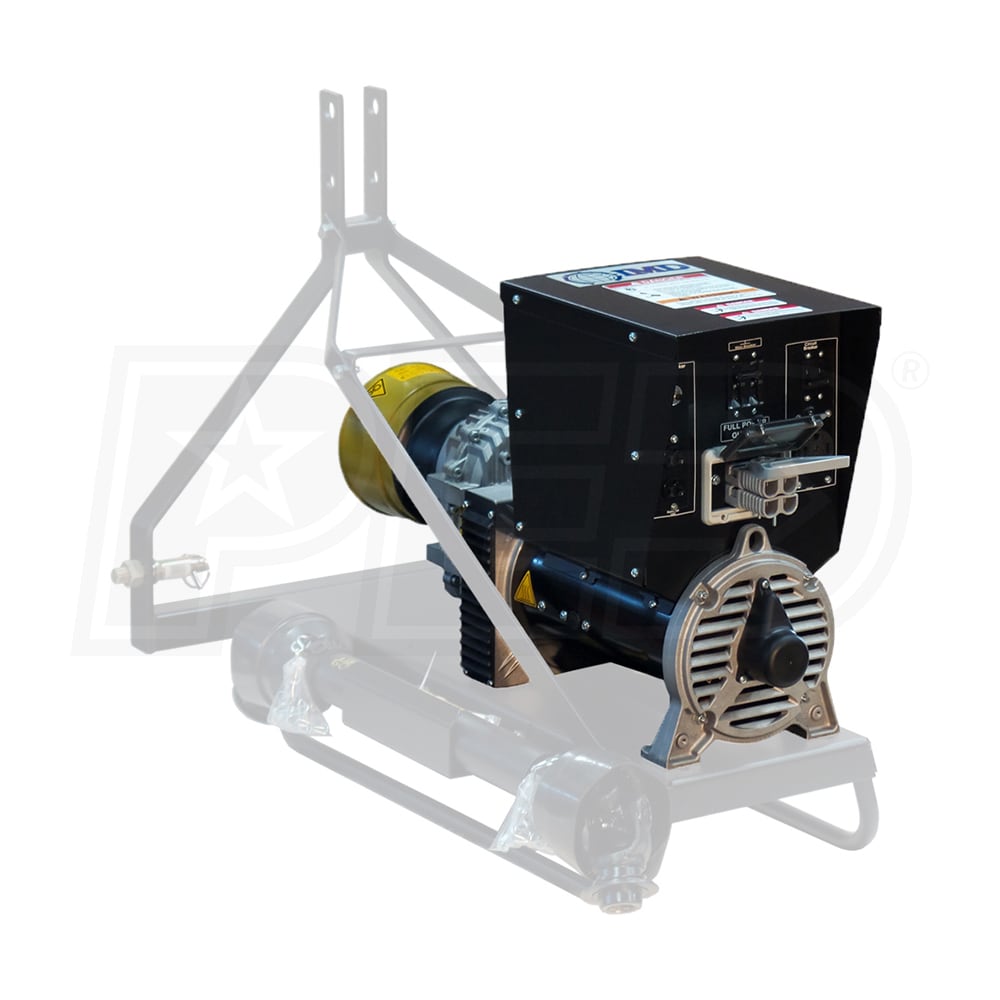

IMD PTO22-S - 22kW Tractor-Driven PTO Generator (540 RPM)

Model:

22006

Write A Review
$3,796.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

IMD PTO22-S - 22kW Tractor-Driven PTO Generator (540 RPM)
IMD PTO22-S - 22kW Tractor-Driven PTO Generator (540 RPM)
Model: 22006
$3,796.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

PTO

Run Watts

22,000 Rated Watts

Surge Watts

40,000
Starting Watts

  • ***Please Note - 3-Point Hitch & Tumbling (Sold Separately)
  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires at least 41 PTO HP to operate properly
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • 3600 RPM Brushless Alternator w/ Capacitor
  • Designed for maintenance-free performance
  • 100% Copper Winding, Low Distortion Alternator
  • Provides THD <5%, for high quality power output
  • Aluminum & Steel Housing
  • Lightweight design for maximum durability
  • Heavy Duty Cast Iron Single Stage Gearbox
  • Lifetime pre-sealed maintenance-free bearings
  • 4" Three Bar LED Meter
  • Provides accurate display of Hertz, Volts, and Amps output
  • Added Features (Full Power Plug Not Included)
  • Magnetic circuit breaker w/ individual circuit protection
  • Simultaneous 120V & 240V output w/ Full power outlet
  • Standard 1-3/8", 6-spline input shaft (Sold Separately)

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 14-50R
Full Power Receptacle
22006
specs product image PID-5891
General Information
Product Category
Generator - PTO
Overview
Product Category
Generator - PTO
Weight
169 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
PTO Generator
Product Length
31 Inches
Product Width
12 Inches
Product Height
22 Inches
Additional Model Numbers

PTO 22-S, 22006

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
22000 Watts
Surge Watts
40000 Watts
Rated Amps
92 Amps
Voltage Meter
Yes
Tractors HP
41 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-50R
1
Full Power Receptacle
1

Reviews

(2)
IMD 22006 Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Jared, the Generator Expert
Will the IMD Pto16-SAVR - 16kw run an electric furnace that uses a 60 amp breaker? The furnace pulls about 45 amps upon start up but then falls and runs about 32 amps continuous. I also have an electric water heater that says it pulls 3600 watts while running. I'm trying to get a tractor drive generator to run my house as well as my water well. At the moment I have a 12kw 3 phase unit I have rewired for 220volts but it is not sufficient enough to even completely start the furnace alone. The heating element will get hot but the fan can't kick in... Thanks for the help.
Chase Ward
from Kansas
January 19, 2011
