Product Description
+−
Grade
Style
Run Watts
10,000
Rated Watts
Surge Watts
20,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
10,000
Surge Watts
20,000 Starting Watts
Features
Features
- Convert Your Tractor Into a Generator
- Use your tractor engine to generate electricity
- Requires at least 20 PTO HP to operate properly
- Multiple Applications
- Generate electricity to power tools on the farm or ranch
- Backup your home, barn or buildings during a power outage
- 3600 RPM Brushless Alternator w/ Capacitor
- Designed for maintenance-free performance
- 100% Copper Winding, Low Distortion Alternator
- Provides THD <5%, for high quality power output
- Aluminum & Steel Housing
- Lightweight design for maximum durability
- Heavy Duty Cast Iron Single Stage Gearbox
- Lifetime pre-sealed maintenance-free bearings
- 4” Three Bar LED Meter
- Provides accurate display of Hertz, Volts, and Amps output
- Added Features (Full Power Plug Not Included)
- Magnetic circuit breaker w/ individual circuit protection
- Simultaneous 120V & 240V output w/ Full power outlet
- Standard 1-3/8", 6-spline input shaft (Not Included)
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
10000 Watts
Surge Watts
20000 Watts
Rated Amps
42 Amps
Voltage Meter
Yes
Tractors HP
20 HP
PTO RPMs
540 RPM
Grade Type
Professional
Overview
Weight
156 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
PTO Generator
Product Length
26 Inches
Product Width
8 Inches
Product Height
16 Inches
Additional Model Numbers
PTO 10-2S, 10011
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-50R
1
Grade
Style
Run Watts
10,000
Rated Watts
Surge Watts
20,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
10,000
Surge Watts
20,000 Starting Watts
Features
Features
- Convert Your Tractor Into a Generator
- Use your tractor engine to generate electricity
- Requires at least 20 PTO HP to operate properly
- Multiple Applications
- Generate electricity to power tools on the farm or ranch
- Backup your home, barn or buildings during a power outage
- 3600 RPM Brushless Alternator w/ Capacitor
- Designed for maintenance-free performance
- 100% Copper Winding, Low Distortion Alternator
- Provides THD <5%, for high quality power output
- Aluminum & Steel Housing
- Lightweight design for maximum durability
- Heavy Duty Cast Iron Single Stage Gearbox
- Lifetime pre-sealed maintenance-free bearings
- 4” Three Bar LED Meter
- Provides accurate display of Hertz, Volts, and Amps output
- Added Features (Full Power Plug Not Included)
- Magnetic circuit breaker w/ individual circuit protection
- Simultaneous 120V & 240V output w/ Full power outlet
- Standard 1-3/8", 6-spline input shaft (Not Included)
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
10000 Watts
Surge Watts
20000 Watts
Rated Amps
42 Amps
Voltage Meter
Yes
Tractors HP
20 HP
PTO RPMs
540 RPM
Grade Type
Professional
Overview
Weight
156 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
PTO Generator
Product Length
26 Inches
Product Width
8 Inches
Product Height
16 Inches
Additional Model Numbers
PTO 10-2S, 10011
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-50R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
10000 Watts
Surge Watts
20000 Watts
Rated Amps
42 Amps
Voltage Meter
Yes
Tractors HP
20 HP
PTO RPMs
540 RPM
Grade Type
Professional
Overview
Weight
156 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
PTO Generator
Product Length
26 Inches
Product Width
8 Inches
Product Height
16 Inches
Additional Model Numbers
PTO 10-2S, 10011
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-50R
1
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Why would I want the auto voltage regulation?
Peter
from New Hampshire
September 15, 2020
Answer
An automatic voltage regulator will give you a more steady and consistent power flow and voltage to help safeguard connected electrical equipment.
Was this answer helpful?
Yes
1
No
0
Recommended Accessories
+−
Expert Recommended Accessories
Hand Picked By Our Expert Jared
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
Manuals
+−
+
Ask Jared, Our Product Expert, A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

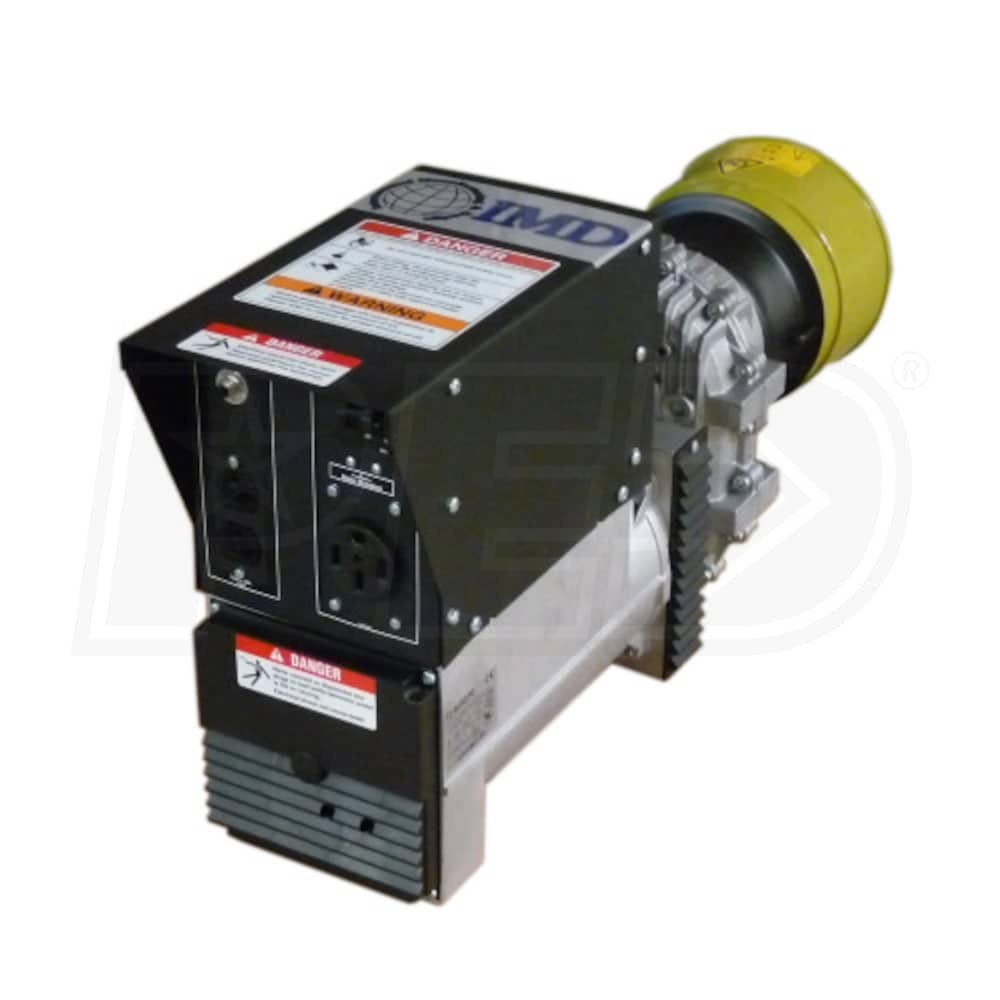

IMD PTO10-2S - 10kW Tractor-Driven PTO Generator (540 RPM)
×
