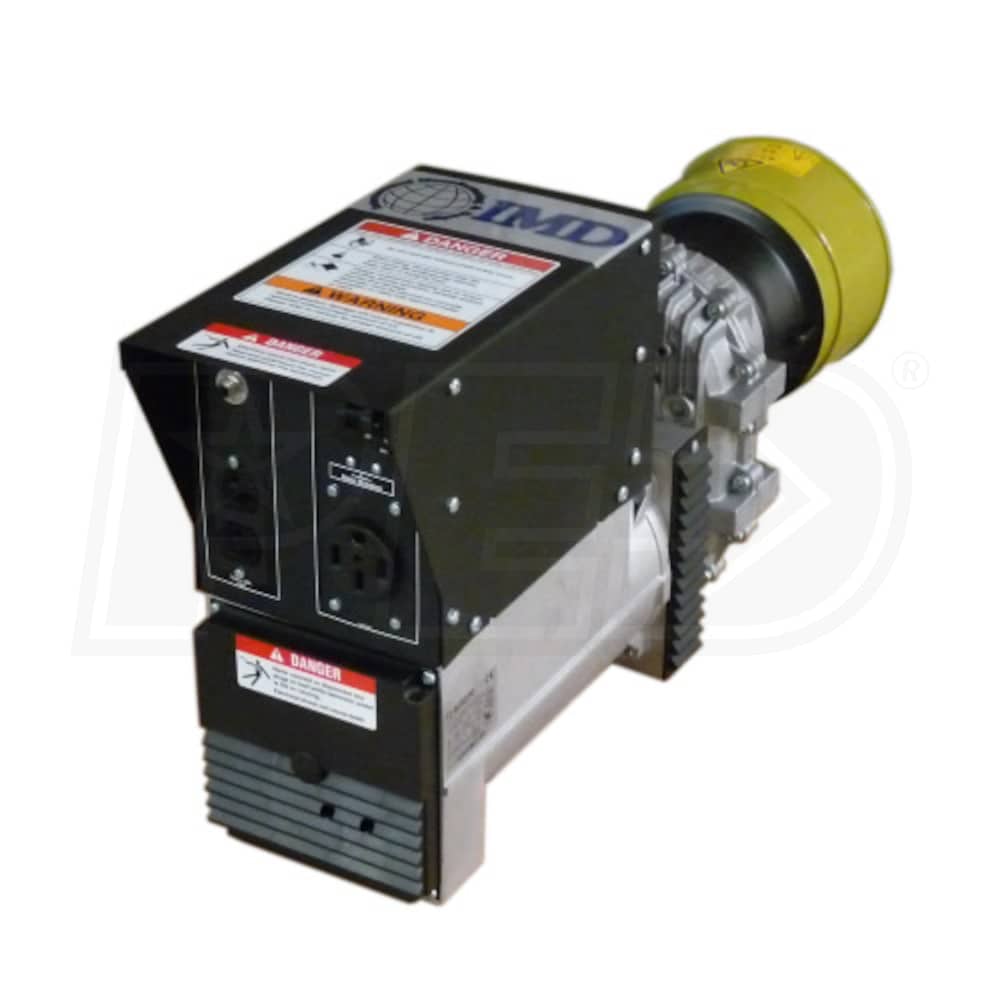

IMD PTO10-2SAVR - 10kW Tractor-Driven PTO Generator w/ AVR (540 RPM)

Model:

10012

Write A Review
$2,335.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

IMD PTO10-2SAVR - 10kW Tractor-Driven PTO Generator w/ AVR (540 RPM)
IMD PTO10-2SAVR - 10kW Tractor-Driven PTO Generator w/ AVR (540 RPM)
Model: 10012
$2,335.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

PTO

Run Watts

10,000 Rated Watts

Surge Watts

20,000
Starting Watts

  • Convert Your Tractor Into a Generator
  • Use your tractor engine to generate electricity
  • Requires at least 20 PTO HP to operate properly
  • Multiple Applications
  • Generate electricity to power tools on the farm or ranch
  • Backup your home, barn or buildings during a power outage
  • Automatic Voltage Regulator (AVR)
  • Produces clean and safe electricity for sensitive electronics
  • 100% Copper Winding, Low Distortion Alternator
  • Provides THD +/- 5%, for high quality power output
  • Aluminum & Steel Housing
  • Lightweight design for maximum durability
  • Heavy Duty Cast Iron Single Stage Gearbox
  • Lifetime pre-sealed maintenance-free bearings
  • 4" Three Bar LED meter (Visible From Tractor Seat)
  • Provides accurate display of Hertz, Volts, and Amps output
  • Added Features (Full Power Plug Not Included)
  • Magnetic circuit breakers w/ individual circuit protection
  • Simultaneous 120V & 240V output w/ Full power outlet
  • Standard 1-3/8", 6-spline input shaft

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 14-50R
10012
specs product image PID-5887
General Information
Product Category
Generator - PTO
Overview
Product Category
Generator - PTO
Weight
156 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
PTO Generator
Product Length
26 Inches
Product Width
8 Inches
Product Height
16 Inches
Additional Model Numbers

PTO 10-2S AVR, 10012

Product Specs
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
10000 Watts
Surge Watts
20000 Watts
Voltage Meter
Yes
Tractors HP
20 HP
PTO RPMs
540 RPM
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 14-50R
1

Reviews

(7)
IMD 10012 Reviews & Ratings

Product Q&A

(6)
Expert avatar photo
Product Questions Answered by Jared, the Generator Expert
Is this generator suitable for operation in rainy and snowy conditions?
Jim
from Washington
July 22, 2023
Does this come with a category 1 3pt hitch bracket for mounting to the 3pt on a small tractor?
Kevin
from Iowa
September 13, 2013
Where was the gearbox made? Where was the generator made?
Mel Schallot
from Pennsylvania
February 12, 2013
how much H.P is needed
Thomas
from North Carolina
December 24, 2012
What is the advantage of having a voltage regulator? What happens if I don't have a voltage regulator?
Bill
from Wisconsin
February 10, 2011
Sleeve or roller bearings in the PTO gearbox of the IMD PTO10-2SAVR?
Dave
from Pennsylvania
January 22, 2011
