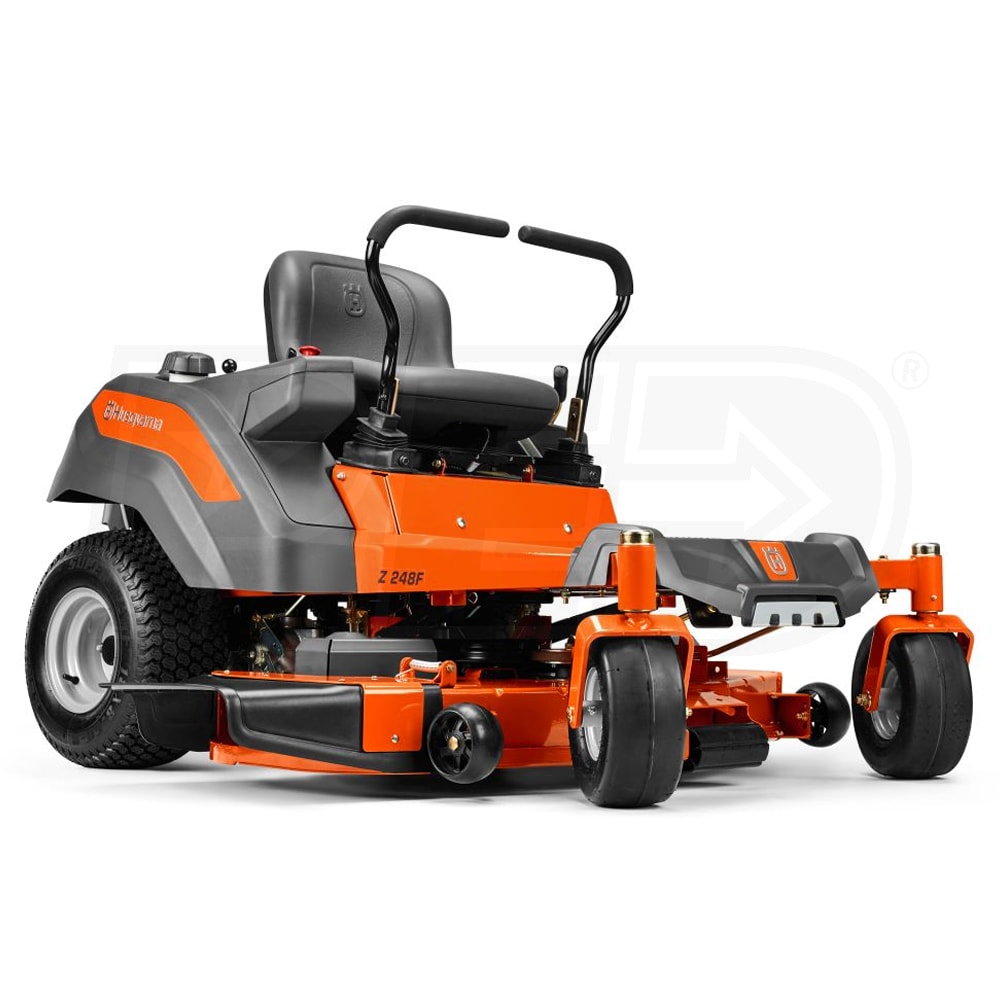

Husqvarna Z248F (48") 21.5HP Kawasaki Zero Turn Lawn Mower

Model:

970 46 75-01

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Husqvarna Z248F (48
Husqvarna Z248F (48") 21.5HP Kawasaki Zero Turn Lawn Mower
Model: 970 46 75-01
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Mid-Grade

Style

Zero Turn

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

48 Cutting Inches

Engine

Kawasaki

  • 21.5HP/726cc Kawasaki FR651V 4-Cycle OHV V-Twin Engine
  • Cast-iron cylinder liners and screen guard for added engine protection
  • Lightweight design increases efficiency and improves fuel economy
  • Smooth power output, quieter operation, and outstanding durability
  • Hydro-Gear® ZT-2200 (EZT®) Hydrostatic Transmission
  • Low-maintenance design with tons of power and torque
  • Fan cooled 10cc pumps and wheel motors on each drive wheel
  • 48-Inch Fabricated (Welded) Steel 3-Blade Mower Deck
  • Smaller deck size allows for better maneuvering in tight areas
  • 6 height-of-cut settings ranging from 1.5 - 4" to choose from
  • Premium electric PTO blade engagement and cast iron spindles
  • ClearCut® Quality & Performance
  • Designed to enhance airflow for a cleaner and more precise cut
  • Grass blades are pulled upward, reducing rowing and clumping
  • Convenient Deck Washout Port
  • Keeps grass clippings in the yard where they should be
  • Simply attach a hose, turn on the water, and start the engine
  • Rugged Build
  • Sturdy frame reduces vibration and chassis flex
  • Provides a more comfortable ride and a cleaner, straighter cut
  • Added Protection
  • Features a rear engine guard and front nose bumper
  • Adds aggressive styling and protection in case of a run-in
  • Removable Foot Pan
  • Provides quick access to deck belts, pulleys, and spindles for easier maintenance and cleaning
  • Model 970 46 75-01 Is The Same As 967 95 39-02 - Different Crates
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

970 46 75-01
specs product image PID-96191
Engine
Engine Brand
Kawasaki
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
21.5 HP
CC
726 CCs
Fuel Tank Size
3.5 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Low Oil Shutdown
No
Consumer Engine Warranty
3 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
595 Pounds
Consumer Warranty
3 Years
Product Length
75 Inches
Product Width
49 Inches
Product Height
52 Inches
Power Type
Gas
UPC
193028071135
Additional Model Numbers

967 95 39-02, 970 46 75-01

Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
10-Gauge
Spindle Material
Ductile Cast Iron
Deck Construction
Welded
Blades
3 Blades
Deck Positions
6 Positions
Cutting Width
48 Inches
Cutting Height
1.5-4.0 Inches
Deck Lift System
Manual Hand Operated
Engagement
PTO Electric
Deck Drive
Belt
Number of Wheels
3 Wheels
Drive
Speeds
Variable
Maximum Speed
6.5 MPH
Maximum Reverse Speed
3.5 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
Hydro-Gear EZT
Accessories
Rear Bagger
Sold Separately
Seat Type
Mid Back
Hour Meter
Included
Arm Rests
No
Mulcher Kit
Sold Separately
Headlights
Sold Separately
Washout Port
Yes
Wheels
Front Tire Size
11 x 6 Inch
Front Axle
Cast-Iron
Rear Tire Size
18 x 9.5 Inch
Tire Type
Pneumatic Wheels
