Features
- 23HP/724cc Briggs and Stratton Intek V-Twin OHV Engine
- Delivers reliable starts for the most demanding jobs
- Full pressure lubrication system with spin-on oil filter
- Pedal Operated Tuff Torq Hydrostatic Transmission
- Provides easy speed and direction control
- 16-inch turning radius
- 48-inch, 3-Blade Mower Deck
- 11-gauge stamped steel deck design
- 4 deck gauge wheels prevent scalping on uneven terrain
- Decks features greaseable mandrels and washout port
- Electric Blade Engagement
- Simply pull the switch on the control panel
- Air Induction Mowing Technology
- Draws air from the top and bottom of the mower deck
- Improves grass lift and delivers a superior grass cut
- Fender-Mounted Cutting Height Adjustment
- Spring-assisted cutting deck makes adjustment easier
- Ergonomic Seat
- 15-inch hi-back seat adusts back and forth for added comfort
- Also features headlights, cupholder and cruise control
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
YTH23V48

Engine
Engine Brand
Briggs & Stratton
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
24 HP
CC
724 CCs
Fuel Tank Size
3 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
3 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
476 Pounds
Consumer Warranty
3 Years
Product Length
69.25 Inches
Product Width
51.0 up/59.0 down Inches
Product Height
41.5 Inches
UPC
085388589682
Additional Model Numbers
960 43 01-75, YTH23V48
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
11-Gauge
Deck Construction
Stamped
Spindle Material
Aluminum
Blades
3 Blades
Deck Positions
6 Positions
Cutting Width
48 Inches
Cutting Height
1.5-4.0 Inches
Deck Lift System
Manual Hand Operated
Engagement
PTO Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
5.2 MPH
Maximum Reverse Speed
2.9 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
Hydrostatic
Accessories
Rear Bagger
Sold Separately
Engine Guard
No
Seat Type
High Back
Hour Meter
Included
Arm Rests
No
Front Bumper
Sold Separately
Trailer Hitch
Included
Mulcher Kit
Sold Separately
Headlights
Included
Wheels
Front Tire Size
15 x 6 Inch
Front Axle
Cast-Iron
Rear Tire Size
20 x 8 Inch
Tire Type
Pneumatic Wheels
Reviews
(8)
Husqvarna YTH23V48 Reviews & Ratings

Good mower
By Nate R.
Flickerville, Pennsylvania
Purchased 08/20/2014 |
Review Posted 09/30/2014
After doing the necessary adjustments, the mower performs well. The only complaint I have is that on a side hill (not steep), it has a tendency for the upper wheel to spin. I may try to lower the tire pressure to see if this helps.
The reports that it would take many hours to remove it from the crate are true. It is either long, difficult (for an old arthritic man) hours, or you recruit several neighbors to help. However, I do appreciate that this reduces damage both evident or unseen.
I like the very tight turning radius as it almost eliminates the need to circle or back up to make a turn.
The reports that it would take many hours to remove it from the crate are true. It is either long, difficult (for an old arthritic man) hours, or you recruit several neighbors to help. However, I do appreciate that this reduces damage both evident or unseen.
I like the very tight turning radius as it almost eliminates the need to circle or back up to make a turn.
Nate R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5

Very solid mower at a great price
By Mark Winans
Clifton, Virginia
Purchased 08/16/2014 |
Review Posted 09/07/2014
Husqvarna mowers are dependable and a great value. I ordered the mower on a Sunday, and it was delivered the following Friday. No issues whatsoever. Mowers Direct delivered as promised, and I will order from them the next time I need an accessory.
Great service!
Great service!
Mark Winans Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5

Love this Mower
By Gregory Todd
Kempner, Texas
Purchased 08/06/2014 |
Review Posted 09/04/2014
Was really tired of trying to keep my Murray alive and found this site. The price was so much better than anything I could find locally, so I couldn't pass it up.
The mower works so much better than my old 42" did when it was new. The no tax and free shipping were a great benefit as well. I will definitely be recommending this site and this mower to family and friends.
The mower works so much better than my old 42" did when it was new. The no tax and free shipping were a great benefit as well. I will definitely be recommending this site and this mower to family and friends.
Gregory Todd Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Works fine
By Ronnie W.
Palmetto, Florida
Purchased 08/05/2014 |
Review Posted 08/29/2014
Used once. Fun getting off pallet. Like it so far.
Ronnie W. Recommends This
Was this review helpful?
Rating Breakdown
3/5
4/5
4/5
4/5

Great mower
By Richard B.
Prattville, Alabama
Purchased 07/29/2014 |
Review Posted 08/19/2014
Reviewed a lot of mowers and places to buy them. This was the best overall. Had they given a military discount, this really would've been tops of everyone.
Richard B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Features, Easy To Use, Price
Cons:
Delivery Person Would Not Assist Me Unpacking The Mower

Love it!!
By Luke M.
Minnetrista, Minnesota
Purchased 07/28/2014 |
Review Posted 08/19/2014
I bought this mower about a month ago and have used it about 4 times and works great. The hydrostatic transmission is just amazing. I love that aspect. I would never go back to anything else. Mower comes fully assembled (we just bought the bagger elsewhere and put that on). More then I wanted to pay for a mower, but I wanted quality and hopefully it lasts for many years.
Luke M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Lots Of Power
By Raymond B.
Batavia, Ohio
Purchased 07/14/2014 |
Review Posted 08/05/2014
Like the mower a lot. Lots of power to cut through my yard's thick grass, and it is FAST, so my cutting time has come down, and my days between cuts has increased -- can let grass get higher.
Very nice product and great service. Happy to buy all my mowers at MD.
Much happier with this mower that the Craftsman LT200 I bought less than three years ago and it died. Do not buy Sears, and they did nothing to stand behind their product.
Very nice product and great service. Happy to buy all my mowers at MD.
Much happier with this mower that the Craftsman LT200 I bought less than three years ago and it died. Do not buy Sears, and they did nothing to stand behind their product.
Raymond B. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Some Small Issues, But I Would Pick It Again!
By Jim
Winder, Georgia
Review Posted 02/24/2014
Pros: Quality, features, and comfort rates with anyone else in this price range. The step through frame makes it easy for me to mount and dismount the mower even with a physical disability. More than enough power for a 48 inch cut in residential areas. I added the rear weight kit (50lbs) and a 20lb steel plate to the rear of the mower to keep wheel spin down on uneven slopes. I also added the front brush guard to keep from damaging the hood and front of the mower when mowing in tight areas. The guard also made the mower look much more stylish.
The adjustable seat works very well and has plenty of range for a lot of different heights, I'm 6'1" and it still have even more leg room to offer then I need. I wasn't sure if I'd like the foot operated hydro-trans after operating several fender mounted models over many years, but it's far better now that I know what I've been missing (like an extra hand). Steering is light, tight, and quick. And one of my favorite pros is that you can set the key switch to a position that allows you to reverse the mower with the blade engaged. Other items like: cast iron front axle, anti-scalp wheels, deck wash port, hour meter, ground speed control, and a cup holder only hold extra value to this rider.
Cons: Hard to start. The battery won't take many "bump" starts before it won't turn the motor over any more even when it's fully charged. I've found that I need to keep it fully charged, set the choke to full on and then engage the starter for what I think should take longer then necessary. After a few seconds the engine will start, you just have to stay grinding with it the first time. I've even tried a brand new battery with the same results.
The fuel level window is not very easy to read without very good lighting. Also, after consulting with the people at PED, the weight kit they recommended, which consists of the rear bracket (531 30 81-53) and weight (954 04 01-02), is designed like an after thought. I'm not sure why they don't have a weight kit that fits inside each wheel rim, it would put the extra weight out wide and down low on each wheel where it should be. What I have now, while it does work pretty well, acts more like leverage behind the rider. It puts the weight higher then need be, and if I change directions very quick, it will raise the front tires on flat ground. This makes going up hill a very "cautious" procedure.
The adjustable seat works very well and has plenty of range for a lot of different heights, I'm 6'1" and it still have even more leg room to offer then I need. I wasn't sure if I'd like the foot operated hydro-trans after operating several fender mounted models over many years, but it's far better now that I know what I've been missing (like an extra hand). Steering is light, tight, and quick. And one of my favorite pros is that you can set the key switch to a position that allows you to reverse the mower with the blade engaged. Other items like: cast iron front axle, anti-scalp wheels, deck wash port, hour meter, ground speed control, and a cup holder only hold extra value to this rider.
Cons: Hard to start. The battery won't take many "bump" starts before it won't turn the motor over any more even when it's fully charged. I've found that I need to keep it fully charged, set the choke to full on and then engage the starter for what I think should take longer then necessary. After a few seconds the engine will start, you just have to stay grinding with it the first time. I've even tried a brand new battery with the same results.
The fuel level window is not very easy to read without very good lighting. Also, after consulting with the people at PED, the weight kit they recommended, which consists of the rear bracket (531 30 81-53) and weight (954 04 01-02), is designed like an after thought. I'm not sure why they don't have a weight kit that fits inside each wheel rim, it would put the extra weight out wide and down low on each wheel where it should be. What I have now, while it does work pretty well, acts more like leverage behind the rider. It puts the weight higher then need be, and if I change directions very quick, it will raise the front tires on flat ground. This makes going up hill a very "cautious" procedure.
Jim Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
4/5
4/5
Pros:
Features, Price, Fast
How-To Articles
Manuals
YTH23V48

Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

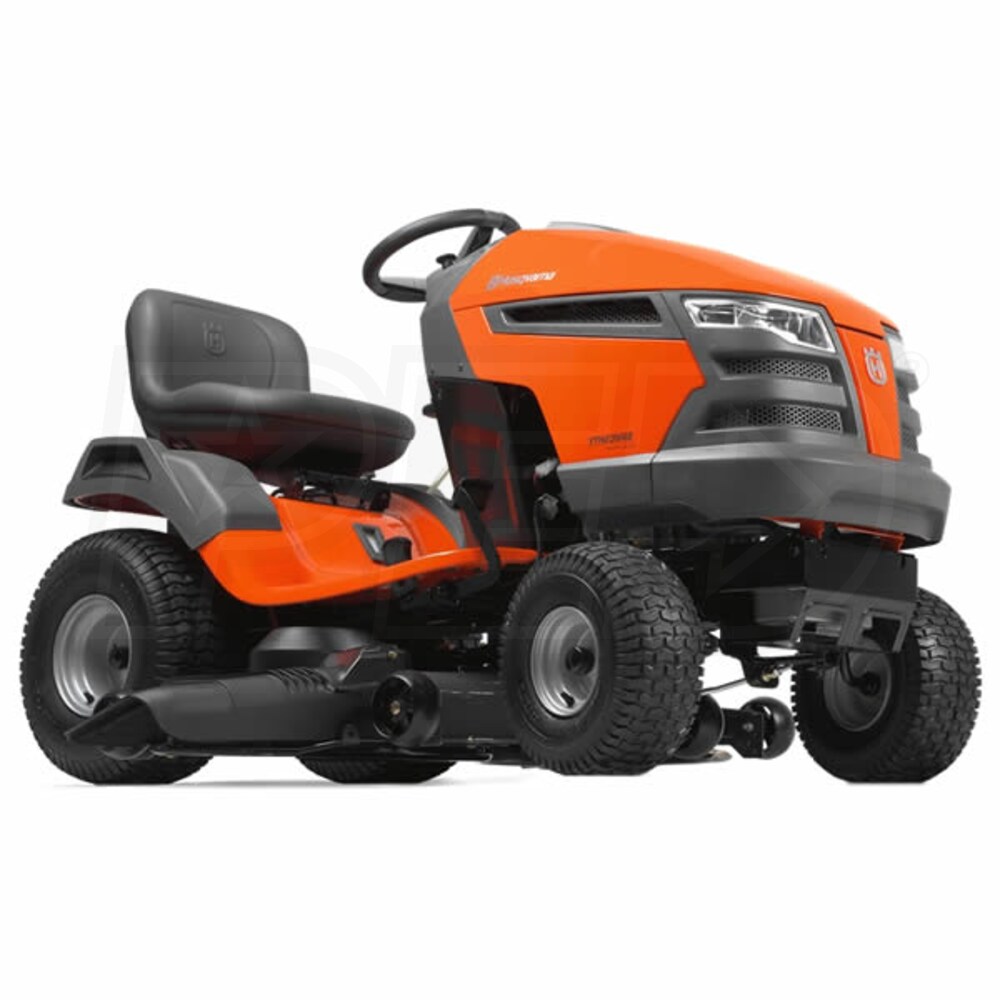

Husqvarna YTH23V48 (48") 23HP Lawn Tractor (2014 Model)
