Product Description
+−
Inlet Size
3"
Style

GPM
319
Gallons
Engine
Inlet Size
3"
Style
Trash
GPM
319 Gallons
Engine
Honda GX
Features
Features
- Heavy-Duty 3" Construction Trash Pump
- Handles solids up to 1-1/16"
- Commercial Grade 242cc Honda OHV GX240 4-Cycle Engine
- Provides excellent torque & fuel efficiency
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Helps to prevent engine seizure due to a low oil condition
- Rigid-Mounted Cast Iron Pump Volute
- Provides enhanced durability
- Conical Impeller & Replaceable Stainless Steel Wear Plate
- Provides improved priming, durability & extends pump life
- Silicone-Carbide Seals
- Abrasion-resistant design for extended wear
- Quick-Release Clean-Out w/ Easy Access Port
- Included Multi-tool for easy on-site servicing & cleaning
- Rugged Full Frame & High Performance Mounts
- Protects the pump/engine on all sides & reduces vibration
- EPA Approved & CARB Compliant
- 3-Year Residential & Commercial Warranty
Specifications
Pump
Gallons Per Minute
319 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
1.06 inch
Handles Solids
Yes
Suction Head
26 Feet
Maximum PSI
39
Total Head Lift
89 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
242 cc
Fuel Tank Size
1.4 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
132 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
26 Inches
Product Width
19.5 Inches
Product Height
20.3 Inches
UPC
786102001755
Additional Model Numbers
WT30, WT30XK4A
Inlet Size
3"
Style

GPM
319
Gallons
Engine
Inlet Size
3"
Style
Trash
GPM
319 Gallons
Engine
Honda GX
Features
Features
- Heavy-Duty 3" Construction Trash Pump
- Handles solids up to 1-1/16"
- Commercial Grade 242cc Honda OHV GX240 4-Cycle Engine
- Provides excellent torque & fuel efficiency
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Helps to prevent engine seizure due to a low oil condition
- Rigid-Mounted Cast Iron Pump Volute
- Provides enhanced durability
- Conical Impeller & Replaceable Stainless Steel Wear Plate
- Provides improved priming, durability & extends pump life
- Silicone-Carbide Seals
- Abrasion-resistant design for extended wear
- Quick-Release Clean-Out w/ Easy Access Port
- Included Multi-tool for easy on-site servicing & cleaning
- Rugged Full Frame & High Performance Mounts
- Protects the pump/engine on all sides & reduces vibration
- EPA Approved & CARB Compliant
- 3-Year Residential & Commercial Warranty
Specifications
Pump
Gallons Per Minute
319 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
1.06 inch
Handles Solids
Yes
Suction Head
26 Feet
Maximum PSI
39
Total Head Lift
89 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
242 cc
Fuel Tank Size
1.4 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
132 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
26 Inches
Product Width
19.5 Inches
Product Height
20.3 Inches
UPC
786102001755
Additional Model Numbers
WT30, WT30XK4A
Product Specs
+−
Specifications
Pump
Gallons Per Minute
319 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
1.06 inch
Handles Solids
Yes
Suction Head
26 Feet
Maximum PSI
39
Total Head Lift
89 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
242 cc
Fuel Tank Size
1.4 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
132 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
26 Inches
Product Width
19.5 Inches
Product Height
20.3 Inches
UPC
786102001755
Additional Model Numbers
WT30, WT30XK4A
Product Q&A
(4)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
How long will it run on a tank of gas?
Brent
from Alabama
November 08, 2016
Answer
That's a hard question to answer Brent and there really isn't a way to gauge it. Run times are based on how easy or how hard the engine is running. If you're pumping a short distance with minimal head lift, you may see about 2 to 3 hours of run time, but if you're pumping very long distances and requiring a lot of lift, that may dwindle to 60 - 90 minutes of run time. You might equate it to how you drive your car? If you accelerate fast and brake the same and often, your gas mileage suffers. It's the same with any gas powered piece of equipment. The harder you work it, the less run time you will realize.
If you have any other questions, please let me know.
If you have any other questions, please let me know.
Was this answer helpful?
Yes

3
No

0
+−
I'm looking for a water pump to use to pump muck from my pond. I bought a 6.5hp 3inch semi trash pump that isn't getting the job done.
Sounds like I need to use a full trash pump. I like the Honda WT30X pump but was wondering if a diaphram pump will be a better option.
Jerry
from Michigan
June 13, 2012
Answer
If you're dealing with a lot of muck and sludge, you would be much better off with a DIAPHRAGM PUMP.
Was this answer helpful?
Yes

0
No

0
+−
Sorry, I wasn't very clear, I need to skim the algae out of the water. What type of pump can handle that sort of material?
Mike Altherr
from Illinois
April 07, 2011
Answer
Any of our DIAPHRAGM pumps would be the best option for your application.
Was this answer helpful?
Yes

0
No

0
+−
I have a pond that gets algae and pond weed in it. I'm looking for a pump that will handle the stringy plant material. Don't necessarily need a big gpm of water capacity. What pump do you recommend?
Mike
from Illinois
April 03, 2011
Answer
Any of our trash pumps should do the job for you, however it is strongly recommended that you open and clean the pump out and then flush it out with fresh water.
Was this answer helpful?
Yes

0
No

0
Recommended Accessories
+−

Expert Recommended Accessories
Hand Picked By Our Expert Jim
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
Manuals
+−
+
Ask Jim, Our Product Expert, A Question!
*Required Fields

+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

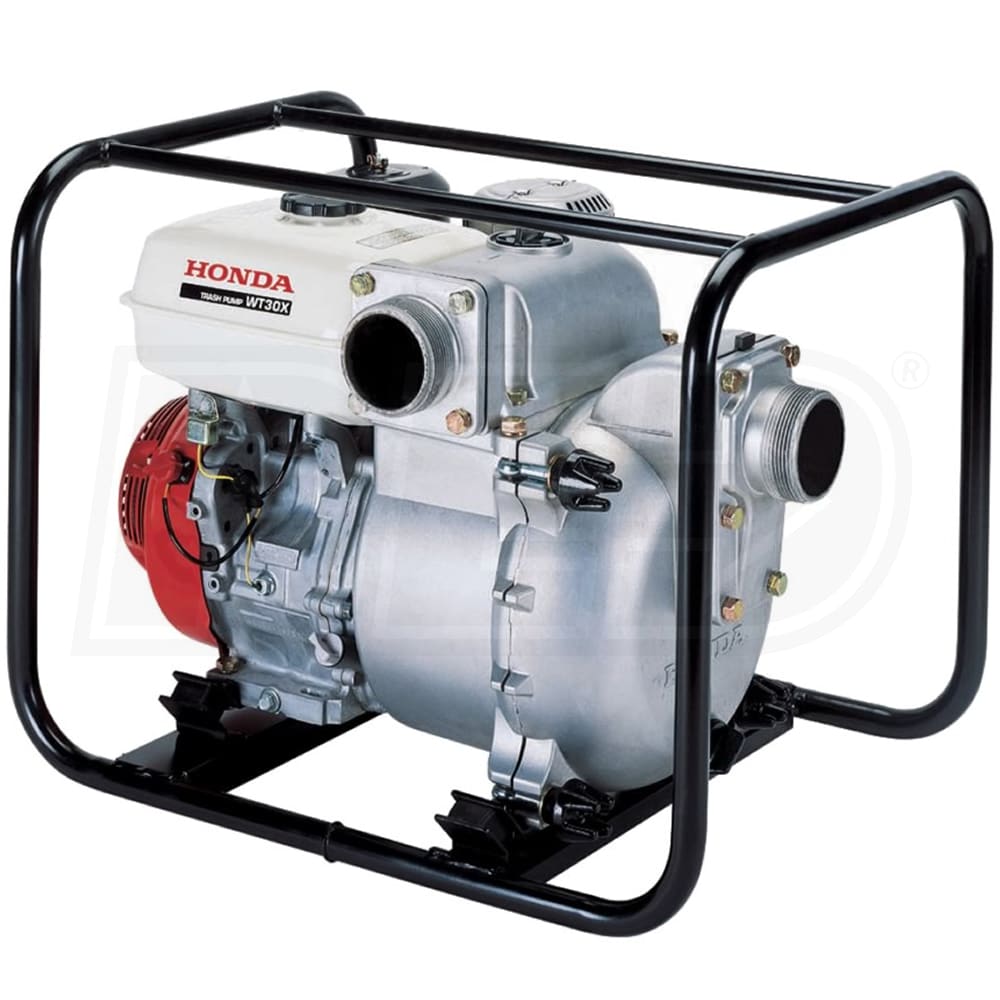

Honda WT30XK4 - 319 GPM (3") Heavy Duty Trash Pump









×
