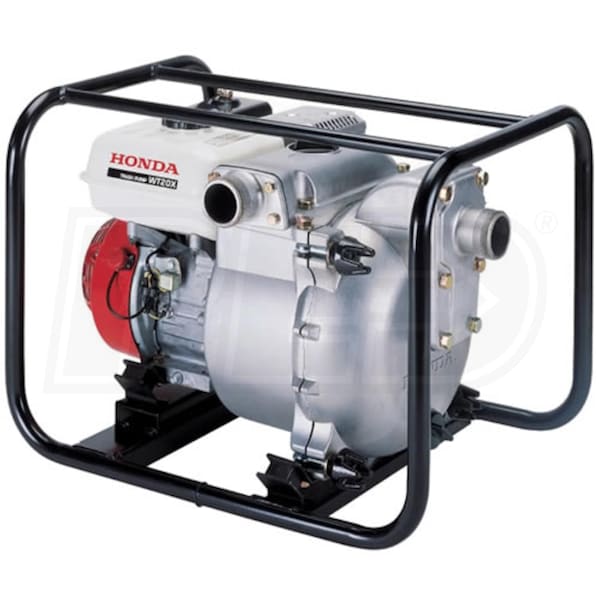

Honda WT20XK4 - 187 GPM (2") Heavy Duty Trash Pump
Honda WT20XK4 - 187 GPM (2") Heavy Duty Trash Pump
+
Share This Product
-
Product Description
-
5Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
2"
Style
GPM
187
Gallons
Engine
Inlet Size
2"
Style
Trash
GPM
187 Gallons
Engine
Honda GX
Features
Features
- Heavy-Duty 2" Construction Trash Pump
- Handles solids up to 13/16"
- Commercial Grade 163cc Honda OHV GX160 4-Cycle Engine
- Provides excellent torque & fuel efficiency
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Helps to prevent engine seizure due to a low oil condition
- Rigid-Mounted Cast Iron Pump Volute
- Provides enhanced durability
- Conical Impeller & Replaceable Stainless Steel Wear Plate
- Provides improved priming, durability & extends pump life
- Silicone-Carbide Seals
- Abrasion-resistant design for extended wear
- Quick-Release Clean-Out w/ Easy Access Port
- Included Multi-tool for easy on-site servicing & cleaning
- Rugged Full Frame & High Performance Mounts
- Protects the pump/engine on all sides & reduces vibration
- EPA Approved & CARB Compliant
- 3-Year Residential & Commercial Warranty
Specifications
Pump
Gallons Per Minute
187 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.8 inch
Suction Head
26 Feet
Maximum PSI
42
Total Head Lift
98 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Fuel Tank Size
0.825 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
104 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
24.4 Inches
Product Width
18.1 Inches
Product Height
18.3 Inches
UPC
786102001724
Additional Model Numbers
WT20, WT20XK4AC
Inlet Size
2"
Style
GPM
187
Gallons
Engine
Inlet Size
2"
Style
Trash
GPM
187 Gallons
Engine
Honda GX
Features
Features
- Heavy-Duty 2" Construction Trash Pump
- Handles solids up to 13/16"
- Commercial Grade 163cc Honda OHV GX160 4-Cycle Engine
- Provides excellent torque & fuel efficiency
- Protected By Honda Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Helps to prevent engine seizure due to a low oil condition
- Rigid-Mounted Cast Iron Pump Volute
- Provides enhanced durability
- Conical Impeller & Replaceable Stainless Steel Wear Plate
- Provides improved priming, durability & extends pump life
- Silicone-Carbide Seals
- Abrasion-resistant design for extended wear
- Quick-Release Clean-Out w/ Easy Access Port
- Included Multi-tool for easy on-site servicing & cleaning
- Rugged Full Frame & High Performance Mounts
- Protects the pump/engine on all sides & reduces vibration
- EPA Approved & CARB Compliant
- 3-Year Residential & Commercial Warranty
Specifications
Pump
Gallons Per Minute
187 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.8 inch
Suction Head
26 Feet
Maximum PSI
42
Total Head Lift
98 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Fuel Tank Size
0.825 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
104 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
24.4 Inches
Product Width
18.1 Inches
Product Height
18.3 Inches
UPC
786102001724
Additional Model Numbers
WT20, WT20XK4AC
Product Specs
+−
Specifications
Pump
Gallons Per Minute
187 Gallons
Inlet Diameter
2"
Outlet Diameter
2"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.8 inch
Suction Head
26 Feet
Maximum PSI
42
Total Head Lift
98 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Fuel Tank Size
0.825 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Float Switch
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
Overview
Weight
104 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
24.4 Inches
Product Width
18.1 Inches
Product Height
18.3 Inches
UPC
786102001724
Additional Model Numbers
WT20, WT20XK4AC
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
What is the work range temperature?
Re
from Texas
January 23, 2020
Answer
Due to the amount of heat generated from the engine with these pumps, the water temperature should be kept below 100 degrees. If you are looking for the max temperature that can be used for this pump, that would be a question that would need to be addressed by Honda directly, since they would know the limitations of the pump's ability to handle water temperatures. Honda's tech number is (770)497-6400 and they can be reached about that question.
+−
How long will it run on a tank of gas?
Brent
from Alabama
November 08, 2016
Answer
That's a hard question to answer Brent and there really isn't a way to gauge it. Run times are based on how easy or how hard the engine is running. If you're pumping a short distance with minimal head lift, you may see about 2 to 3 hours of run time, but if you're pumping very long distances and requiring a lot of lift, that may dwindle to 60 - 90 minutes of run time. You might equate it to how you drive your car? If you accelerate fast and brake the same and often, your gas mileage suffers. It's the same with any gas powered piece of equipment. The harder you work it, the less run time you will realize.
If you have any other questions, please let me know.
If you have any other questions, please let me know.
