Honda WB20XT4A - 164 GPM (2") Water Pump w/ Hose Kit

Model:

WPD-WB20-KIT

Write A Review
$698.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 4 In-Stock
Ships Monday, Apr 22nd
Shipping to60601

Honda WB20XT4A - 164 GPM (2
Honda WB20XT4A - 164 GPM (2") Water Pump w/ Hose Kit
Model: WPD-WB20-KIT
$698.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

2 Inch

Style

Dewatering

GPM

164 Gallons

Engine

Honda GX

  • 2" General Purpose Water Pump w/ Hose Kit
  • Centrifugal, self-priming design
  • Commercial Grade 118cc Honda OHV GX120 4-Cycle Engine
  • Reliable, technologically advanced & easy to start
  • Provides excellent torque & fuel efficiency
  • Protected By Honda Oil Alert® Warning System
  • Alerts you or shuts engine down if oil reaches an unsafe level
  • Helps to prevent engine seizure due to a low oil condition
  • Improved 4-Vane Impeller/Volute Design
  • Provides enhanced durability against wear & tear
  • Silicone-Carbide Seals
  • Abrasion-resistant designed for extended wear
  • Isolation Mounted Engine & Pump
  • Rubber feet minimize vibration for quieter operation
  • Heavy Duty Full Frame Protection
  • Protects the pump and engine on all sides
  • EPA Approved & CARB Compliant
  • 3-Year Residential & Commercial Warranty
  • Includes Honda 2-Inch Water Pump Hose Kit
  • With Camlock "Quick-Connect" Couplers

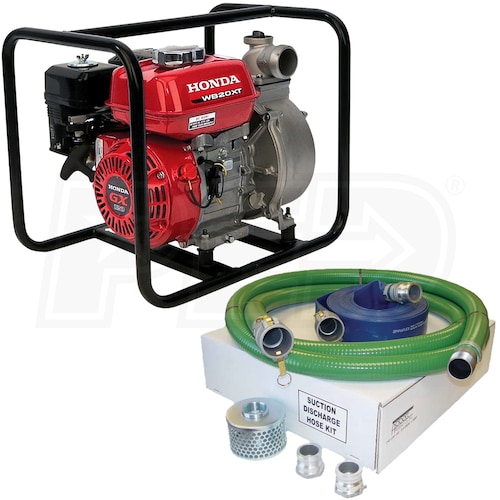

  • Kit Includes:
  • 2" x 20' Semi-Rigid Suction Hose
  • 2" x 50' PVC Discharge Hose
  • 2" Strainer (3/8" Round Holes)
  • Camlock Fittings & Pipe Nipple (Includes Male Adapter)
  • Product Includes
    • (1) Honda WB20XT4A - 164 GPM (2") Water Pump (WB20)
    • (1) Honda 2" Water Pump Hose Kit w/ Quick-Connect Couplers (124020-1145-CLKT)
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Honda WB20XT4A - 164 GPM (2") Water Pump (WB20)
  • (1) Honda 2" Water Pump Hose Kit w/ Quick-Connect Couplers (124020-1145-CLKT)
WPD-WB20-KIT
specs product image PID-106718
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
164 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
2 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.3 inch
Suction Head
25 Feet
Maximum PSI
45
Total Head Lift
105 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
Fuel Tank Size
0.5 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Overview
Product Category
Water Pump
Weight
46 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
17.9 Inches
Product Width
14.4 Inches
Product Height
16.5 Inches
Accessories
Tool Kit
No
Strainer
Yes
Float Switch
No
Hose Couplings
Yes
Hose
Yes
Hose Bands
No
Transport Handle
No
Wheel Kit
No
WB20XT4A
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
164 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
2 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.3 inch
Suction Head
25 Feet
Maximum PSI
45
Total Head Lift
105 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
CC
118 cc
Fuel Tank Size
0.5 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Overview
Product Category
Water Pump
Weight
46 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
17.9 Inches
Product Width
14.4 Inches
Product Height
16.5 Inches
Accessories
Tool Kit
No
Strainer
Yes
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No
124020-1148-CLKT
General Information
Product Category
Water Pump Accessories
Pump
Inlet Diameter
2 Inch
Outlet Diameter
2 Inch
Overview
Product Category
Water Pump Accessories
Weight
30 Pounds
Accessories
Strainer
Yes
Hose Couplings
Yes
Hose
Yes
