Honda WDP30 - WDP30XK1AT - 80 GPM (3") Diaphragm Water Pump for sale.

Power Equipment Direct Offers Free Shipping on Honda WDP30.

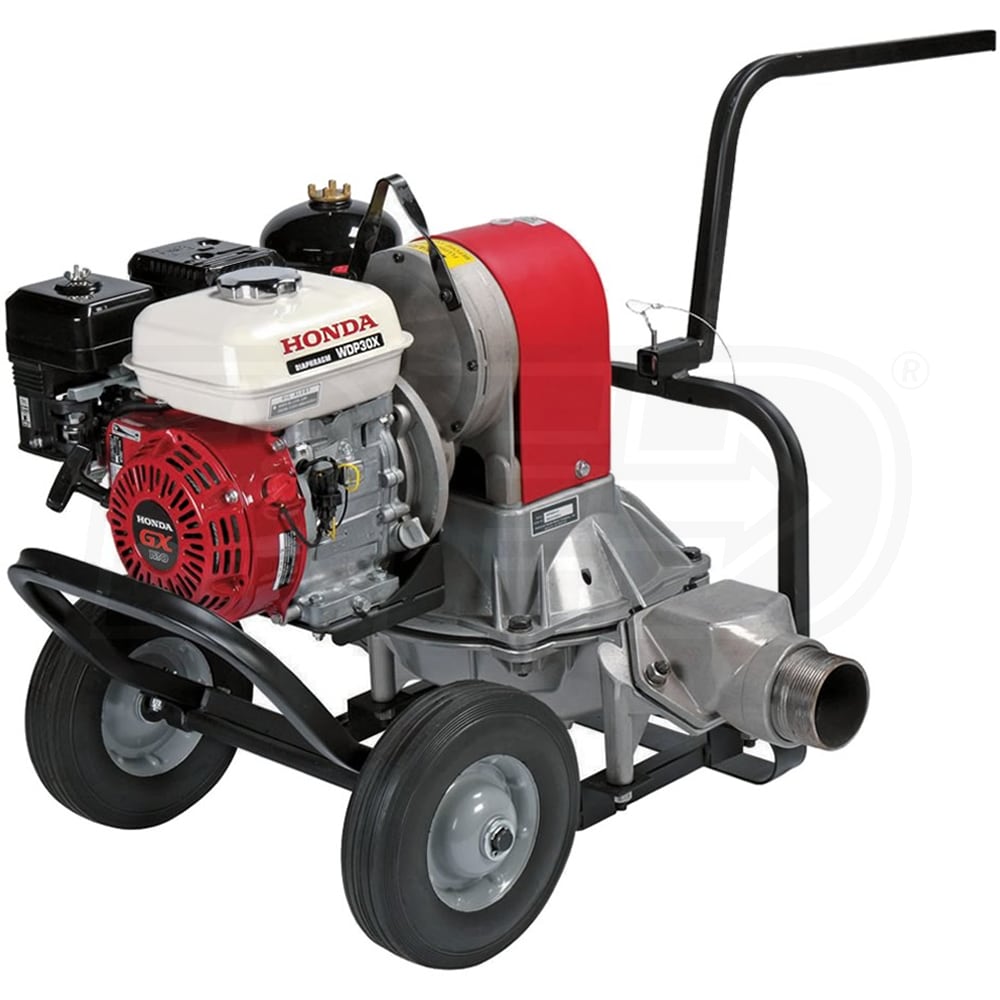

Honda WDP30XK1AT - 80 GPM (3") Diaphragm Water Pump

Close
Honda Power Equipment and Accessories
Model: WDP30
(Based on expert analysis, manufacturer ratings and customer reviews)
4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
3 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock Only 5 In-Stock
Ships Thursday, Aug 24th

Estimate Arrival
$1,899.00

  • Features
  • Specs
  • 2
    Q&A
  • 3
    Reviews
  • Articles
  • Shipping
  • Accessories

Inlet Size
3"
Style
Diaphragm Pumps
GPM
80
Gallons
Engine
Heavy-Duty 3" Diaphragm Pump
Suited for muddy water, sludge or any water w/ high solid content

Commercial Grade 118cc Honda OHV GX120 4-Cycle Engine
Provides excellent torque & fuel efficiency

Protected By Honda Oil Alert« Warning System
Alerts you or shuts engine down if oil reaches an unsafe level
Helps to prevent engine seizure due to a low oil condition

Die-Cast Aluminum Case, Air Cushion Chamber & "Rock Channel"
Prevents case damage & allows this pump to easily pass solids

Rugged Neoprene Diaphragm w/ Nylon Insert
Provides the ability to pass solids up to 2.4"

"Run Dry" Design
Perfect when low volume, run dry operation is required

Stand Wheel Kit & Handle
Makes this pump easy to move around

Heavy Duty Frame
Provides a sturdy base for the motor and pump

EPA Approved & CARB Compliant

3-Year Residential & Commercial Warranty


Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Continuous Operation
Yes
Fuel Tank Size
0.525 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Pump
Gallons Per Minute
80 Gallons
Inlet Diameter
3"
Outlet Diameter
3"
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
No
Quick Clean Out
No
Solids Handling Size
2.4 inch
Suction Head
24 Feet
Total Head Lift
50 Feet
Submersible
No
Accessories
Tool Kit
No
Strainer
Yes
Hose
Sold Separately
Hose Couplings
No
Hose Bands
No
Lifting Hook
Yes
Wheel Kit
Yes
Overview
Made in USA
No
Weight
163 Pounds
Product Length
31.5 Inches
Product Width
30.5 Inches
Product Height
25.7 Inches
Consumer Warranty
3 Years
UPC
786102002486
Model
WDP30
Need Help? Ask Our Experts.
View Accessories For This Product.
Read Reviews
How-To Library
Subject: Store ID: Product ID: Data Category: Brand Category:

*Ask Jim about the Honda WDP30. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit
  2 Questions
Q: At 40 gpm what is the psi rating for the Honda WDP30XK1AT 3" pump?
by Adesco from Nevada on June 02, 2014

A: Since this is a positive displacement instead of a centrifugal pump, the flow cannot be severely restricted or dead-headed. Doing so will result in very high pressure and will damage the pump. This is why the pump curve looks different than a normal centrifugal pump curve and begins at 45 gpm instead of 0 gpm.
The maximum pressure allowed inside the pump case is 22 psi - this is equivalent to about 50 ft head and at this pressure, the pump delivers about 45 gallons per minute.
In other words, this is the minimum allowable flow rate with the throttle lever in the fast position. Remember, if there's no hose on the discharge port, the pump pressure will be near zero and the discharge will be about
80 gpm. But as the discharge head increases (by increasing hose length, reducing hose diameter, or increasing static discharge head), the pressure inside the pump will increase; the maximum allowed is 22 psi (50 ft head) and the discharge volume would be about 45 gpm at this pressure. Of course, the user can reduce to 40 gpm or less by reducing the moving the throttle lever to a slower engine speed.
If you have additional questions, please let me know.
by Jim, Product Expert
Q: I am in the plumbing business and maintain a water district, so I am looking for a diaphragm pump that is best suited for fixing leaks when the water can't be shut off. I am looking at Honda WDP30XK1AT and the Subaru PTX301D. There isn't much price difference, so which do you suggest? Overall, I am looking for a pump that will stand up to the abuse over the years and has replacement parts readily available if needed. Thanks
by Adrian Briles from Kansas on January 27, 2014

A: Thank you for your interest in Water Pumps Direct. Both pumps are of excellent quality and should handle some field abuse. The Subaru model is a bit more protected with the roll cage frame and the Honda does have the installed wheel kit for easier mobility. Obtaining replacement parts for both units should be fairly easy too. If you care to verify that fact, you could call the manufacturer tech support line at the phone numbers listed below.

Honda - 770-497-6400

Subaru - 800-277-6246
by Jim, Product Expert
Honda WDP30 Reviews & Ratings
Overall Rating
Features
5/5
Quality
5/5
Performance
5/5
Value
5/5
Overall
4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
Pros
Easy To Use (2)
Reliable (1)
High Quality (1)
Quiet (1)
I'd Buy It Again (1)
Cons
None to display.
100% of respondents would recommend this product to a friend
3 Reviews  Sort by

David B.
Bishop, CA
Purchased from Power Equipment Direct
Purchased 10/12/14
Total Helpful Votes
19 Helpful Votes
Most Helpful Positive Review
REVIEWED
NOV.
02
2014
5 out of 55 out of 55 out of 55 out of 55 out of 5
Works Quite Well
I bought this pump to drain the muck from the bottom of several ponds. The video shows that it can pull some pretty thick stuff through. I used a section of 3" PVC to stick in the muck. At first I made a cross with 1/8" x 1" steel inserted in slots I sawed in the end of the PVC to act as a strainer to keep rocks out, but removed it as it clogged too easily.

I used a hoe to bring the surrounding muck to the intake, and then moved the pipe when necessary. Without any type of... more
David Recommends This Honda Product
Was this review helpful?
192
Michael N.
Tacoma, WA
Purchased from Power Equipment Direct
Purchased 6/21/17
REVIEWED
JUL.
13
2017
5 out of 55 out of 55 out of 55 out of 55 out of 5
Spend The Dough And Watch The Flow!
I have been mucking my pond with a 2" semi trash centrifugal pump and having a good time till I heard about diaphragm pumps... and took the plunge. I was apprehensive with the 80gpm flow rate but small sticks and stuff in my pond were plugging the vanes of the little pump.

Man... This 3" diaphragm pump moves the goo! Small sticks, stones, slow fish and all! (and it doesn't blend the fish!) -)
I pulled more muck out in HALF the time to fill my dewatering pit with much less... more
Pros: Durable, Easy To Use, Exceeded Expectations, I'd Buy It Again
Michael Recommends This Honda Product
Michael's Experience With Power Equipment Direct
Web Site
5/5

Service
5/5

Shipping
5/5
"I thought it was going to take longer to arrive than it did. Super fast delivery! I'd write more, but I'm headed out to play with my pump again! Thanks WPD!"
 more
Was this review helpful?
00
Tomasz S.
Derby Line, VT
Purchased from Power Equipment Direct
Purchased 8/7/13
Total Helpful Votes
11 Helpful Votes
REVIEWED
OCT.
09
2013
4 out of 54 out of 54 out of 54 out of 54 out of 5
Boathouse Full Of Sand
The pump + 2 man + 2 days of work and our boat is parking inside again :)
Pros: Easy To Use, Quiet, Reliable, High Quality
Tomasz Recommends This Honda Product
Was this review helpful?
118
