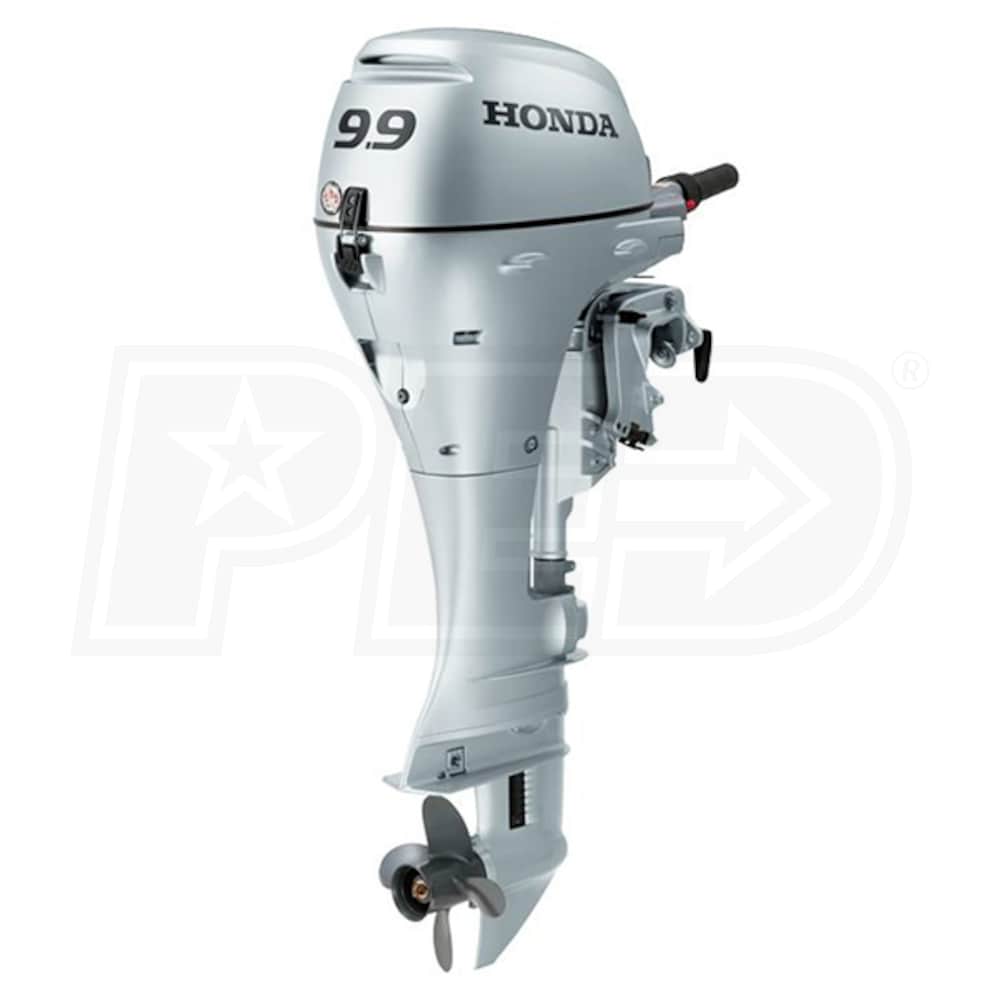

Honda 9.9 HP (25") Shaft Outboard Motor w/ Electric Start, Power Thrust

Model:

BFP10D3XHS

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Honda 9.9 HP (25
Honda 9.9 HP (25") Shaft Outboard Motor w/ Electric Start, Power Thrust
Model: BFP10D3XHS
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Transferable Warranty! 3 Years for Non-Commercial/Non-Rental. 1 Year for Commercial/Rental. 1 Year for Government Agencies.
  • Dependable Performance
  • 4-stroke design for superior fuel efficiency, with no oil mixing
  • Microprocessor controls ignition and RPM range for optimal operation
  • Electric start for ease of starting the engine without pulling or fussing

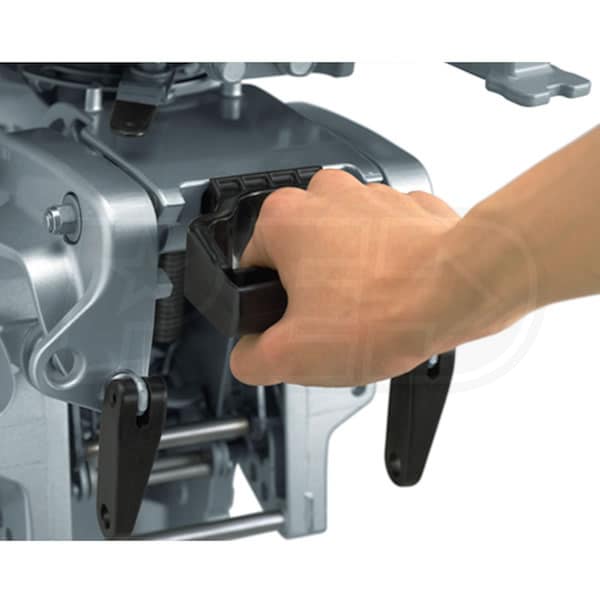

  • Convenient, foldaway carry handle for easier transporting
  • Perfect for small boats, dinghies or auxiliary
  • Power Thrust Design
  • Creates 60% more thrust in reverse and 15% more in forward
  • Provides better performance for heavy loads
  • Reverse Exhaust Relief
  • Offers more power in reverse by minimizing cavitation around the propeller blades
  • Allows the prop to run in clean, exhaust-free water
  • Charging System
  • Generates 12-Amps at only 3000 RPM
  • Has a full throttle RPM range of 5,000-6,000
  • Maintains battery charge and keeps electronics running at trolling speeds
  • Engine Alert System
  • Protects the engine from severe damage
  • Alerts you to check the engine due to low oil, over-revving and overheating
  • The motor is NOT capable of remote operation, tiller handle control use ONLY
  • ***State Registrations Take 2-3 Weeks To Arrive After Request***
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

BFP10D3XHS
specs product image PID-62851
General Information
Product Category
Outboard Motor
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Honda
Engine Type
4-Stroke SOHC
Cylinder Count
2 Cylinder
Horsepower
9.9
Engine Displacement
222 CCs
Bore & Stroke
2.3 x 1.7 Inches
Full Throttle RPM Range
5,000-6,000
Starting System
Recoil w/ Electric Start
Charging System
12-Amp (148 watt)
Cooling System
Water Cooled
Ignition System
Programmed Ignition System
Exhaust System
Through Hub
Power Tilt
No
Power Thrust
Yes
External Fuel Tank
Included w/ Fuel Hose
Power Trim
No
Fuel
Unleaded 86 octane
Fuel Tank Capacity
3 US gal Aux Tank
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Engine Oil Capacity
1.2 US qt. (38.4 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
2.33:1
Gear Shift
F-N-R
Propeller Blades
4
Propeller Material
Aluminum
Transom Height
25 Inches
Overview
Product Category
Outboard Motor
Weight
107 Pounds
Made in USA
No
Consumer Warranty
5 Years
UPC
786102005661
