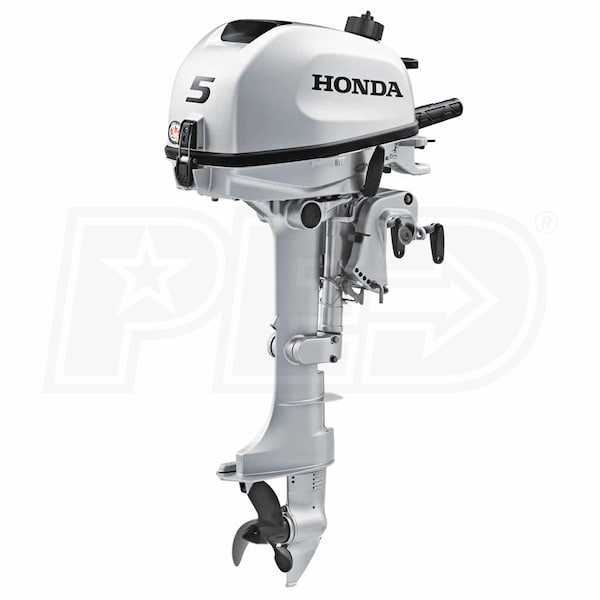

Honda 5 HP (15") Shaft Gas Powered Outboard Motor

Model:

BF5DHSHNA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Honda 5 HP (15
Honda 5 HP (15") Shaft Gas Powered Outboard Motor
Model: BF5DHSHNA
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

  • BF5 Portable Outboard Motor w/ 15" Transom
  • 4-stroke design for superior fuel efficiency, with no oil mixing
  • Water-cooled, single cylinder design for better low- to mid-range power
  • Low vibration for a comfortable ride
  • Digital CD Ignition For Quick & Easy Starts
  • Ideal for small tenders, sailboats, jon boats, and skiffs
  • Large Capacity Internal Fuel Tank
  • 1.5L fuel tank provides enough fuel for over 40 minutes of wide open throttle
  • Precise Twist-Grip Throttle Control
  • Throttle tensioner minimizes driver fatigue
  • Dependable And Compact
  • Easy to transport (60 pounds)
  • Includes a front mounted carrying handle
  • Tiller folds up or down for easy stowing
  • Low Oil Warning System
  • Protects the engine from severe damage
  • F-N-R Gearshift
  • Forward, neutral, and reverse shifting
  • A safety lockout system allows the engine to be started in neutral gear only
  • Optional 6-Amp Charging System Is Sold Separately - Must Be Installed By A Dealer
  • Transferable Warranty! 3 Years for Non-Commercial/Non-Rental. 1 Year for Commercial/Rental. 1 Year for Government Agencies.
  • The motor is NOT capable of remote operation, tiller handle control use ONLY
  • ***State Registrations Take 2-3 Weeks To Arrive After Request***
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

BF5DHSHNA
specs product image PID-72661
General Information
Product Category
Outboard Motor
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Honda
Engine Type
4-Stroke OHV
Cylinder Count
1 Cylinder
Horsepower
5
Engine Displacement
127 CCs
Bore & Stroke
2.4 x 1.8 Inches
Full Throttle RPM Range
4,500-5,500
Starting System
Recoil
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Under Water, Above Propeller
Power Tilt
No
Tilt Range
70 °
Power Thrust
No
External Fuel Tank
No
Power Trim
No
Trim Range
5 Stage: 5 -9 -13 -17 -21
Fuel
Unleaded 86 octane
Fuel Tank Capacity
.39 US gal
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Engine Oil Capacity
.56 US qt. (18 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
2.08:1
Gear Shift
F-N-R
Propeller Blades
3
Propeller Material
Aluminum
Transom Height
15 Inches
Overview
Product Category
Outboard Motor
Weight
60 Pounds
Consumer Warranty
5 Years
Product Width
13.66 Inches
UPC
786102006163
Additional Model Numbers

BF5SHNA, BF5DHSHNA

Reviews

(37)
Honda Marine BF5DHSHNA Reviews & Ratings
Customer Photos and Videos
review image 1
review image 2
review image 3
+2
review image 4
review image 5
Customer Rating
4.16
(37 Ratings)
73% recommend this product
5
(24)
4
(5)
3
(2)
2
(2)
1
(4)
Verified Buyer
Verified Buyer
Leaks On Its Side
By Donald M.
Idaho
Purchased 08/06/2023 |
Review Posted 10/13/2023
Overall, I'm happy with this purchase. It started easily, restarted easily, runs smoothly and quietly, and delivered decent power. It mounts right up to my boat and with the correct fittings, takes an external tank with no trouble. It has an internal tank you can use for a reserve as the motor will run for 40 min on the internal. Now for the not so great - it leaks oil when laid on its side. There are two bosses on one side for you to be able to lay the motor either on its side or on its back (5 sides of the cowling down) for transport. Mine leaks engine oil when on its side OR back. I built a wooden stand for it that I transport and store the motor on because of this problem. I think it's a good motor with an annoying problem.
Donald M. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
3/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Easy To Use, Price
Cons:
Heavy
Verified Buyer
Verified Buyer
Useless
By Jonathan E.
Florida
Purchased 08/02/2023 |
Review Posted 10/06/2023
Shipped without oil. No obvious instructions to add oil. All it would take is a simple tag attached to the motor saying to add oil. Engine seized up.
Jonathan E. Does Not Recommend This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
1/5
icon-review-marker
Value
5/5
icon-review-marker
Cons:
Bad Instructions
Verified Buyer
Verified Buyer
Honda 5 HP
By Niels M.
Nevada
Purchased 07/29/2023 |
Review Posted 09/11/2023

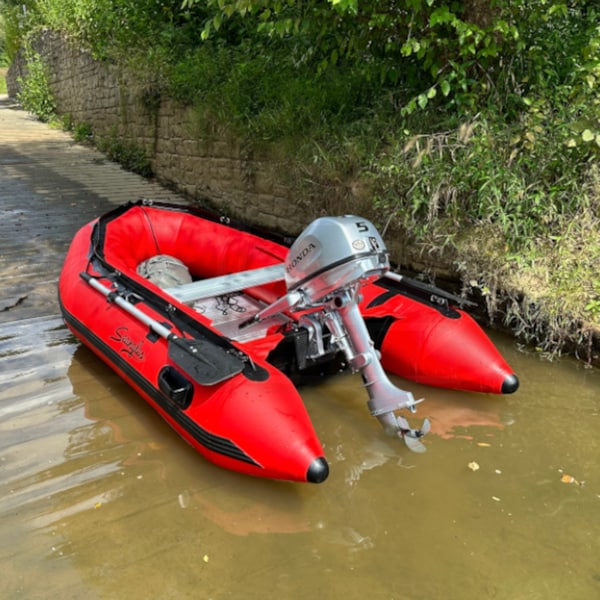

Perfect fit for my 10Ɖ" RIB dingy. Self contained fuel tank with the ability to connect to larger fuel tank. Lighter weight vs. 9.9 HP was the main reason for selection.
Niels M. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, I39d Buy It Again, Easy To Store
Cons:
None
Verified Buyer
Verified Buyer
Disappointment
By Eric O.
Georgia
Purchased 08/14/2023 |
Review Posted 09/05/2023
review 4 image 1
Starts 50% of the time. Nothing like being on the river and your motor won’t start. It also bogs down at full throttle. Assumed I would lot have to take it to the shop being a new engine. If I knew that I would have bought a used one off marketplace. I was told and assumed a Honda would be a great engine. Not the case. Find another brand.
Eric O. Does Not Recommend This
Was this review helpful?
Expert Response
First and foremost, thank you for your purchase. We are sorry to hear you are having issues with your unit and want to reassure you factory warranties cover defects in materials and workmanship. Honda would need to be contacted directly at (770) 497-6400 to start the warranty process if you have not done so yet. If they are unable to troubleshoot the issue over the phone they have Local Service Centers that can also assist you and apply the warranty for servicing the unit. If their service doesn't meet your expectations, or if there's anything else we can please email us and we will be happy to help. We will forward your review to the manufacturer so they are aware of the situation.

We appreciate your business and apologize for any inconvenience.
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
1/5
icon-review-marker
Quality
1/5
icon-review-marker
Performance
1/5
icon-review-marker
Value
1/5
icon-review-marker
Cons:
Expensive, Packaging, Low Quality, Unreliable
Verified Buyer
Verified Buyer
VERY Temperamental When Starting
By Todd
Maine
Purchased 05/21/2023 |
Review Posted 06/26/2023
I bought this based on other reviews and I wish I didn't. The motor works great - when it works. Purchasin was good, delivery was good, power is good, features are good, but it is extremely temperamental when it comes to starting. Probably 3/4 of the time it's fine. The other 1/4 is a whole different story. It acts like it is out of gas or is flooded - when it's always full of gas and every flooded starting technique doesn't work not to mention that you can't smell gas like I have with other flooded engines. Wait 10 minutes, try it again, sometimes works sometimes doesn't. Not at all consistent.

I've had a number of outboards over the years and have never run into anything this finicky. It makes zero sense and follows no pattern. I've tried everything, internal tank, external tank, making sure the internal never gets below 3/4 full in case the fuel pickup is too high, giving it more time, less time, you name it. Nothing helps.

There is nothing like being out on a lake a mile or more from the nearest house with an engine that won't start. Very unreliable and not very useful in the back woods of Maine.

If I could, I'd send it back and get a different brand in a heartbeat. What a waste of money. Not happy at all with this purchase.
Todd Does Not Recommend This
Was this review helpful?
Rating Breakdown
Features
3/5
icon-review-marker
Quality
1/5
icon-review-marker
Performance
3/5
icon-review-marker
Value
1/5
icon-review-marker
Cons:
Difficult To Use, Unreliable, Hard to start
Verified Buyer
Verified Buyer
Honda 5 HP Outboard Motor
By Ronald B.
Utah
Review Posted 12/16/2022
I love this motor, it works great on my 16-foot Cataraft, for running rivers, or trolling fishing. I purchased an extra prop in case I hit a rock river running. I also installed a river prop protector.
Ronald B. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, I'd Buy It Again
Cons:
None
Verified Buyer
Verified Buyer
5hp Honda Motor
By Bryon S.
California
Review Posted 10/15/2022
Layed motor on the side in pick up & motor oil leaked out all over, was on the side with 2 stops as recommended, and had problems starting many times. Not reliable.
Bryon S. Does Not Recommend This
Was this review helpful?
Expert Response
First and foremost, thank you for your purchase. We appreciate you taking the time to provide us with your feedback, and we can certainly understand your aggravation. We will forward your review to the manufacturer, informing them of the situation. We do recommend you contact Honda directly at Honda (770) 497-6400 to discuss and troubleshoot the issue. If they are unable to troubleshoot the issue over the phone they have Local Service Centers that can also assist you and apply the warranty for servicing the unit. If you have any issues, please get in touch with us.

We appreciate your business and apologize for any inconvenience.
.
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
3/5
icon-review-marker
Quality
2/5
icon-review-marker
Performance
2/5
icon-review-marker
Value
1/5
icon-review-marker
Cons:
Heavy
Best Motor Ever
By Martin G.
Florida
Review Posted 09/17/2022
I have had Evinrude, Tohatsu, and Mercury small outboards. Honda is the best.
Martin G. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, Id Buy It Again, Easy To Store
Cons:
None
Oil Leaker
By Steve P.
New Jersey
Review Posted 09/12/2022
We love this engine, but whenever it is stored on its side, then lifted up and put in a vertical position it leaks a lot of oil and makes a huge mess. Ruined our driveway, our clothes, and shoes as we lifted and held it to put on the boat. Not sure why this keeps happening. Not even sure how/why/where oil could even get out? Cap is on tight. Engine works fine, but oil keeps coming out after stores on its side.
Steve P. Recommends This
Was this review helpful?
Expert Response
First and foremost, thank you for your purchase. We appreciate you taking the time to provide us with your feedback, and we can certainly understand your aggravation. We will forward your review to the manufacturer, informing them of the situation. We do recommend you contact Honda directly at Honda (770) 497-6400 to discuss and troubleshoot the issue. If they are unable to troubleshoot the issue over the phone they have Local Service Centers that can also assist you and apply the warranty for servicing the unit. If you have any issues, please get in touch with us.

We appreciate your business and apologize for any inconvenience.
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
5/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Easy To Use, Features, Reliable, Quiet
Cons:
Expensive, Leaks Oil After Stored On Its Side.
Would Not Run
By Ken B.
California
Review Posted 08/17/2022
Finally got it started and it ran for about 10 minutes...cut it down to see tool speed and the engine coughed and quit. Would not start again. The motor is now in the shop in Sacramento for warranty work. Purchased the engine because I had had really good luck with Honda motors/equipment. Not real happy at this point.
Ken B. Does Not Recommend This
Was this review helpful?
Expert Response
First and foremost, thank you for your purchase. We appreciate you taking the time to provide us with your feedback, and we can certainly understand your aggravation. We will forward your review to the manufacturer, informing them of the situation.

We appreciate your business and apologize for any inconvenience.
Dale, the Power Equipment Expert
Dale V.
Power Equipment Expert
Rating Breakdown
Features
1/5
icon-review-marker
Quality
1/5
icon-review-marker
Performance
1/5
icon-review-marker
Value
1/5
icon-review-marker
Cons:
Bad Instructions
