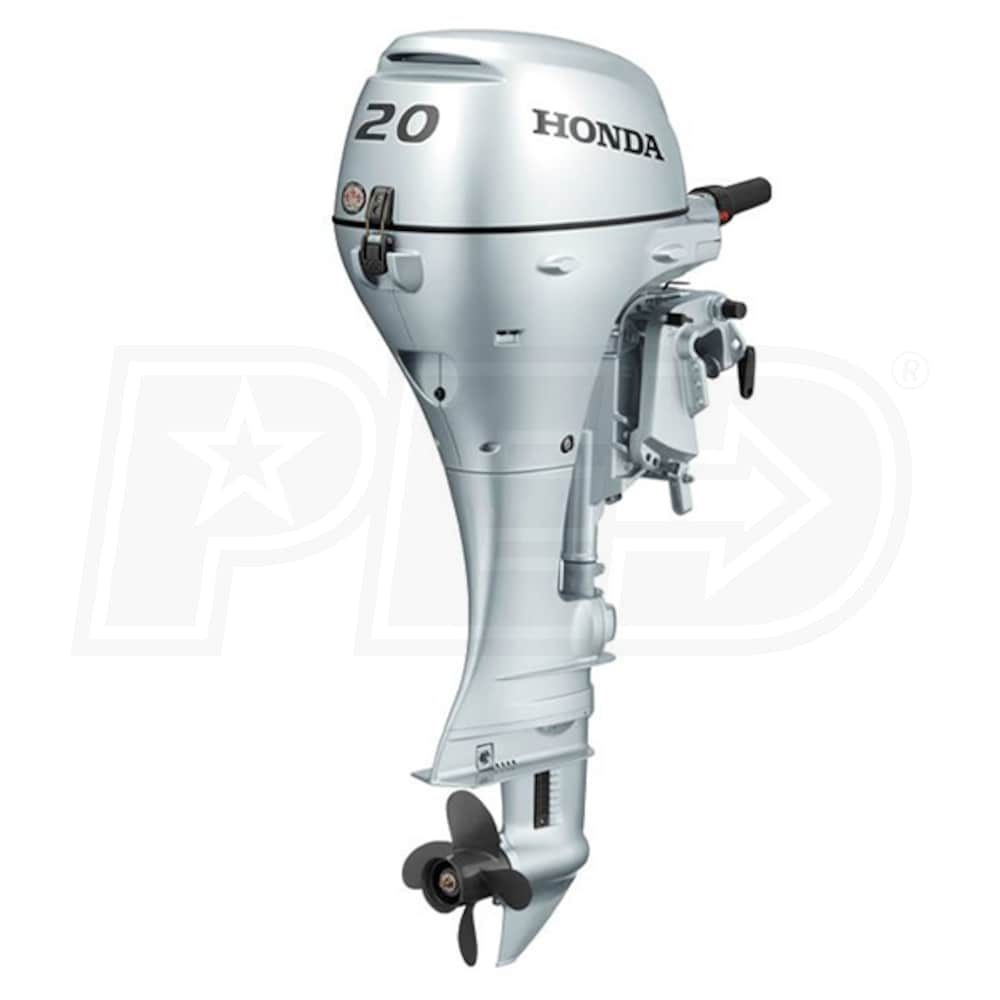

Honda 20 HP (15") Shaft Gas Powered Outboard Motor
Honda 20 HP (15") Shaft Gas Powered Outboard Motor
+
Share This Product
-
Product Description
-
3Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
Product Description
+−
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Portable 20 HP Powerhouse
- Quiet, reliable, fuel efficient, and loaded with features
- 4-stroke design for superior fuel efficiency, with no oil mixing
- 21.4 cubic inch displacement - one of the largest in its class
- Microprocessor controls ignition and RPM range for optimal operation
- Easy one hand starting
- Great for smaller 12 to 16 foot boats
- Manual Tilt
- Longer tiller handle improves control and reduces steering effort
- Front-mounted shift control allows fingertip shifting
- Twist Grip Throttle & Tensioner minimizes driver fatigue
- Charging System
- 6-Amp alternator
- Has a full throttle RPM range of 5,000-6,000
- Belt-driven system keeps batteries charged and going all day long
- Engine Alert System
- Protects the engine from severe damage
- Alerts you to check the engine due to low oil, over-revving and overheating

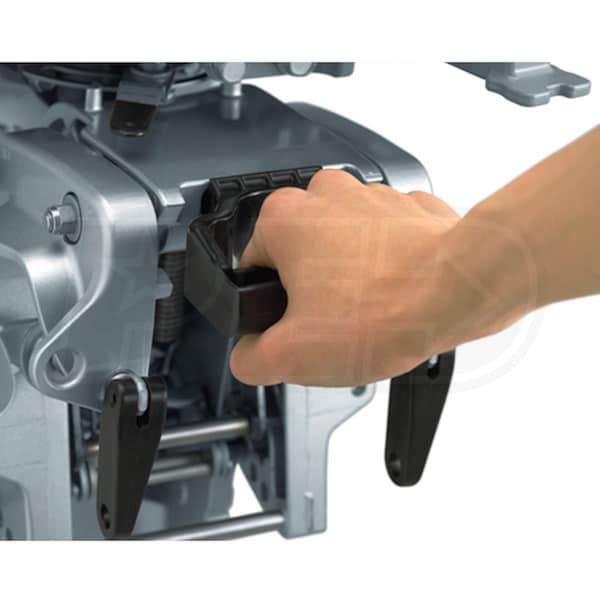

- Integrated Carrying Handle
- Makes transporting the engine a breeze
- Transferable, Non-Declining 5 Year Warranty!
Specifications
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Honda
Engine Type
4-Stroke SOHC
Cylinder Count
2 Cylinder
Horsepower
20
Engine Displacement
350 CCs
Bore & Stroke
2.3 x 2.5 Inches
Full Throttle RPM Range
5,000-6,000
Starting System
Recoil
Charging System
6-Amp (76 watt)
Cooling System
Water Cooled
Ignition System
Programmed Ignition System
Exhaust System
Through Hub
Power Tilt
No
Power Thrust
No
External Fuel Tank
Included
Power Trim
No
Fuel
Unleaded 86 octane
Fuel Tank Capacity
3 US gal Aux Tank
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Drive
Steering
Tiller
Gear Ratio
2.08:1
Gear Shift
F-N-R
Propeller Blades
4
Propeller Material
Aluminum
Transom Height
15 Inches
Overview
Weight
104 Pounds
Made in USA
No
Consumer Warranty
5 Years
UPC
786102005777
Additional Model Numbers
BF20D3SH, BF20D3SH
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Portable 20 HP Powerhouse
- Quiet, reliable, fuel efficient, and loaded with features
- 4-stroke design for superior fuel efficiency, with no oil mixing
- 21.4 cubic inch displacement - one of the largest in its class
- Microprocessor controls ignition and RPM range for optimal operation
- Easy one hand starting
- Great for smaller 12 to 16 foot boats
- Manual Tilt
- Longer tiller handle improves control and reduces steering effort
- Front-mounted shift control allows fingertip shifting
- Twist Grip Throttle & Tensioner minimizes driver fatigue
- Charging System
- 6-Amp alternator
- Has a full throttle RPM range of 5,000-6,000
- Belt-driven system keeps batteries charged and going all day long
- Engine Alert System
- Protects the engine from severe damage
- Alerts you to check the engine due to low oil, over-revving and overheating
- Integrated Carrying Handle
- Makes transporting the engine a breeze
- Transferable, Non-Declining 5 Year Warranty!
Specifications
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Honda
Engine Type
4-Stroke SOHC
Cylinder Count
2 Cylinder
Horsepower
20
Engine Displacement
350 CCs
Bore & Stroke
2.3 x 2.5 Inches
Full Throttle RPM Range
5,000-6,000
Starting System
Recoil
Charging System
6-Amp (76 watt)
Cooling System
Water Cooled
Ignition System
Programmed Ignition System
Exhaust System
Through Hub
Power Tilt
No
Power Thrust
No
External Fuel Tank
Included
Power Trim
No
Fuel
Unleaded 86 octane
Fuel Tank Capacity
3 US gal Aux Tank
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Drive
Steering
Tiller
Gear Ratio
2.08:1
Gear Shift
F-N-R
Propeller Blades
4
Propeller Material
Aluminum
Transom Height
15 Inches
Overview
Weight
104 Pounds
Made in USA
No
Consumer Warranty
5 Years
UPC
786102005777
Additional Model Numbers
BF20D3SH, BF20D3SH
Product Specs
+−
Specifications
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Honda
Engine Type
4-Stroke SOHC
Cylinder Count
2 Cylinder
Horsepower
20
Engine Displacement
350 CCs
Bore & Stroke
2.3 x 2.5 Inches
Full Throttle RPM Range
5,000-6,000
Starting System
Recoil
Charging System
6-Amp (76 watt)
Cooling System
Water Cooled
Ignition System
Programmed Ignition System
Exhaust System
Through Hub
Power Tilt
No
Power Thrust
No
External Fuel Tank
Included
Power Trim
No
Fuel
Unleaded 86 octane
Fuel Tank Capacity
3 US gal Aux Tank
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Drive
Steering
Tiller
Gear Ratio
2.08:1
Gear Shift
F-N-R
Propeller Blades
4
Propeller Material
Aluminum
Transom Height
15 Inches
Overview
Weight
104 Pounds
Made in USA
No
Consumer Warranty
5 Years
UPC
786102005777
Additional Model Numbers
BF20D3SH, BF20D3SH
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Dale, the Power Equipment Expert
+−
Does any honda20hp 15"short shaft,electric start have side mount stik steering an side mount controls.do not want tiller steering. Looking for motor that adapts to stick steering.
Judy. Price
from Georgia
July 01, 2016
Answer
Good Afternoon,
You will need the following:
Engine BF20D3SRT
Control Box 24800-ZY1-876 "Which we do not stock"
Most of the stick steering systems I have seen all use a standard steering cable and engine hookup. Which means they should work with any remote model engine.
Thank you
You will need the following:
Engine BF20D3SRT
Control Box 24800-ZY1-876 "Which we do not stock"
Most of the stick steering systems I have seen all use a standard steering cable and engine hookup. Which means they should work with any remote model engine.
Thank you
