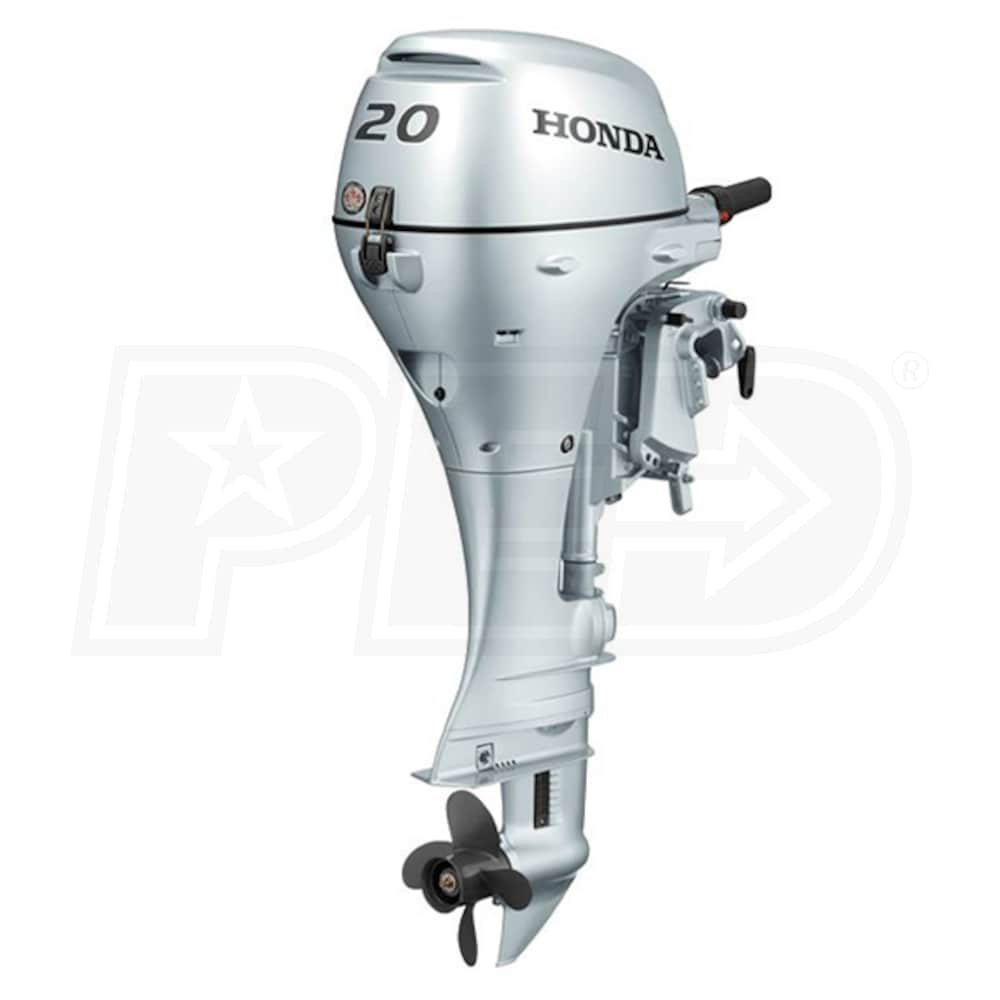

Honda 20 HP (20") Shaft Outboard Motor w/ Electric Start, Power Tilt
Model:
BF20D3LHT
+
Share This Product
Features

Honda 20 HP (20") Shaft Outboard Motor w/ Electric Start, Power Tilt
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Portable 20 HP Powerhouse
- Quiet, reliable, fuel efficient, and loaded with features
- 4-stroke design for superior fuel efficiency, with no oil mixing
- 21.4 cubic inch displacement - one of the largest in its class
- Microprocessor controls ignition and RPM range for optimal operation
- Electric start for ease of starting the engine without pulling or fussing
- Great for smaller 12 to 16 foot boats
- High Output Charging - More Power
- Largest alternator in its class
- Generates 12 Amps at only 3000 RPM
- Has a full throttle RPM range of 5,000-6,000
- Maintains battery charge and keeps electronics running at trolling speeds
- Power Tilt
- Tilt the motor up with a touch of a button for operation in shallow areas
- Engine Alert System
- Protects the engine from severe damage

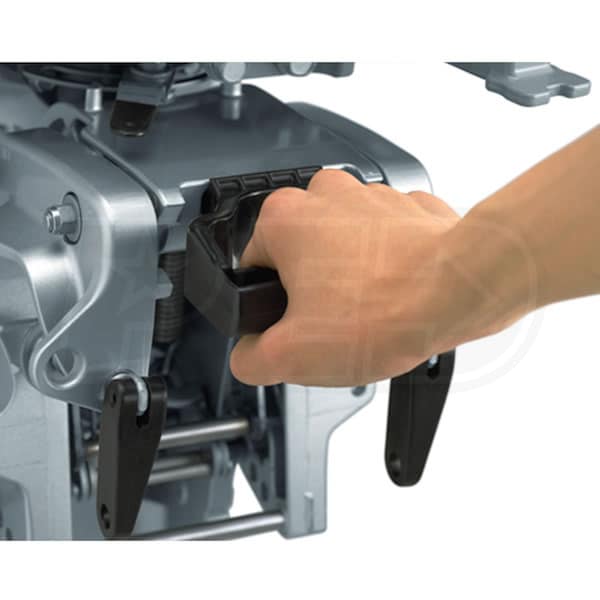

- Integrated Carrying Handle
- Makes transporting the engine a breeze
- Transferable 3 Year Warranty for Residential Users
- 1 Year Warranty for Commercial and Rental Companies
- 1 Year Warranty for Government Agencies
- The motor is NOT capable of remote operation, tiller handle control use ONLY
- ***State Registrations Take 2-3 Weeks To Arrive After Request***
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
BF20D3LHT

General Information
Product Category
Outboard Motor
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Honda
Engine Type
4-Stroke SOHC
Cylinder Count
2 Cylinder
Horsepower
20
Engine Displacement
350 CCs
Bore & Stroke
2.3 x 2.5 Inches
Full Throttle RPM Range
5,000-6,000
Starting System
Recoil w/ Electric Start
Charging System
12-Amp (148 watt)
Cooling System
Water Cooled
Ignition System
Programmed Ignition System
Exhaust System
Through Hub
Power Tilt
Yes
Tilt Range
72 °
Power Thrust
No
External Fuel Tank
Included w/ Fuel Hose
Power Trim
No
Fuel
Unleaded 86 octane
Fuel Tank Capacity
3 US gal Aux Tank
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Engine Oil Capacity
1.2 US qt. (38.4 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
2.08:1
Gear Shift
F-N-R
Propeller Blades
4
Propeller Material
Aluminum
Transom Height
20 Inches
Overview
Product Category
Outboard Motor
Weight
129 Pounds
Made in USA
No
Consumer Warranty
5 Years
UPC
786102005807
Additional Model Numbers
BF20D3LHT, BF20D3LHT
Reviews
(4)
Honda Marine BF20D3LHT Reviews & Ratings
Good Motor
By Joseph F.
Kansas
Review Posted 08/03/2022
I am happy with my purchase.
Joseph F. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Easy To Use
Cons:
Expensive

Do Over
By Shayne C.
Yuma, Arizona
Purchased 10/14/2020 |
Review Posted 12/16/2020
I originally bought this same motor this spring, but without an electric start or power tilt. I was going to keep it simple. Well, my motor, which was going to last me the rest of my life, was ruined when I was rear-ended on the way back from the lake.
So, I was given a second chance to make a choice. After weighing all the other brands, I decided to go with the same motor but with the electric upgrades. They really do make life simpler. I am actually glad I got a second chance to make the right decision.
No more second-guessing. Hopefully, this is the motor that will last my lifetime.
So, I was given a second chance to make a choice. After weighing all the other brands, I decided to go with the same motor but with the electric upgrades. They really do make life simpler. I am actually glad I got a second chance to make the right decision.
No more second-guessing. Hopefully, this is the motor that will last my lifetime.
Shayne C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, High Quality, Easy To Use, Reliable

Had Trouble Right Out Of The Box
By Russell S.
Gentry, Arkansas
Purchased 05/31/2017 |
Review Posted 07/13/2017
There were two issues with my purchase. First the water pump was shelled out straight out of the box. It was repaired at no cost to me, which was only fair on a new motor. Second I ordered a short shaft motor and was sent a long shaft motor. I had to purchase a transom extension to make it work. I own several Honda powered pieces of equipment and stand behind their motors. Just would have been a better experience if the water pump would have been right and the shaft would have been the right length.
Russell S. Recommends This
Was this review helpful?
Rating Breakdown
4/5
3/5
1/5
4/5
Pros:
Features, Quiet, High Quality, I'd Buy It Again

Very Satisfied With The Honda Outboard Motor
By Jason J.
Richmond, Minnesota
Purchased 06/05/2017 |
Review Posted 06/26/2017
Bought this motor to re power a '86 14ft Lund pro pike. It does the job may, need a little better prop. Needs just a little more to get to plane a little quicker. Once planed out, performs like the old merc it replaced, but has all of the features that the old one never had.
Jason J. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
Pros:
Durable, Features, Quiet, High Quality
Cons:
Bad Instructions
