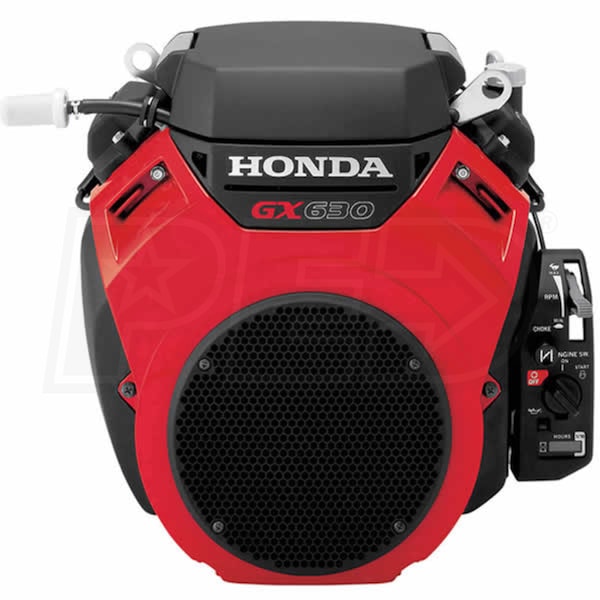

Honda GX630™ 688cc V-Twin OHV Electric Start Horizontal Engine, 2.7A Charg, Oil Alert, Auto Throttle, Tapered 1" Crankshaft

Model:

GX630RVXE2

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Honda GX630™ 688cc V-Twin OHV Electric Start Horizontal Engine, 2.7A Charg, Oil Alert, Auto Throttle, Tapered 1
Honda GX630™ 688cc V-Twin OHV Electric Start Horizontal Engine, 2.7A Charg, Oil Alert, Auto Throttle, Tapered 1" Crankshaft
Model: GX630RVXE2
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# GX630RVXE2 - 1" Tapered Shaft, 2.7A Charging, Control Box
  • 3-Year Consumer & 3-Year Commercial Warranty
  • Auto Throttle for improved fuel economy in generator applications
  • Honda GX630™ Commercial V-Twin Air-Cooled 4-Cycle Gas Engine
  • Produces 35.6 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • V-Twin Technology w/ Hemispherical Combustion Chamber
  • High-compression ratio engineering for maximum power
  • Extremely effieient high power output, without having to use Premium Fuel
  • Honda's Variable Timing Digital CDI Ignition
  • RPM based design, with built-in rev-limiter, optimizes ignition timing
  • Easier starting, more power, less fuel use and reduced emissions
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • High-Capacity Oil Pump w/ Spin-On Filter & ** Oil Filter Extension**
  • Provides full pressure lubrication to the flywheel, PTO & connecting-rod bearings
  • Two Barrel Butterfly-Valve Inner-Vent Carburetor & Built-In Fuel Pump
  • Optimizes air/fuel ratio for proven fuel efficiency
  • Large Diameter Air Intake & High Capacity 36-Blade Cooling Fan
  • Increase the cooling performance while reducing noise
  • Forged Steel Crankshaft & Aluminum Pushrods w/ Steel Tips
  • Integrated Cylinder/head for less weight, lower vibration, & quieter operation
  • 12V (Shift Type) Electric Starter (Cables Not Included)
  • Automatic mechanical decompression system improves starting performance
  • Control Box w/ Choke & Key Start & 2.7-Amp Charging System
  • Note - GX V-Twin Series Engines - Fuel Tank & Muffler Not Included
  • EPA & CARB Compliant - No Catalyst Required

Specifications

GX630RVXE2
specs product image PID-66397
Engine
Engine Series
Honda V-Twin Commerical
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
96.8 Lbs
CC
688 CCs
HP
20.8 HP
Net Torque
35.6 Lbs
Cylinder Bore Type
Aluminum
Bore
3.10 Inches
Compression Ratio
9.3:1
Stroke
2.80 Inches
Systems
Ignition System
Digital CDI w/ Variable Timing
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
67 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 2-29/32 Inch
Crankshaft Type
Tapered
Crankshaft Diameter
1"
Crankshaft Length
2-29/32"
Crankshaft End Tapped Size
3/8-24
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Weight
110 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
15.9" Inches
Product Width
16.1" Inches
Product Height
17.2" Inches
