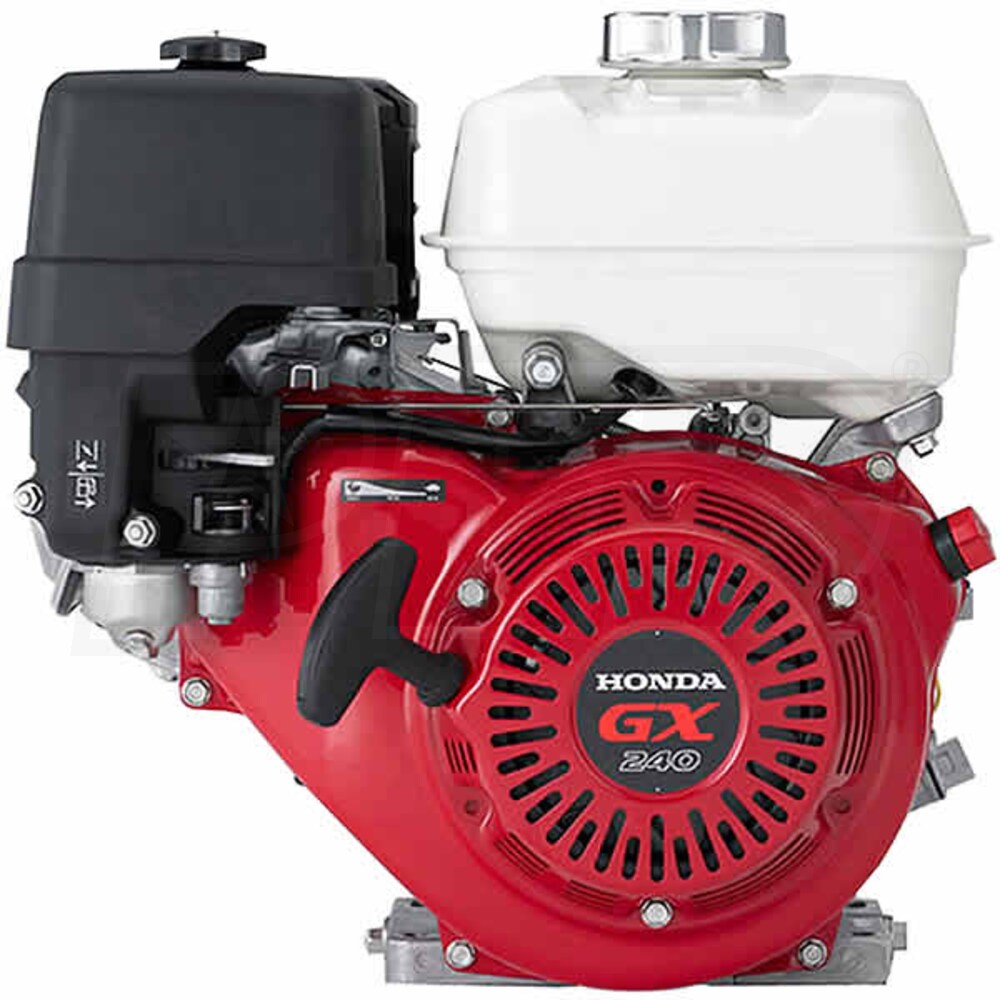

Honda GX240™ 270cc OHV Horizontal Engine, Oil Alert System, 1" x 3-31/64" Crankshaft

Honda GX240™ 270cc OHV Horizontal Engine, Oil Alert System, 1" x 3-31/64" Crankshaft
Model: GX240UT2QA2
$609.99
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Factory-Direct
Ships in 4-7 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# GX240UT2QA2 - Oil Alert System, 1" x 3-31/64; Crankshaft
  • 3-Year Consumer & 3-Year Commercial Warranty
  • Great for chippers, shredders, pressure washers and air compressors
  • Honda GX240™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 13.5 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Variable Timing Digital CDI Ignition
  • RPM based design, with built-in rev-limiter, optimizes ignition timing
  • Easier starting, more power, less fuel use and reduced emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Re-designed camshaft & muffler reduce overall engine noise by up to 5 dB
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes 1.4-Gallon Metal Fuel Tank w/ Sediment-Screen
  • 50-State Engine, EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
66 Lbs
CC
270 CCs
HP
7.9 HP
Net Torque
13.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.00 Inches
Stroke
2.30 Inches
Compression Ratio
8.5
Systems
Starting System
Recoil Only
Ignition System
Digital CDI w/ Variable Timing
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
38 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1.4 Gallons
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-31/64 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-31/64"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Made in USA
No
Product Length
15 Inches
Product Width
16.9 Inches
Product Height
16.6 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years

Features
Features
  • Model# GX240UT2QA2 - Oil Alert System, 1" x 3-31/64; Crankshaft
  • 3-Year Consumer & 3-Year Commercial Warranty
  • Great for chippers, shredders, pressure washers and air compressors
  • Honda GX240™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 13.5 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Variable Timing Digital CDI Ignition
  • RPM based design, with built-in rev-limiter, optimizes ignition timing
  • Easier starting, more power, less fuel use and reduced emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Re-designed camshaft & muffler reduce overall engine noise by up to 5 dB
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes 1.4-Gallon Metal Fuel Tank w/ Sediment-Screen
  • 50-State Engine, EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
66 Lbs
CC
270 CCs
HP
7.9 HP
Net Torque
13.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.00 Inches
Stroke
2.30 Inches
Compression Ratio
8.5
Systems
Starting System
Recoil Only
Ignition System
Digital CDI w/ Variable Timing
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
38 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1.4 Gallons
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-31/64 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-31/64"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Made in USA
No
Product Length
15 Inches
Product Width
16.9 Inches
Product Height
16.6 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Specs
+
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
66 Lbs
CC
270 CCs
HP
7.9 HP
Net Torque
13.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.00 Inches
Stroke
2.30 Inches
Compression Ratio
8.5
Systems
Starting System
Recoil Only
Ignition System
Digital CDI w/ Variable Timing
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
38 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1.4 Gallons
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-31/64 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-31/64"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Made in USA
No
Product Length
15 Inches
Product Width
16.9 Inches
Product Height
16.6 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Reviews
+
This product has no reviews.
Be the first to voice your opinion on this Honda Engines product.
Product Q&A
(1)
+
I need a replacement for my existing engine. Can you confirm if this is a like for like replacement of: GX240 QA2X GC04-3648633 What's the difference between 2QA2 and QA2X? I need to mount this and be sure the shaft height, length, etc. are in the correct geometry as the existing engine.
Lucas P.
from Indiana
September 05, 2016
Read Response +
Answer
The 2QA2 would be your direct replacement. I believe you are confusing the "X" with an asterisk (*). Honda uses these as place holders and they have no meaning what so ever in that they are exactly what they are supposed to be, a place holder. The "2" in front of the QA2 is just an internal update made by Honda, so the GX240UT2QA2 would be your direct replacement. It should be a one for one swap.
Hide Response -
How-To Articles
+
