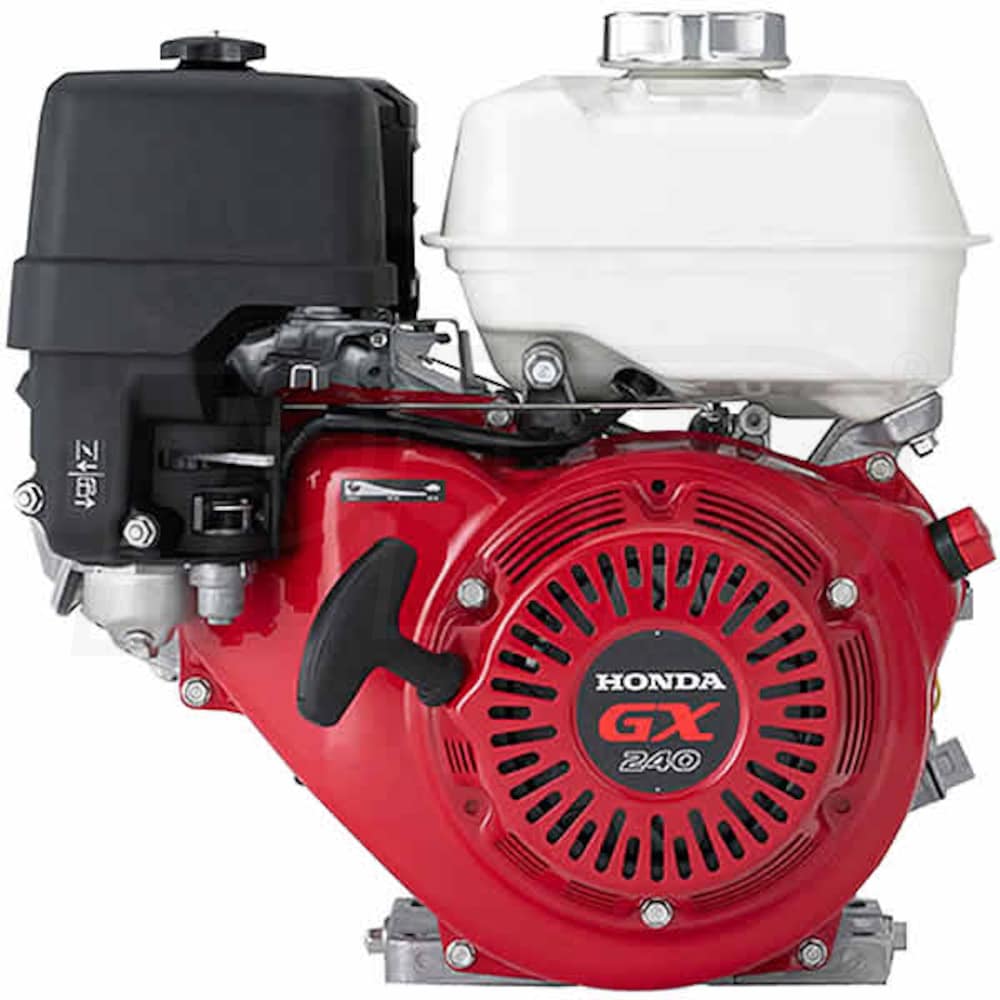

Honda GX240™ 270cc OHV 6:1 Gear Reduction (No Clutch) Horizontal Engine, Oil Alert, 1" x 3-5/32" Crankshaft

Honda GX240™ 270cc OHV 6:1 Gear Reduction (No Clutch) Horizontal Engine, Oil Alert, 1" x 3-5/32" Crankshaft
Our Price
Compare Prices
Shipping Info
Model: GX240UT2HA2
$774.99
Only 1 In-Stock
Ships Tuesday, Dec 11th
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Only 1 In-Stock
Ships Tuesday, Dec 11th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# GX240UT2HA2 - Oil Alert System, 1" x 3-5/32" Crankshaft
  • 3-Year Consumer & 3-Year Commercial Warranty
  • **NOTE** 6:1 Gear Reduction (No Clutch); For Cement Mixers & other equipment where gear reduction is required
  • Honda GX240™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 13.5 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Variable Timing Digital CDI Ignition
  • RPM based design, with built-in rev-limiter, optimizes ignition timing
  • Easier starting, more power, less fuel use and reduced emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Re-designed camshaft & muffler reduce overall engine noise by up to 5 dB
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes 1.4-Gallon Metal Fuel Tank w/ Sediment-Screen
  • 50-State Engine, EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
66 Lbs
CC
270 CCs
HP
7.9 HP
Net Torque
13.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.00 Inches
Stroke
2.30 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Digital CDI w/ Variable Timing
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
38 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1.4 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
6:1 Red.(no clutch)1 x 3-5/32 Inches
Crankshaft Type
6:1 Gear Reduction
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Made in USA
No
Weight
70 Pounds
Product Length
15" Inches
Product Width
16.9" Inches
Product Height
16.6" Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years

Features
Features
  • Model# GX240UT2HA2 - Oil Alert System, 1" x 3-5/32" Crankshaft
  • 3-Year Consumer & 3-Year Commercial Warranty
  • **NOTE** 6:1 Gear Reduction (No Clutch); For Cement Mixers & other equipment where gear reduction is required
  • Honda GX240™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 13.5 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Variable Timing Digital CDI Ignition
  • RPM based design, with built-in rev-limiter, optimizes ignition timing
  • Easier starting, more power, less fuel use and reduced emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Re-designed camshaft & muffler reduce overall engine noise by up to 5 dB
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes 1.4-Gallon Metal Fuel Tank w/ Sediment-Screen
  • 50-State Engine, EPA & CARB Compliant
