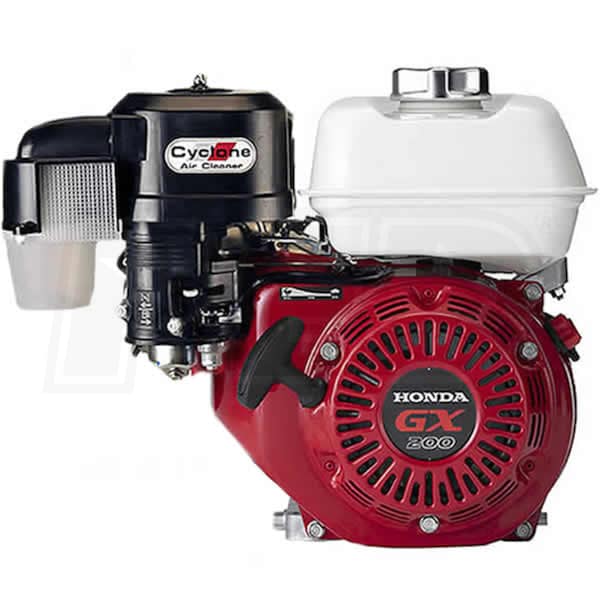

Honda GX200™ 196cc OHV Horizontal Engine w/ Cyclone Air Filter, Oil Alert System, 3/4" x 2-7/16" Crankshaft

Honda GX200™ 196cc OHV Horizontal Engine w/ Cyclone Air Filter, Oil Alert System, 3/4" x 2-7/16" Crankshaft
Our Price
Compare Prices
Shipping Info
Model: GX200UT2QXC9
$579.99

Only 1 In-Stock
Ships Friday, Dec 13th
Shipping Crate Icon
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Only 1 In-Stock
Ships Friday, Dec 13th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# GX200UT2QXC9 - Cyclone Air Filter, Oil Alert®, 3/4 x 2-7/16" Crankshaft
  • 3-Year Consumer & 3-Year Commercial Warranty
  • Great for log splitters, air compressors, pressure washers & areas with high levels of dust & dirt
  • Honda GX200™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 9.10 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Cyclone Air Filter - For Rugged & Dusty Environments
  • High particulate removal efficiency while providing 3X longer maintenance invervals
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Lightweight noise-reducing materials plus intake/exhaust improvements
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes .825-Gallon Metal Fuel Tank w/ Sediment-Screen
  • EPA & CARB Compliant
Specifications
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
35 Lbs
CC
196 CCs
HP
5.5 HP
Net Torque
9.1 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Compression Ratio
8.5:1
Stroke
2.1 Inches
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank Size
.825 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-7/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
41 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
12.6" Inches
Product Width
14.8" Inches
Product Height
13.6" Inches
