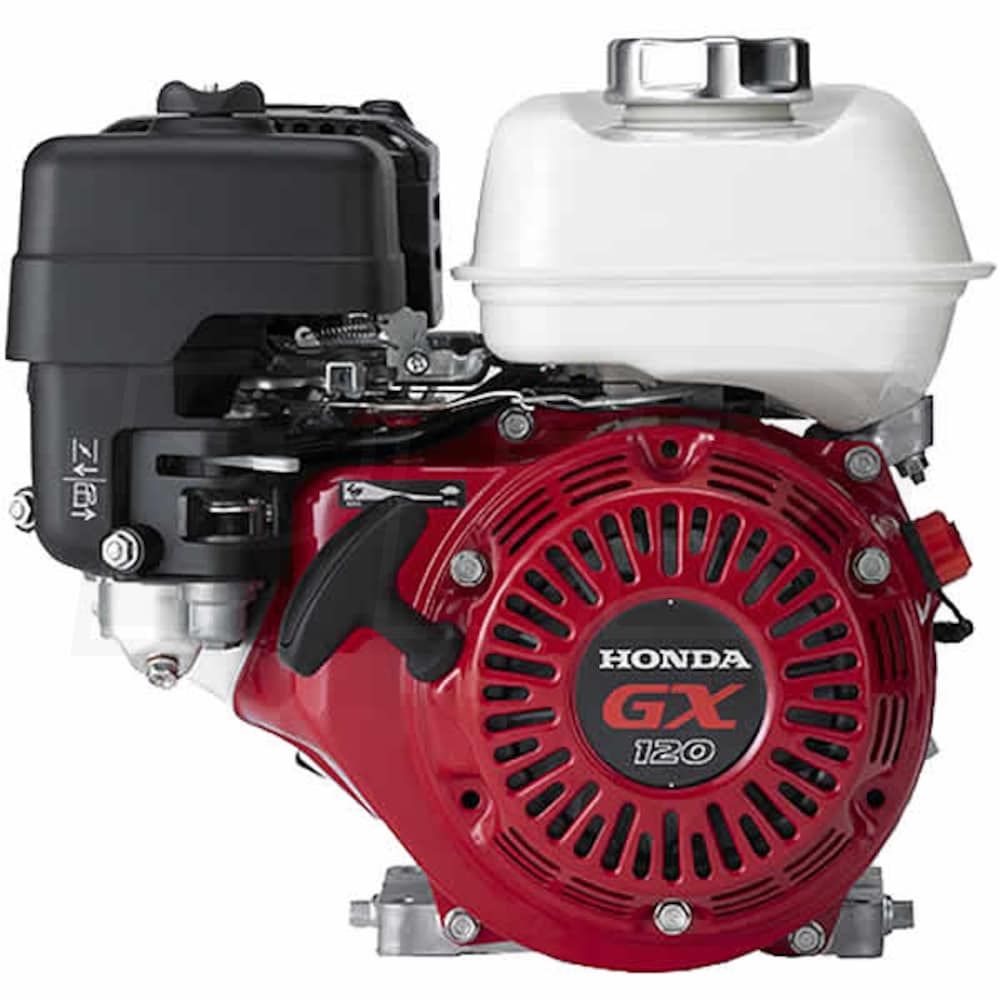

Honda GX120™ 118cc OHV Horizontal Engine, 6:1 Gear Reduction, Oil Alert System, 3/4" x 1.97" Crankshaft

Model:

GX120UT3HX2

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Honda GX120™ 118cc OHV Horizontal Engine, 6:1 Gear Reduction, Oil Alert System, 3/4
Honda GX120™ 118cc OHV Horizontal Engine, 6:1 Gear Reduction, Oil Alert System, 3/4" x 1.97" Crankshaft
Model: GX120UT3HX2
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Model# GX120UT2HX2 - Oil Alert® System, 3/4 x 1.97" Crankshaft
  • 3-Year Consumer & 3-Year Commercial Warranty
  • *Note 6:1 Gear Reduction, For cement mixers and pumps
  • Honda GX120™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 5.4 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Lightweight noise-reducing materials plus intake/exhaust improvements
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes .525-Gallon Metal Fuel Tank w/ Sediment-Screen
  • EPA & CARB Compliant
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

GX120UT3HX2
specs product image PID-66348
Engine
Engine Series
Honda GX
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
29 Lbs
CC
118 CCs
HP
3.5 HP
Net Torque
5.4 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.4 Inches
Compression Ratio
8.5:1
Stroke
1.7 Inches
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
18.87 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.525 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
*6:1 Gear Reduction) 3/4 x 1.97 Inches
Crankshaft Type
6:1 Gear Reduction
Crankshaft Diameter
3/4"
Crankshaft Length
1.97"
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
11.7" Inches
Product Width
13.6" Inches
Product Height
13.0" Inches
Additional Model Numbers

GX120UT2HX2, GX120UT3HX2
